CIESC Journal ›› 2025, Vol. 76 ›› Issue (3): 1102-1110.DOI: 10.11949/0438-1157.20240946
• Process system engineering • Previous Articles Next Articles
Duankanghui YANG(), Wenjin ZHOU, Linlin LIU(
)
Received:
2024-08-22
Revised:
2024-09-12
Online:
2025-03-28
Published:
2025-03-25
Contact:
Linlin LIU
通讯作者:
刘琳琳
作者简介:
杨端康慧(2000—),女,硕士研究生,yangduankanghui@163.com.
基金资助:
CLC Number:
Duankanghui YANG, Wenjin ZHOU, Linlin LIU. Synthesis of hydrogen network considering group cascade layout of compressors[J]. CIESC Journal, 2025, 76(3): 1102-1110.
杨端康慧, 周文晋, 刘琳琳. 考虑压缩机分组级联布置的氢网络综合[J]. 化工学报, 2025, 76(3): 1102-1110.
流股 | 流量/(kmol·h-1) | 纯度/%(体积分数) | 压力/MPa |
---|---|---|---|
SR1 | 772.055 | 80.00 | 2.068 |
SR2 | 2712.453 | 80.00 | 8.274 |
SR3 | 2466.691 | 75.00 | 2.413 |
SR4 | 1154.347 | 75.00 | 2.758 |
SR5 | 357.138 | 70.00 | 2.413 |
SR6 | 171.346 | 65.00 | 1.379 |
SR7 | ≤3984.800 | 95.00 | 2.068 |
SK1 | 4163.369 | 86.70 | 13.790 |
SK2 | 3688.181 | 83.60 | 3.447 |
SK3 | 1747.534 | 32.60 | 4.137 |
SK4 | 556.527 | 74.90 | 3.447 |
SK5 | 255.475 | 72.70 | 2.068 |
SK6 | ≤105 | ≤100.00 | 1.379 |
Table 1 The flow data[34]

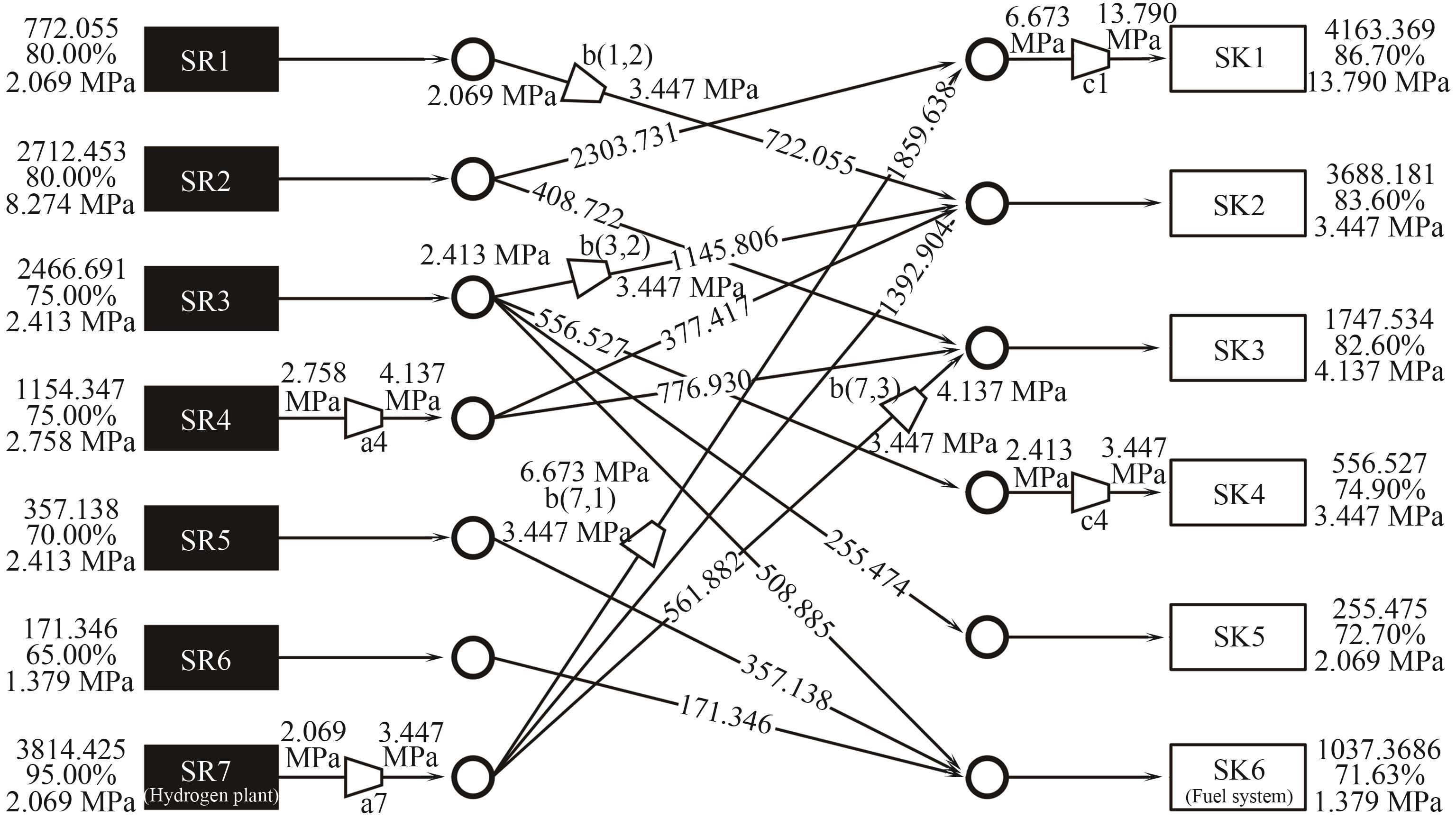

流股 | 流量/(kmol·h-1) | 纯度/%(体积分数) | 压力/MPa |
---|---|---|---|
SR1 | 772.055 | 80.00 | 2.068 |
SR2 | 2712.453 | 80.00 | 8.274 |
SR3 | 2466.691 | 75.00 | 2.413 |
SR4 | 1154.347 | 75.00 | 2.758 |
SR5 | 357.138 | 70.00 | 2.413 |
SR6 | 171.346 | 65.00 | 1.379 |
SR7 | ≤3984.800 | 95.00 | 2.068 |
SK1 | 4163.369 | 86.70 | 13.790 |
SK2 | 3688.181 | 83.60 | 3.447 |
SK3 | 1747.534 | 32.60 | 4.137 |
SK4 | 556.527 | 74.90 | 3.447 |
SK5 | 255.475 | 72.70 | 2.068 |
SK6 | ≤105 | ≤100.00 | 1.379 |
模型 | 公用工程流量/(kmol·h-1) | 求解时间/ s | 压缩机个数/个 | 压缩机功率/kW | 压缩机设备费用/(103 USD) | 压缩机操作费用/(103 USD) | 压缩机总费用/(103 USD) |
---|---|---|---|---|---|---|---|
基础模型 | 3814.425 | 1.2 | 9 | 7934.21 | 537.57 | 2085.11 | 2622.68 |
分组级联压缩机模型 | 3814.425 | ≥36000 | 8 | 7871.00 | 513.61 | 2068.50 | 2582.11 |
简化的分组级联压缩机模型 | 3814.425 | 6308.0 | 7 | 7888.02 | 492.42 | 2072.97 | 2565.40 |
Table 2 The comparison of optimization results of three modelling approaches
模型 | 公用工程流量/(kmol·h-1) | 求解时间/ s | 压缩机个数/个 | 压缩机功率/kW | 压缩机设备费用/(103 USD) | 压缩机操作费用/(103 USD) | 压缩机总费用/(103 USD) |
---|---|---|---|---|---|---|---|
基础模型 | 3814.425 | 1.2 | 9 | 7934.21 | 537.57 | 2085.11 | 2622.68 |
分组级联压缩机模型 | 3814.425 | ≥36000 | 8 | 7871.00 | 513.61 | 2068.50 | 2582.11 |
简化的分组级联压缩机模型 | 3814.425 | 6308.0 | 7 | 7888.02 | 492.42 | 2072.97 | 2565.40 |
