Effect of K-B-Al ternary system on the melting characteristics and glass structure of tailings

doi:10.11949/0438-1157.20240833

Abstract

Abstract:

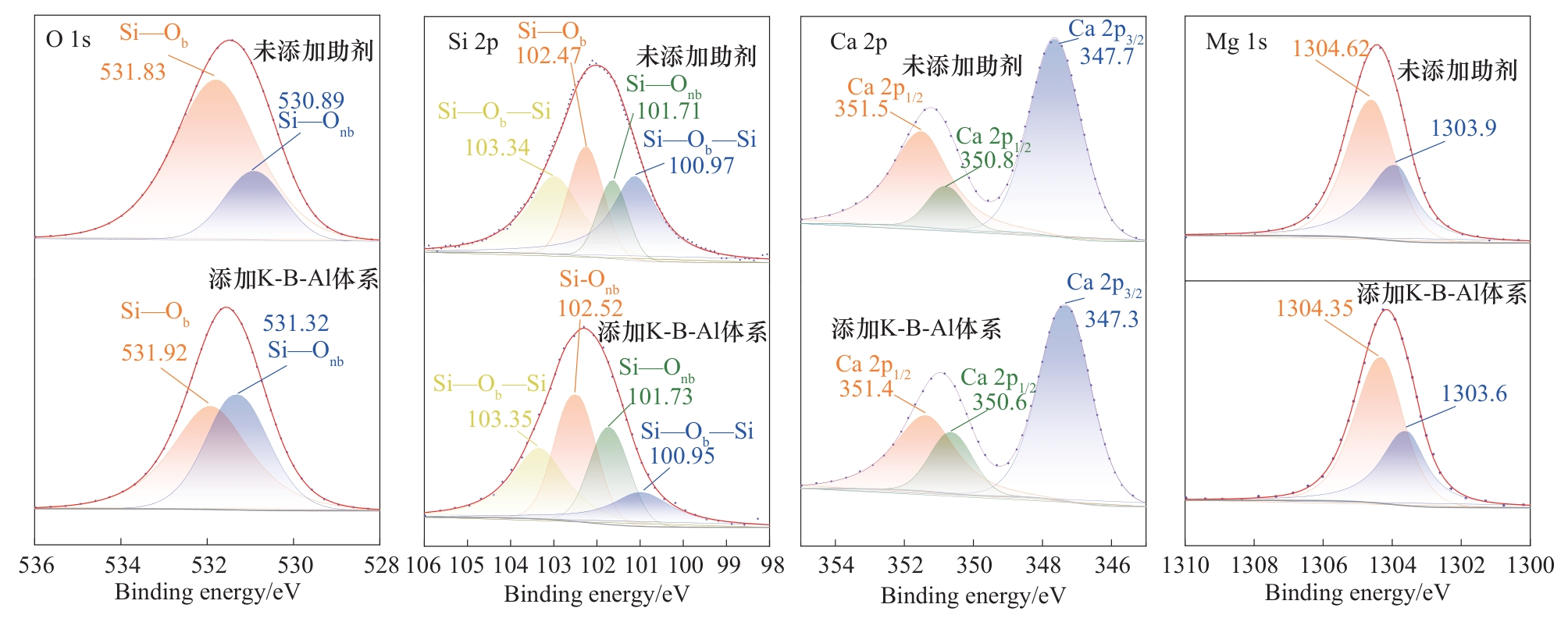

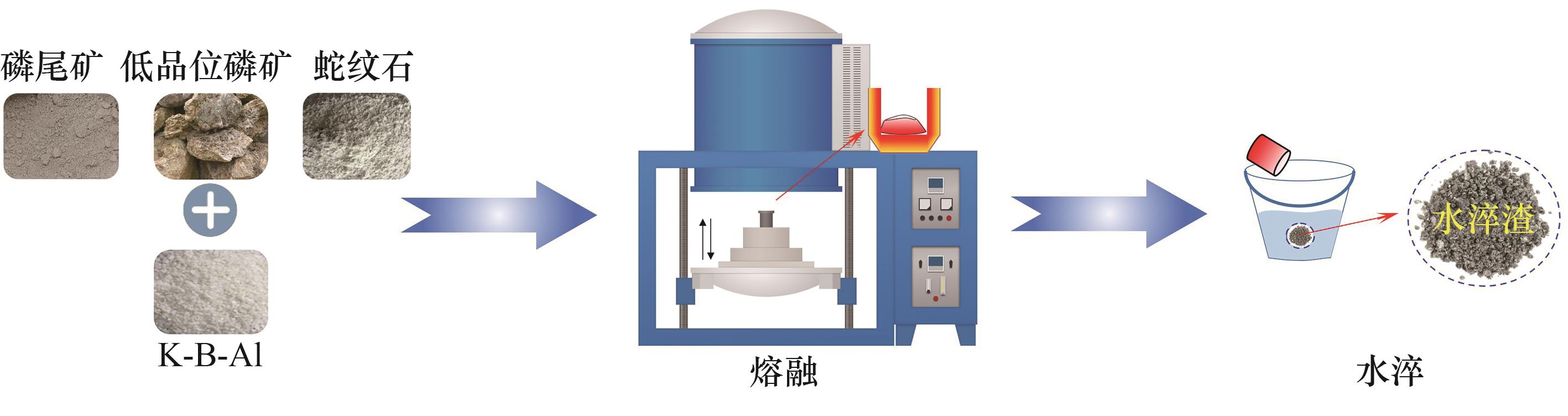

To solve the problem of phosphate tailings accumulation, this study uses phosphate tailings and low-grade phosphate rock as the main raw materials, B₂O₃, Al₂O₃, KCl and other additives, to activate phosphate tailings and low-grade phosphate ore through thermal processing and prepare glass fertilizer. The influence of K-B-Al system on the melting characteristics of phosphorus tailings system was investigated by single factor and response surface experiments. The influence of additives on the activation effect of elements and slag phase structure of molten products was discussed by combining X-ray diffraction (XRD), Fourier infrared spectroscopy (FTIR) and X-ray photoelectron spectroscopy (XPS). The results show that when the ratio of phosphorus tailings, low-grade phosphate rock, serpentine, KCl, B₂O₃ and Al₂O₃ is 55∶25∶20∶7∶10∶1.5, the lowest melt flow temperature T_F of the system is 1135℃, which is 335℃ lower than that of the conventional system. The activation rates of P₂O₅, CaO, and MgO in the glass fertilizer melted at 1350℃ are all about 95%. The effects of melting temperature and additives on the glass network structure of the material are analyzed. Under the selected process conditions, B₂O₃ mainly breaks the silicon oxygen network, while Al₂O₃ participates in the network composition and also destroys the silicon oxygen network.

Key words: phosphate tailings, glass ferilizer, silicon oxide structure, activation, waste treatment, optimal design

摘要：

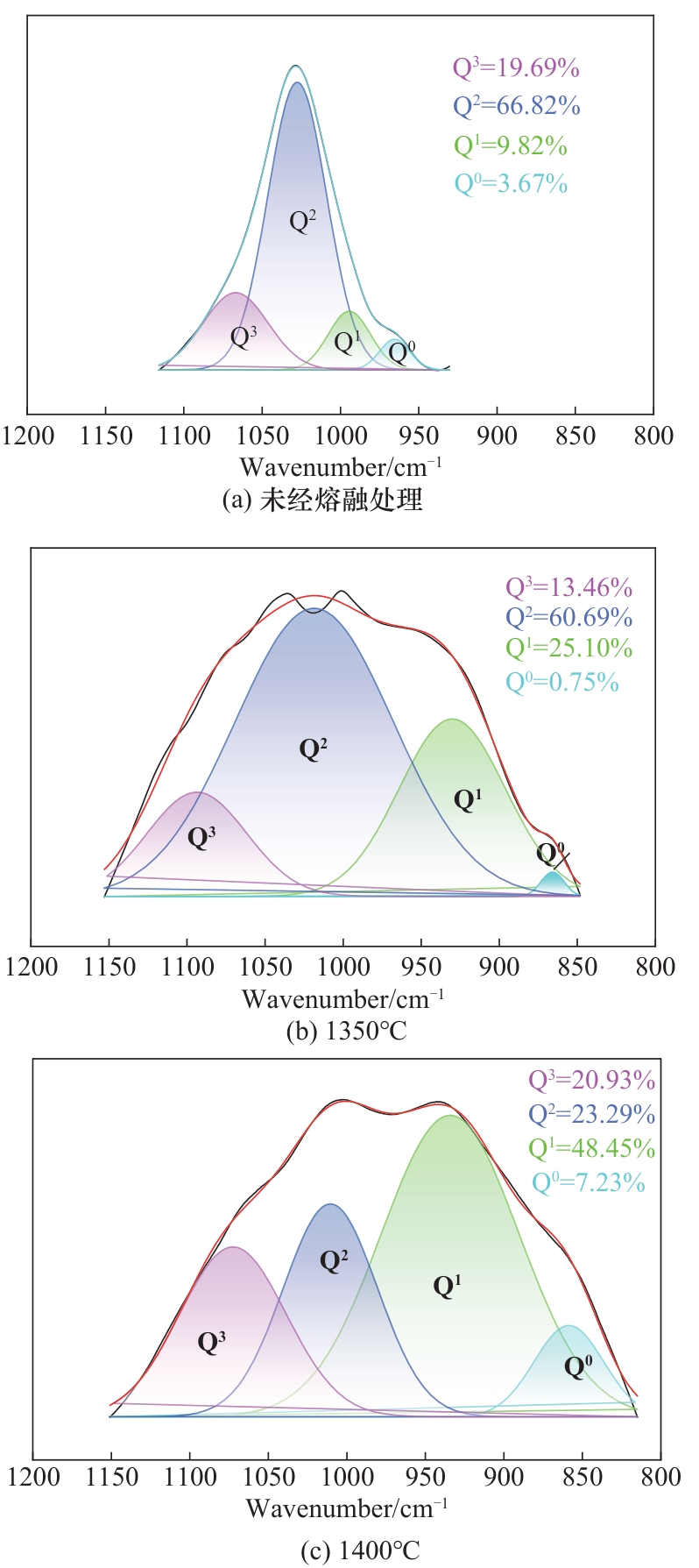

为解决磷尾矿的堆积问题，以磷尾矿和低品位磷矿为主要原料，以B₂O₃、Al₂O₃、KCl等为助剂，通过热法加工实现磷尾矿及中低品位磷矿的活化并制备玻璃肥料。通过单因素和响应曲面实验探究了K-B-Al体系对磷尾矿体系熔融特性的影响，结合X射线衍射（XRD）、傅里叶红外光谱（FTIR）、X射线光电子能谱仪（XPS）探讨了助剂添加对熔融产物元素活化效果和渣相结构的影响。结果表明，在磷尾矿、低品位磷矿、蛇纹石、KCl、B₂O₃、Al₂O₃配比为55∶25∶20∶7∶10∶1.5时，体系熔融流动温度T_F最低为1135℃，较常规体系降低335℃。在1350℃时熔融所得玻璃肥料P₂O₅、CaO、MgO活化率均达到95%左右。分析了熔融温度和助剂对物料玻璃网络结构的影响。在所选工艺条件下B₂O₃以断裂硅氧网络为主，Al₂O₃既参与网络组成，也破坏硅氧网络。

关键词: 磷尾矿, 玻璃肥料, 硅氧结构, 活化, 废物处理, 优化设计

CLC Number:

TQ 126.3

Zhongqing CHEN, Jiaxu LIU, Yanyu WANG, Hongquan JING, Cuihong HOU, Lingbo QU. Effect of K-B-Al ternary system on the melting characteristics and glass structure of tailings[J]. CIESC Journal, 2025, 76(3): 1323-1333.

陈仲卿, 刘家旭, 王艳语, 井红权, 侯翠红, 屈凌波. K-B-Al体系对磷矿熔融特性及玻璃结构的影响[J]. 化工学报, 2025, 76(3): 1323-1333.

Figures/Tables 17

References 32

1	林升鉴, 饶峰, 郑艳金, 等. 磷尾矿、磷石膏和黄磷渣的地质聚合反应资源化利用研究进展[J]. 矿产保护与利用, 2021, 41(4): 150-156.
	Lin S J, Rao F, Zheng Y J, et al. Research progress on resource utilization of phosphorus tailings, phosphogypsum and yellow phosphorous slag by geological polymerization[J]. Conservation and Utilization of Mineral Resources, 2021, 41(4): 150-156.
2	王保明, 王兴龙, 杨英, 等. 磷尾矿综合利用现状及研究进展[J]. 无机盐工业, 2024, 56(10): 1-11.
	Wang B M, Wang X L, Yang Y, et al. Current status and research progress of comprehensive utilization of phosphorus tailings[J]. Inorganic Chemicals Industry, 2024, 56(10): 1-11.
3	Sarswat P K, Singh R S, Pathapati S V S H. Real time electronic-waste classification algorithms using the computer vision based on convolutional neural network (CNN): enhanced environmental incentives[J]. Resources, Conservation and Recycling, 2024, 207: 107651.
4	Zeng L, Li X M, Liu J D. Adsorptive removal of phosphate from aqueous solutions using iron oxide tailings[J]. Water Research, 2004, 38(5): 1318-1326.
5	Cross A T, Lambers H. Young calcareous soil chronosequences as a model for ecological restoration on alkaline mine tailings[J]. Science of the Total Environment, 2017, 607: 168-175.
6	张亚丽, 侯翠红, 籍婷婷, 等. 热法制备含磷钾中微量元素肥料的实验研究[J]. 矿产综合利用, 2021(2): 185-191.
	Zhang Y L, Hou C H, Ji T T, et al. Experimental study on thermal process of preparing phosphorus potassium fertilizers containing medium and trace elements[J]. Multipurpose Utilization of Mineral Resources, 2021(2): 185-191.
7	Tang J W, Wang H B, Xu X C, et al. Glass structure of aluminosilicate containing phosphate with low chemical stability and complex component: development of glass structure model of aluminosilicate containing phosphate and manufacture of glass fertilizer[J]. Scientia Sinica Chimica, 2010, 40(7): 922-926.
8	Kiwsakunkran N, Chanthima N, Kaewkhao J, et al. Composition and structural studies of glass fertilizer[J]. Journal of Physics: Conference Series, 2018, 1120: 012016.
9	丁洪, 张玉树, 郑祥洲, 等. 玻璃肥料的研究与应用进展[J]. 现代化工, 2017, 37(3): 14-19, 21.
	Ding H, Zhang Y S, Zheng X Z, et al. A review on development and application of glassy fertilizer[J]. Modern Chemical Industry, 2017, 37(3): 14-19, 21.
10	Labbilta T, Ait-El-Mokhtar M, Abouliatim Y, et al. Innovative formulations of phosphate glasses as controlled-release fertilizers to improve tomato crop growth, yield and fruit quality[J]. Molecules, 2021, 26(13): 3928.
11	Zeng J L, Zhu H Z, Ding Y, et al. Effects of Al₂O₃ and B₂O₃ on the structural features of iron phosphate glasses[J]. Journal of Molecular Structure, 2022, 1261: 132928.
12	Sharmin N, Gu F, Ahmed I, et al. Compositional dependency on dissolution rate and cytocompatibility of phosphate-based glasses: effect of B₂O₃ and Fe₂O₃ addition[J]. Journal of Tissue Engineering, 2017, 8: 2041731417744454.
13	Sun L B, Liu C F, Fang J, et al. Crystallization behavior and thermal properties of B₂O₃-containing MgO-Al₂O₃-SiO₂-Li₂O glass-ceramic and its wettability on Si₃N₄ ceramic[J]. Journal of the European Ceramic Society, 2019, 39(4): 1532-1539.
14	徐美君, 杜念娟. 磷酸盐玻璃国内外发展概况[J]. 建材世界, 2009, 30(3): 53-57.
	Xu M J, Du N J. Phosphate glass development at home and abroad[J]. The World of Building Materials, 2009, 30(3): 53-57.
15	Ni H. Compositional dependence of alkali diffusivity in silicate melts: mixed alkali effect and pseudo-alkali effect[J]. American Mineralogist, 2012, 97(1): 70-79.
16	张璐. 化学组成对高碱铝硅酸盐玻璃微观结构影响作用规律研究[D]. 北京：北京工业大学, 2018.
	Zhang L. Effect of chemical composition on the microstructure of high alkali aluminosilicate glass[D]. Beijing: Beijing University of Technology, 2018.
17	元田委, 袁坚, 郑伟宏, 等. 碱金属氧化物引入量对MgO-Al₂O₃-SiO₂微晶玻璃结构及其化学增强效果的影响[J]. 硅酸盐通报, 2019, 38(5): 1522-1526, 1555.
	Yuan T W, Yuan J, Zheng W H, et al. Effect of the introduction of alkali metal oxides on the structure and chemical enhancement process of MgO-Al₂O₃-SiO₂ glass-ceramics[J]. Bulletin of the Chinese Ceramic Society, 2019, 38(5): 1522-1526, 1555.
18	Noritake F, Naito S. Mechanism of mixed alkali effect in silicate glass/liquid: pathway and network analysis[J]. Journal of Non-Crystalline Solids, 2023, 610: 122321.
19	Hou Y, Zhang G H, Chou K C. Mixed alkali effect in SiO₂-CaO-Al₂O₃-TiO₂-R₂O (R = Li, Na) glass ceramics[J]. Journal of Alloys and Compounds, 2021, 856: 158239.
20	范钧翔. 磷尾矿制备矿山复垦基质土及高温活化研究[D]. 郑州: 郑州大学, 2022.
	Fan J X. Study on preparation of mine reclamation matrix soil from phosphorus tailings and its high temperature activation[D]. Zhengzhou: Zhengzhou University, 2022.
21	Li L Y, Yao Y, Hou C H, et al. Preparation of multifunctional fused magnesium phosphate fertilizer from low-grade phosphate ores[M]//The Minerals, Metals & Materials Series. Cham: Springer International Publishing, 2021: 111-120.
22	Atta Mends E, Manka Tita A, Hussaini S, et al. Investigation of leaching of nickel sulfide flotation tailings to recover valuable metals[J]. Minerals Engineering, 2024, 212: 108716.
23	赵玥琪, 王亚琴, 张晨, 等. 铁尾矿/粉煤灰基地质聚合物的制备及微观结构分析[J]. 化工进展, 2024, 43(12): 7067-7077.
	Zhao Y Q, Wang Y Q, Zhang C, et al, Preparation and microstructure analysis of iron tailings/fly ash based geopolymers[J]. Chemical Industry and Engineering Progress, 2024, 43(12): 7067-7077.
24	Grice J V, Montgomery D C. Design and analysis of experiments[J]. Technometrics, 2000, 42(2): 208.
25	王义江, 孙莉, 刘梦涵, 等. 基于响应面法的矿用翅片管空冷器参数优化[J]. 化工学报, 2024, 75(1): 279-291.
	Wang Y J, Sun L, Liu M H, et al. Optimization on parameter of plate-fin-and-tube air cooler in mines based on response surface method[J]. CIESC Journal, 2024, 75(1): 279-291.
26	Jia R D, Deng L B, Yun F, et al. Effects of SiO₂/CaO ratio on viscosity, structure, and mechanical properties of blast furnace slag glass ceramics[J]. Materials Chemistry and Physics, 2019, 233: 155-162.
27	倪怀玮. 硅酸盐熔体的物理化学性质研究进展及其应用[J]. 科学通报, 2013, 58(10): 865-890.
	Ni H W. Advances and application in physicochemical properties of silicate melts[J]. Chinese Science Bulletin, 2013, 58(10): 865-890.
28	Bi Z S, Li K J, Jiang C H, et al. Effects of amphoteric oxide (Al₂O₃ and B₂O₃) on the structure and properties of SiO₂-CaO melts by molecular dynamics simulation[J]. Journal of Non-Crystalline Solids, 2021, 559: 120687.
29	He D F, Gao C, Pan J T, et al. Preparation of glass-ceramics with diopside as the main crystalline phase from low and medium titanium-bearing blast furnace slag[J]. Ceramics International, 2018, 44(2): 1384-1393.
30	曾麟, 黄守佳, 林鸿剑, 等. 混合碱效应对Li₂O-Al₂O₃-SiO₂系玻璃结构和热膨胀性能的影响[J]. 硅酸盐通报, 2021, 40(11): 3813-3821.
	Zeng L, Huang S J, Lin H J, et al. Influence of mixed alkali effect on structure and thermal expansion properties of Li₂O-Al₂O₃-SiO₂ glass[J]. Bulletin of the Chinese Ceramic Society, 2021, 40(11): 3813-3821.
31	王柯晴, 徐劼, 沈芷璇, 等. LaCoO₃钙钛矿活化过一硫酸盐降解萘普生[J]. 化工学报, 2020, 71(3): 1326-1334.
	Wang K Q, Xu J, Shen Z X, et al. Degradation of naproxen by peroxymonosulfate activated with LaCoO₃ [J]. CIESC Journal, 2020, 71(3): 1326-1334.
32	孙巾茹, 宋傲磊, 赵明新, 等. 沉淀剂对Co₃O₄催化分解N₂O的性能影响[J]. 化工进展, 2024, 43(4): 1823-1831.
	Sun J R, Song A L, Zhao M X, et al. Effect of precipitating agent on the performance of Co₃O₄-catalyzed decomposition of N₂O[J]. Chemical Industry and Engineering Progress, 2024, 43(4): 1823-1831.

原料	元素组成/%（质量分数）								灼烧失量/%(质量分数)
原料	P₂O₅	CaO	MgO	SiO₂	Fe₂O₃	Al₂O₃	K₂O	B₂O₃	灼烧失量/%(质量分数)
磷尾矿	9.22	26.81	8.67	5.74	0.62	0.80	0	0.65	44.73
低品位磷矿	18.33	43.05	0.95	6.51	0.35	0.58	0.07	0.29	29.60
蛇纹石	1.08	2.64	39.80	37.94	0	1.05	1.08	0	14.54

原料	元素组成/%（质量分数）								灼烧失量/%(质量分数)
原料	P₂O₅	CaO	MgO	SiO₂	Fe₂O₃	Al₂O₃	K₂O	B₂O₃	灼烧失量/%(质量分数)
磷尾矿	9.22	26.81	8.67	5.74	0.62	0.80	0	0.65	44.73
低品位磷矿	18.33	43.05	0.95	6.51	0.35	0.58	0.07	0.29	29.60
蛇纹石	1.08	2.64	39.80	37.94	0	1.05	1.08	0	14.54

元素种类	分析方法
P₂O₅、SiO₂、CaO、MgO	《钙镁磷肥》（GB/T 20412—2021）
K₂O	《钙镁磷钾肥》（HG/T 2598—1994）
Al₂O₃	《磷矿石和磷精矿中氧化铝含量的测定》（GB/T 1871.3—1995）
Fe₂O₃	《复混肥料中铜、铁、锰、锌、硼、钼含量的测定》（GB/T 14540—2003）
B₂O₃	《地下水质分析方法第44部分：硼量的测定H酸-甲亚胺分光光度法》（DZ/T 0064.44—2021）

元素种类	分析方法
P₂O₅、SiO₂、CaO、MgO	《钙镁磷肥》（GB/T 20412—2021）
K₂O	《钙镁磷钾肥》（HG/T 2598—1994）
Al₂O₃	《磷矿石和磷精矿中氧化铝含量的测定》（GB/T 1871.3—1995）
Fe₂O₃	《复混肥料中铜、铁、锰、锌、硼、钼含量的测定》（GB/T 14540—2003）
B₂O₃	《地下水质分析方法第44部分：硼量的测定H酸-甲亚胺分光光度法》（DZ/T 0064.44—2021）

CaO/SiO₂	原料矿用量/%（质量分数）			T_S/℃
CaO/SiO₂	磷尾矿	低品位磷矿	蛇纹石	T_S/℃
1.8	80	0	20	1490
1.9	72	8	20	1482
2.0	64	16	20	1478
2.1	55	25	20	1455
2.2	47	33	20	1465
2.3	38	42	20	1467
2.4	30	50	20	1474
2.5	21	59	20	1482
2.6	12	68	20	1490
2.7	0	80	20	1494
