In situ growth of oriented polyaniline nanorod array on pencil core and its electrochemical energy storage

doi:10.11949/0438-1157.20241065

Abstract

Abstract:

Conductive polymers could be used as electrode materials for supercapacitors and had great potential applications in small energy storage devices. This article used waste short pencils as raw materials to peel off the pencil core (PC) as a supporting substrate for supercapacitor electrode materials. Then, the ordered polyaniline (PANI) nanorod arrays were in situ grown on the surface of the pencil core by dilute solution method to form PANI@PC electrode. As a carbon material with good conductivity, pencil core could quickly achieve electron transfer and export when it combined with PANI with ordered micro/nano structure. Even at high scanning rates or current densities, the inner active material could still participate in electrode reactions, thereby improving the utilization of electrode materials to enhance the electrochemical properties of composite materials. The experiment showed that the specific capacitance of PANI@PC electrode could reach 470 F/g at a current density of 1 A/g, and the loss of specific capacitance is only 25.5% when the current density increases to 10 A/g. Further analysis of the charge storage mechanism of PANI@PC electrode shows that the electrode reaction is controlled by fast kinetics, that is, the double layer capacitance and Faradaic pseudocapacitance on the surface of PANI@PC electrode contribute, which is conducive to achieving good rate performance of electrode materials. This study could provide guidance for the preparation of composite conductive polymers/nanomaterials for supercapacitors.

Key words: polyaniline, carbon materials, orderly, array structure, electrode materials

摘要：

导电聚合物可以作为超级电容器电极材料，在小型储能设备中具有巨大的潜在应用。采用废旧短铅笔作为原料，将铅笔芯（pencil core， PC）剥离出来作为超级电容器电极材料的支撑基底，然后通过稀溶液法将有序聚苯胺（polyaniline，PANI）纳米棒阵列原位生长在铅笔芯的表面形成PANI@PC电极。铅笔芯作为一种导电性良好的碳材料，当其与有序微纳结构的PANI相结合时，能快速实现电子的传输和导出，即使在高扫描速率或电流密度下，内层活性物质仍能参与电极反应，从而提高电极材料的利用效率，改善复合材料的电化学性能。实验表明，在1 A/g电流密度下PANI@PC电极的比电容可达470 F/g；当电流密度增加至10 A/g时，比电容损失率仅为25.5%。进一步分析PANI@PC电极的电荷存储机制，发现该电极反应由快速动力学控制，即PANI@PC电极表面的双电层电容和法拉第赝电容贡献，这有利于实现电极材料良好的速率性能。本研究可以为超级电容器用导电聚合物电极材料的制备提供指导。

关键词: 聚苯胺, 碳材料, 有序, 阵列结构, 电极材料

CLC Number:

O 631

Quankang SHENG, Ao CHEN, Long CHEN, Yu ZHANG, Shaoyun CHEN, Chenglong HU. In situ growth of oriented polyaniline nanorod array on pencil core and its electrochemical energy storage[J]. CIESC Journal, 2025, 76(4): 1875-1884.

盛全康, 陈奥, 陈龙, 张禹, 陈韶云, 胡成龙. 铅笔芯上原位生长有序聚苯胺阵列及其电化学储能[J]. 化工学报, 2025, 76(4): 1875-1884.

Figures/Tables 8

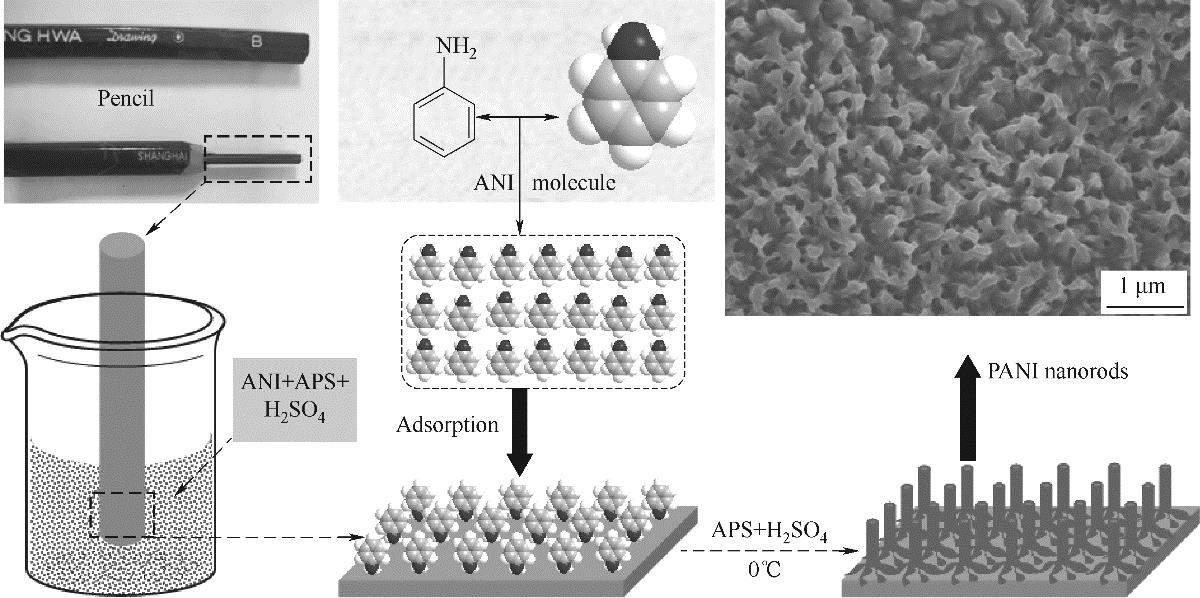

Fig.1 Schematic diagram of synthesis of ordered PANI@PC nanoarrays

Fig.2 SEM images of pure PC and PANI@PC at different magnifications

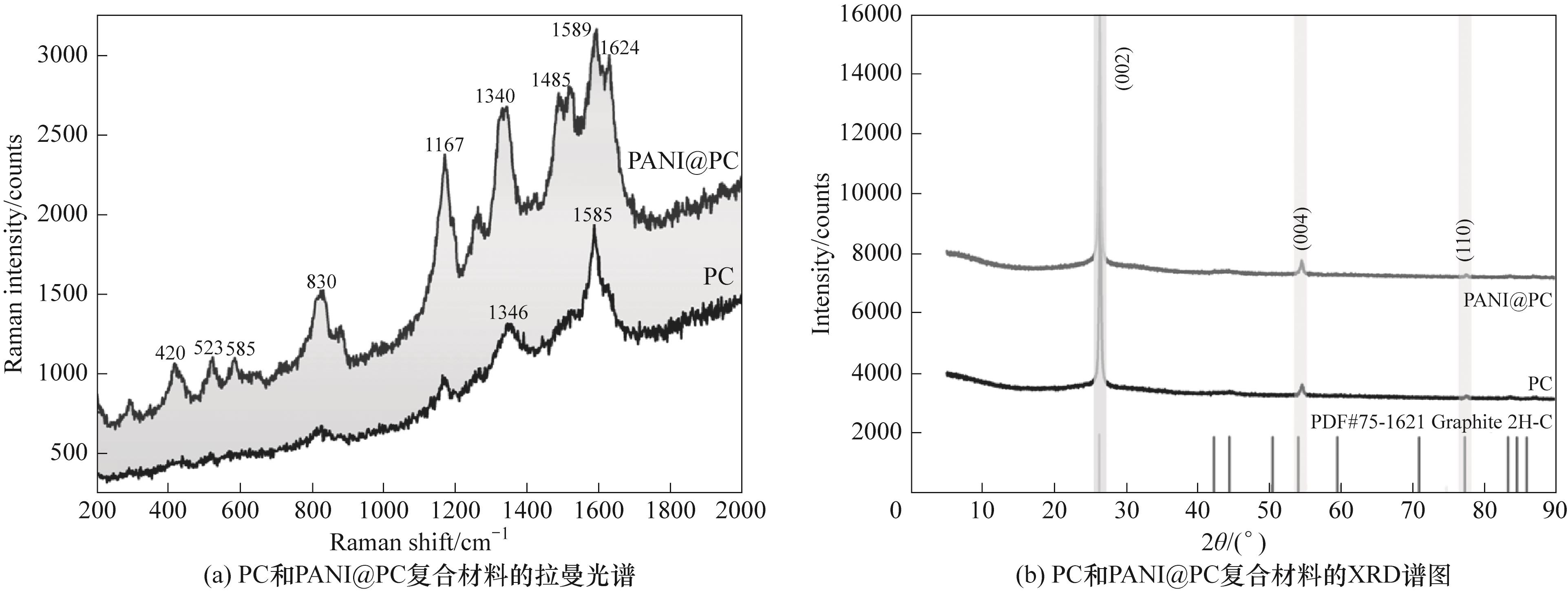

Fig.3 The Raman spectra and XRD patterns of the pure PC and PANI@PC

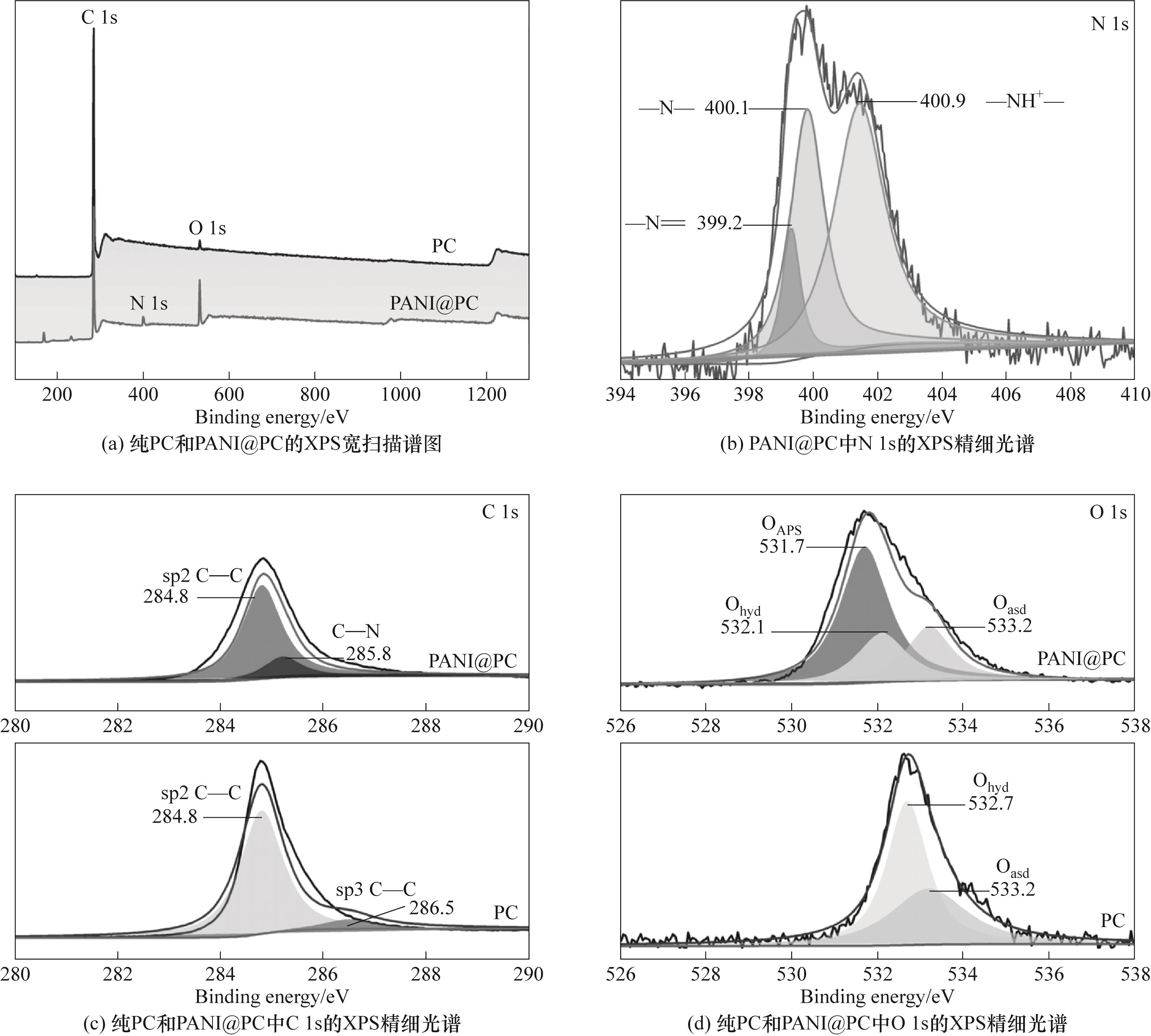

Fig.4 The XPS spectra of pure PC and PANI@PC

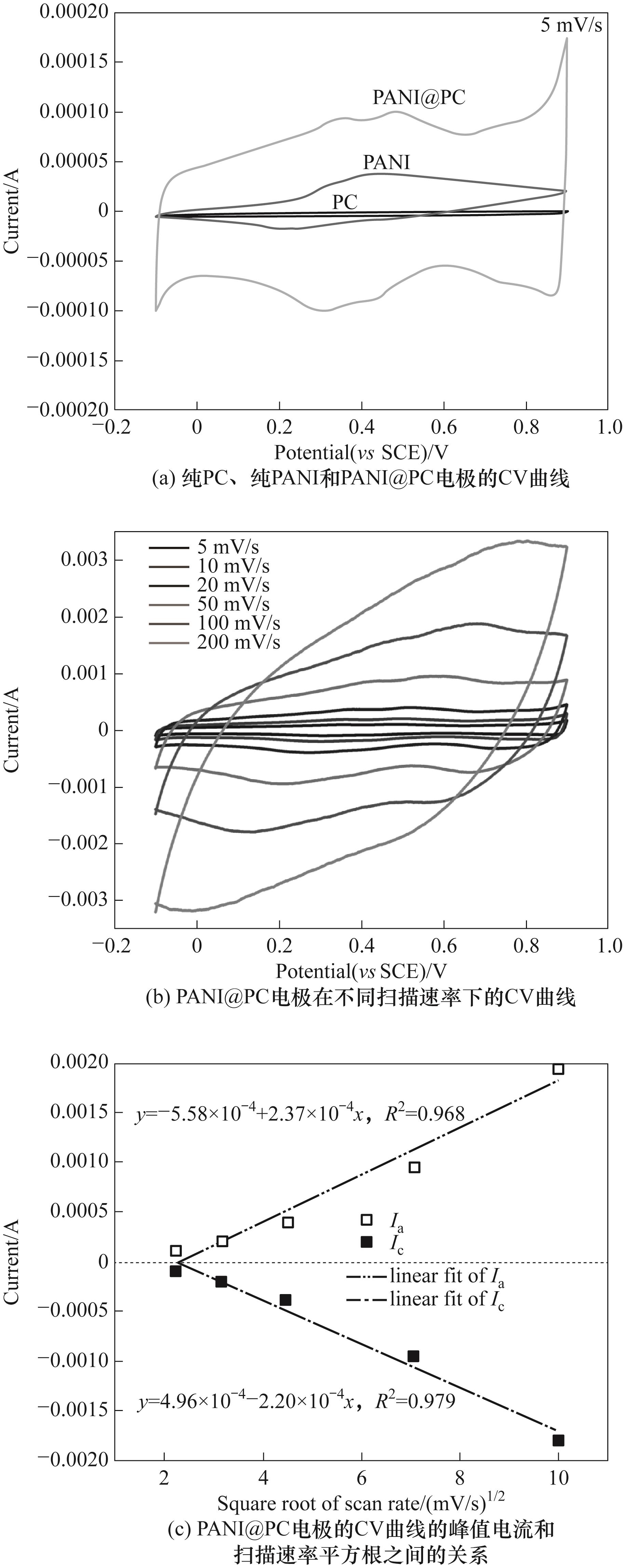

Fig.5 CV curves of pure PC, pure PANI and PANI@PC electrodes

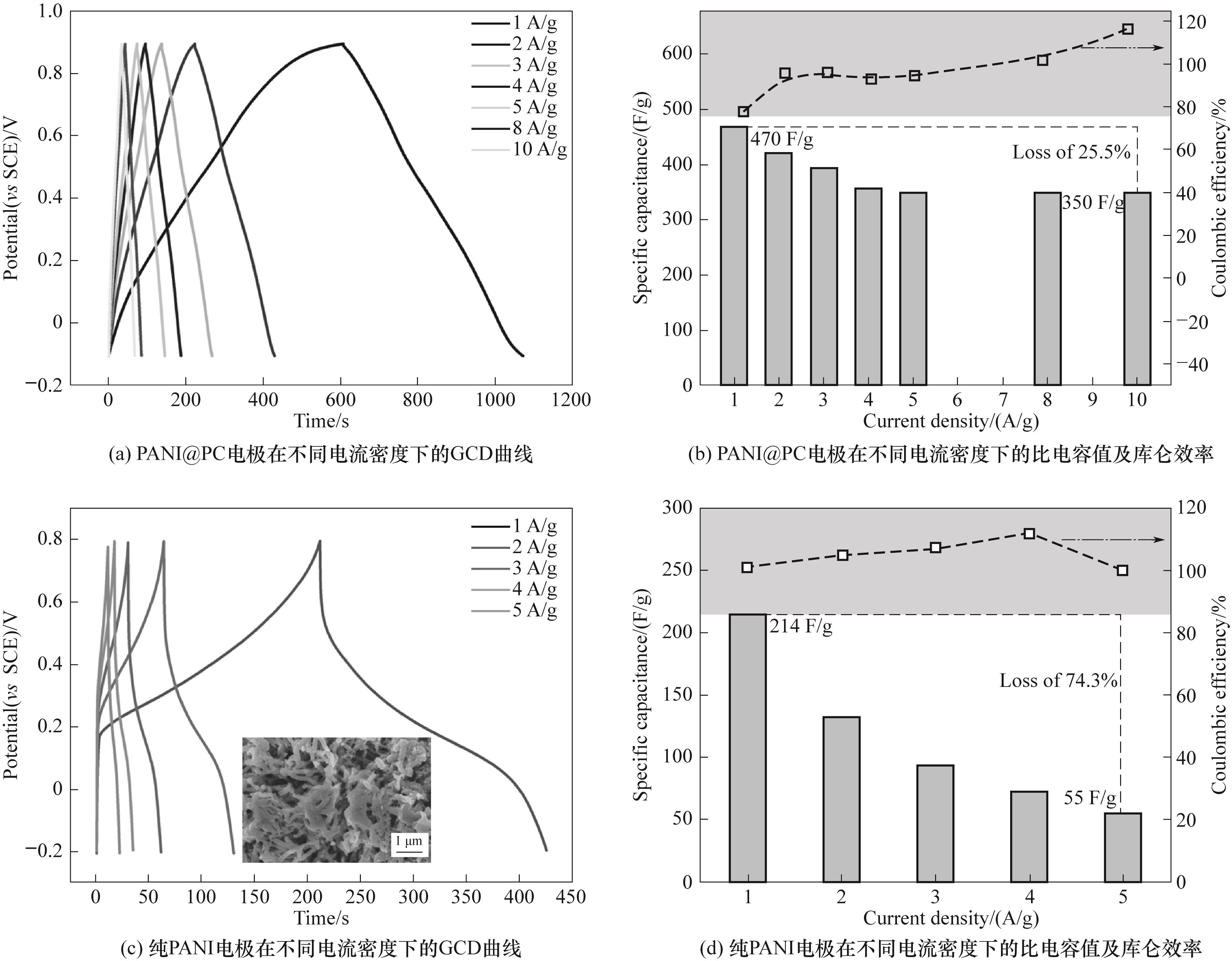

Fig.6 GCD curves and specific capacitance values of PANI@PC and pure PANI electrode at different current densities

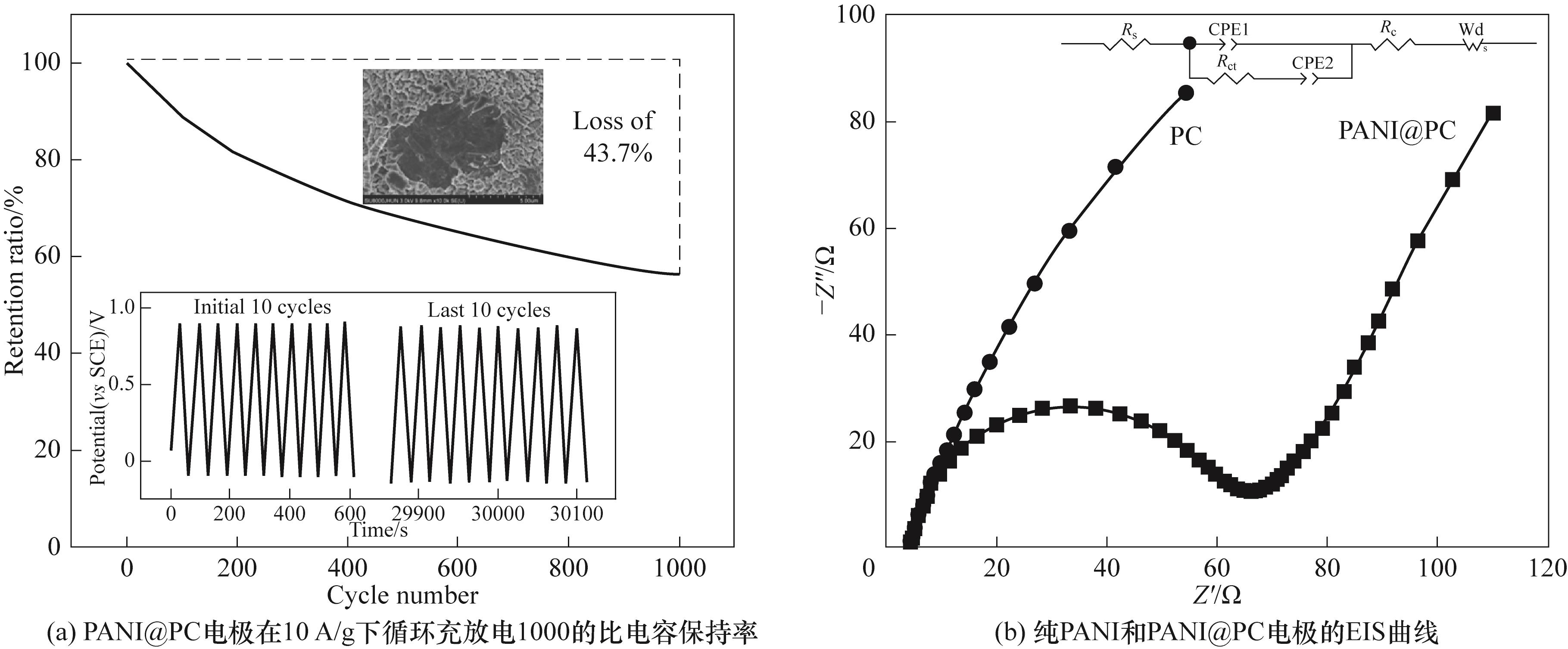

Fig.7 The long-life cyclic stability curve of PANI@PC electrode and EIS curves of pure PANI and PANI@PC electrode

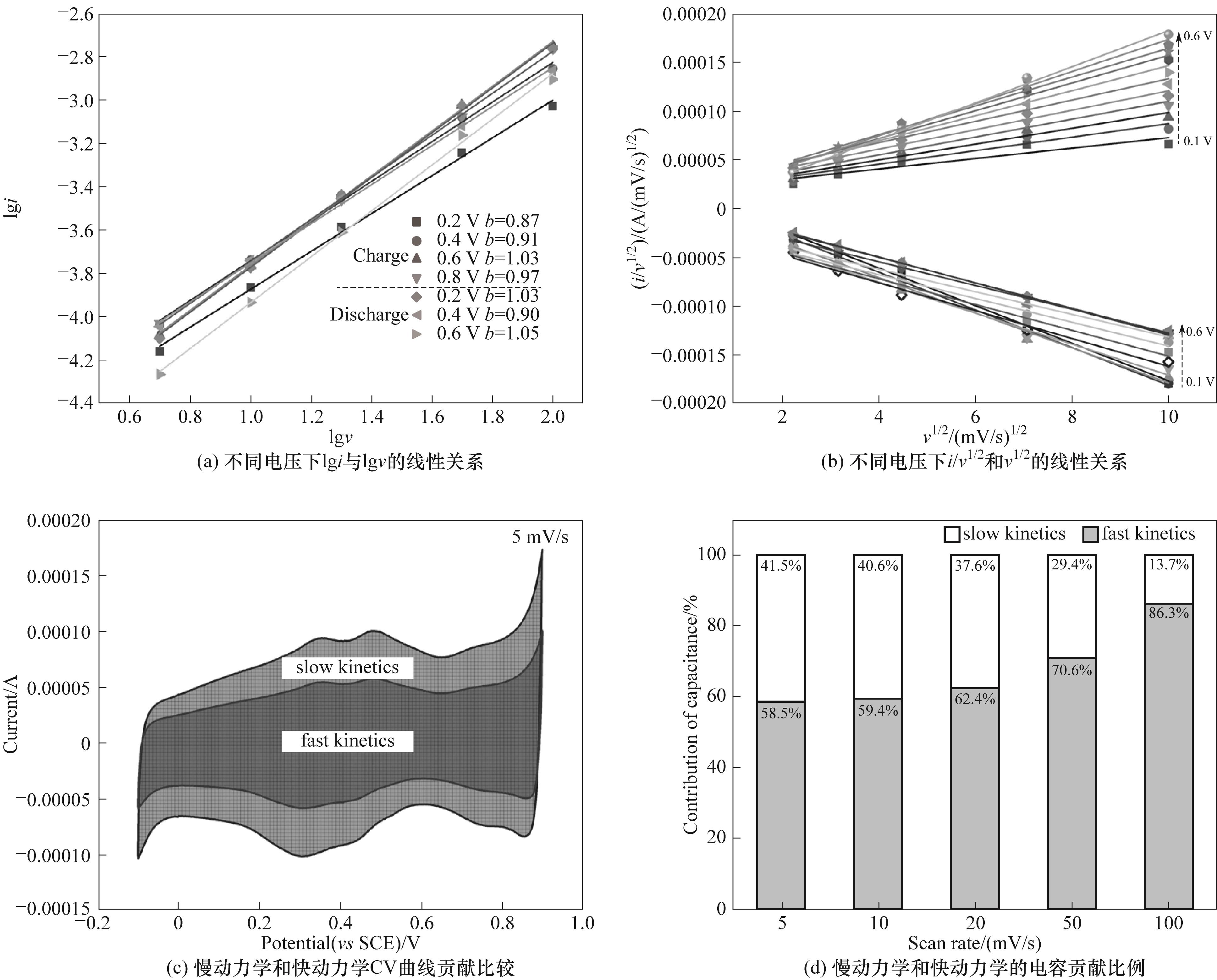

Fig.8 Charge storage mechanism of PANI@PC electrode based on fast kinetics and slow kinetics

References 35

1	Poonam, Sharma K, Arora A, et al. Review of supercapacitors: materials and devices[J]. Journal of Energy Storage, 2019, 21: 801-825.
2	Yaseen M, Khattak M A K, Humayun M, et al. A review of supercapacitors: materials design, modification, and applications[J]. Energies, 2021, 14(22): 7779
3	Olabi A G, Abbas Q, Al Makky A, et al. Supercapacitors as next generation energy storage devices: properties and applications[J]. Energy, 2022, 248: 123617.
4	Zhai Z Z, Zhang L H, Du T M, et al. A review of carbon materials for supercapacitors[J]. Materials & Design, 2022, 221: 111017.
5	An C H, Zhang Y, Guo H N, et al. Metal oxide-based supercapacitors: progress and prospectives[J]. Nanoscale Advances, 2019, 1(12): 4644-4658.
6	Li L, Meng J, Zhang M T, et al. Recent advances in conductive polymer hydrogel composites and nanocomposites for flexible electrochemical supercapacitors[J]. Chemical Communications, 2022, 58(2): 185-207.
7	Lv S, Ma L Y, Shen X Y, et al. Recent design and control of carbon materials for supercapacitors[J]. Journal of Materials Science, 2021, 56(3): 1919-1942.
8	Sevilla M, Mokaya R. Energy storage applications of activated carbons: supercapacitors and hydrogen storage[J]. Energy & Environmental Science, 2014, 7(4): 1250-1280.
9	Herou S, Ribadeneyra M C, Madhu R, et al. Ordered mesoporous carbons from lignin: a new class of biobased electrodes for supercapacitors[J]. Green Chemistry, 2019, 21(3): 550-559.
10	Su C I, Wang C M, Lu K W, et al. Evaluation of activated carbon fiber applied in supercapacitor electrodes[J]. Fibers and Polymers, 2014, 15(8): 1708-1714.
11	Zhu S, Ni J F, Li Y. Carbon nanotube-based electrodes for flexible supercapacitors[J]. Nano Research, 2020, 13(7): 1825-1841.
12	Zhang D, Tan C, Zhang W Z, et al. Expanded graphite-based materials for supercapacitors: a review[J]. Molecules, 2022, 27(3): 716.
13	Velasco A, Ryu Y K, Boscá A, et al. Recent trends in graphene supercapacitors: from large area to microsupercapacitors[J]. Sustainable Energy & Fuels, 2021, 5(5): 1235-1254.
14	Meng Q F, Cai K F, Chen Y X, et al. Research progress on conducting polymer based supercapacitor electrode materials[J]. Nano Energy, 2017, 36: 268-285.
15	Han Y Q, Dai L M. Conducting polymers for flexible supercapacitors[J]. Macromolecular Chemistry and Physics, 2019, 220(3): 1800355
16	Kuila B K, Nandan B, Böhme M, et al. Vertically oriented arrays of polyaniline nanorods and their super electrochemical properties[J]. Chemical Communications, 2009(38): 5749-5751.
17	Wang K, Huang J Y, Wei Z X. Conducting polyaniline nanowire arrays for high performance supercapacitors[J]. The Journal of Physical Chemistry C, 2010, 114(17): 8062-8067.
18	Wang Y, Xu S Q, Cheng H, et al. Oriented growth of polyaniline nanofiber arrays onto the glass and flexible substrates using a facile method[J]. Applied Surface Science, 2018, 428: 315-321.
19	Hu C L, Zhang X Y, Liu B, et al. Orderly and highly dense polyaniline nanorod arrays fenced on carbon nanofibers for all-solid-state flexible electrochemical energy storage[J]. Electrochimica Acta, 2020, 338: 135846.
20	Tian D, Cheng H, Li Q, et al. The ordered polyaniline nanowires wrapped on the polypyrrole nanotubes as electrode materials for electrochemical energy storage[J]. Electrochimica Acta, 2021, 398: 139328.
21	Peng S, Liu B, Zhang X Y, et al. Large-area polyaniline nanorod growth on a monolayer polystyrene nanosphere array as an electrode material for supercapacitors[J]. ACS Applied Energy Materials, 2021, 4(12): 14766-14777.
22	Liu B, Zhang X Y, Tian D, et al. In situ growth of oriented polyaniline nanorod arrays on the graphite flake for high-performance supercapacitors[J]. ACS Omega, 2020, 5(50): 32395-32402.
23	Chen S Y, Zhang X Y, Liu B, et al. Characterisations of carbon-fenced conductive silver nanowires-supported hierarchical polyaniline nanowires[J]. Electrochimica Acta, 2018, 292: 435-445.
24	陈韶云, 徐东, 陈龙, 等. 单层聚苯胺微球阵列结构的制备及其吸附性能[J]. 化工学报, 2023, 74(5): 2228-2238.
	Chen S Y, Xu D, Chen L, et al. Preparation and adsorption properties of monolayer polyaniline microsphere arrays[J]. CIESC Journal, 2023, 74(5): 2228-2238.
25	徐东, 田杜, 陈龙, 等. 聚苯胺/二氧化锰/聚吡咯复合纳米球的制备及其电化学储能性[J]. 化工学报, 2023, 74(3): 1379-1389.
	Xu D, Tian D, Chen L, et al. Preparation and electrochemical energy storage of polyaniline/manganese dioxide/polypyrrole composite nanospheres[J]. CIESC Journal, 2023, 74(3): 1379-1389.
26	Chiou N R, Lu C M, Guan J J, et al. Growth and alignment of polyaniline nanofibres with superhydrophobic, superhydrophilic and other properties[J]. Nature Nanotechnology, 2007, 2(6): 354-357.
27	Wang K, Wu H P, Meng Y N, et al. Conducting polymer nanowire arrays for high performance supercapacitors[J]. Small, 2014, 10(1): 14-31.
28	Xiong W S, Jiang Y, Xia Y, et al. A sustainable approach for scalable production of α - F e 2 O 3 nanocrystals with 3D interconnected porous architectures on flexible carbon textiles as integrated electrodes for lithium-ion batteries[J]. Journal of Power Sources, 2018, 401: 65-72.
29	Lu X F, Chen X Y, Zhou W, et al. α-Fe₂O₃@PANI core-shell nanowire arrays as negative electrodes for asymmetric supercapacitors[J]. ACS Applied Materials & Interfaces, 2015, 7(27): 14843-14850.
30	Li G R, Feng Z P, Zhong J H, et al. Electrochemical synthesis of polyaniline nanobelts with predominant electrochemical performances[J]. Macromolecules, 2010, 43(5): 2178-2183.
31	Yu P P, Li Y Z, Zhao X, et al. Graphene-wrapped polyaniline nanowire arrays on nitrogen-doped carbon fabric as novel flexible hybrid electrode materials for high-performance supercapacitor[J]. Langmuir, 2014, 30(18): 5306-5313.
32	Li J P, Ren Y Q, Ren Z H, et al. Aligned polyaniline nanowires grown on the internal surface of macroporous carbon for supercapacitors[J]. Journal of Materials Chemistry A, 2015, 3(46): 23307-23315.
33	Yang Q Y, Huang J, Tu J Y, et al. A micropore-dominant N, P, S-codoped porous carbon originating from hydrogel for high-performance supercapacitors mediated by phytic acid[J]. Microporous and Mesoporous Materials, 2021, 316: 110951.
34	Liu T Y, Zhou Z P, Guo Y C, et al. Block copolymer derived uniform mesopores enable ultrafast electron and ion transport at high mass loadings[J]. Nature Communications, 2019, 10(1): 675.
35	Lu Y, Liang J N, Deng S F, et al. Hypercrosslinked polymers enabled micropore-dominant N, S co-doped porous carbon for ultrafast electron/ion transport supercapacitors[J]. Nano Energy, 2019, 65: 103993.
