磁场对湿颗粒流化床系统中介尺度结构影响机制研究

doi:10.11949/0438-1157.20220158

摘要/Abstract

摘要：

湿颗粒系统在自然界及工业过程非常普遍，例如喷雾造粒、反应器中矿物黏结、催化以及制药等，这其中含有大量典型介尺度结构如颗粒聚团、结块以及气泡等结构，这些结构的存在导致颗粒系统的流动及热质传递特性发生明显改变。针对鼓泡流化床湿颗粒系统中颗粒聚团以及气泡等介尺度结构，应用离散单元模型并引入外加磁场，研究磁场作用下湿颗粒系统中介尺度结构的演化机制，探究磁场力、液桥力、接触力对气泡演化过程的影响。研究发现，在不考虑磁场的条件下，颗粒易形成聚团并存在气泡边界不规则等现象，引入外加匀强磁场后，磁场力对鼓泡流化床内气泡结构存在破坏和抑制作用。

关键词: 湿颗粒, 离散单元模型, 磁场, 介尺度

Abstract:

Wet particle systems are very common in nature and industrial processes, such as spray granulation, mineral bonding in reactors, pharmaceutical and catalyst. Due to the presence of liquid, the flow, heat and mass transfer characteristics are significantly changed compared with dry particle systems. For example, a large number of typical mesoscale structures, including particle agglomeration, clusters and bubbles, form and lead to different flow regime. Thus, mesoscale structure flow and evolution behaviors have attracted more and more attention, which might affect the design and operation of industrial reactors. In this paper, typical mesoscale structures are investigated in a bubbling fluidized bed by discrete element method (DEM), and effect of external magnetic field on mesoscale structure evolution process is explored. First, the numerical model for describing dry and wet particle system flow behaviors were established with magnetic field introduced. The numerical model has been validated and shown in our previous published investigations. Then, mesoscale structure flow behaviors were analyzed in dry and wet particle system without magnetic flied. Bubble evolution process was found clearly in a dry particle system, and the trajectory of the bubble was almost along the midline of fluidized bed. With the cohesive liquid introduced, that of bubble center was offset from the midline. Next, an external magnetic field was introduced based on DEM to study the evolution mechanism of the mesoscale structure in the wet particle system under the action of the magnetic field. We compared the dominant role of liquid bridge force, contact force, magnetic force and drag force in fluidized beds, and tried to analyze and explore the relationship among different forces. The study found that without considering the magnetic field, particles are easy to form agglomeration and have irregular bubble boundaries. After the introduction of an external uniform magnetic field, the magnetic field force will destroy and inhibit the bubble structure in the bubbling fluidized bed.

Key words: wet particle, discrete element method, magnetic field, mesoscale structure

中图分类号:

TK 11

唐天琪, 何玉荣. 磁场对湿颗粒流化床系统中介尺度结构影响机制研究[J]. 化工学报, 2022, 73(6): 2636-2648.

Tianqi TANG, Yurong HE. Effect of magnetic field on the mesoscale structure evolution process in a wet particle fluidized bed[J]. CIESC Journal, 2022, 73(6): 2636-2648.

图/表 11

图1 磁场作用下含湿磁性颗粒受力情况示意图

Fig.1 Schematic diagram of forces imposing on wet particles under effect of magnetic field

表1 模拟参数设置

Table 1 Parameters used in the simulation

变量	数值	单位	变量	数值	单位
流化床			气体
鼓泡床x、y、z方向尺寸	90×24×900	mm	气体密度	1.2	kg/m³
鼓泡床x、y、z方向网格	10×3×90		气体速度	1.2	m/s
颗粒			气体黏度	1.8×10^-5	Pa?s
颗粒数量	16000	个	出口压力	101325	Pa
颗粒直径	3	mm	液体
颗粒密度	420	kg/m³	相对液体量	0.01	%
恢复系数	0.97		液体密度	1000	kg/m³
颗粒间滑动摩擦系数	0.10		液体黏度	1.03	mPa?s
颗粒壁面间滑动摩擦系数	0.30		接触角	π/6	rad
法向弹簧刚度	800	N/m	表面张力系数	0.0721	N/m
切向弹簧刚度	286	N/m	磁场
颗粒磁化率	0.642		磁场强度	0.005，0.010，0.020	T

图2 流化床结构示意图

Fig.2 Structure of the bubbling fluidized bed

图3 无磁场作用下一个气泡生长周期内颗粒空间分布情况

Fig.3 Instantaneous particle distribution and bubble forming process without magnetic field in dry and wet particle systems (a cycle)

图4 无磁场作用下床层压降脉动及一个气泡生长周期内气泡生长情况

Fig.4 Distribution of pressure drop and bubble evolution process without magnetic field (a cycle)

图5 干、湿颗粒系统中气泡颗粒温度分布情况

Fig.5 Distribution of bubble granular temperature in dry and wet particle systems

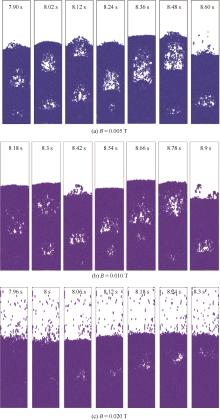

图6 不同磁场强度下一个气泡生长周期内颗粒空间分布情况

Fig.6 Instantaneous particle distribution and bubble forming process under different magnetic field intensities in wet particle system

图7 不同磁场强度下气泡颗粒温度分布情况

Fig.7 Distribution of bubble granular temperature under different magnetic field intensities

图8 不同磁场强度下床层压降脉动及一个气泡生长周期内气泡生长情况

Fig.8 Distribution of pressure drop and bubble evolution process under different magnetic field intensities

图9 梯度磁场对一个气泡生长周期内气泡生长情况的影响

Fig.9 Effects of magnetic field gradient on bubble evolution process

图10 气泡区域垂直方向磁场力、接触力、曳力以及液桥力之间的相互作用机制

Fig.10 Interaction among magnetic field force, contact force, drag force and liquid bridge force for the bubble structure evolution process under different magnetic field intensities in vertical direction
