可再生甲醇生产系统操作窗口特性分析与调控

doi:10.11949/0438-1157.20240553

摘要/Abstract

摘要：

可再生甲醇是实现可持续发展目标的重要途径之一。可再生能源的波动性和间歇性导致二氧化碳加氢制甲醇过程工况频繁波动。为了适应可再生能源的波动，甲醇生产系统的灵活性亟需提升。本文提出一种可再生甲醇生产系统操作窗口调控策略，通过在工艺条件和操作约束下设计分析关键设备的操作窗口特性，建立设备数据库，并通过瓶颈设备识别与替换实现对生产系统中关键设备集的优化选择，有效调控和扩大生产系统的操作窗口。研究表明：本文所构建的甲醇生产系统操作窗口调控策略可以实现最大化生产系统操作上限，最小化生产系统操作下限以及最大化操作窗口范围三个目标，以有效调控操作窗口，并依据给定的操作窗口需求确定最优的设备组合及设计方案，从而为适应可再生能源波动的甲醇生产系统柔性提升提供计算依据。

关键词: 可再生能源, 甲醇生产, 操作窗口, 设备设计, 优化

Abstract:

The renewable methanol is one of important ways in achieving sustainable development. However, the fluctuating and intermittent renewable energy may lead to frequent process conditions fluctuations of the hydrogenation of carbon dioxide to methanol. To adapt to the fluctuations in renewable energy, it is necessary to enhance the flexibility of the methanol production system. In this work, a renewable methanol production system operating window regulation strategy for selecting appropriate equipment is proposed. The equipment database is established through the design and analysis of the operating window characteristics of key equipment under process conditions and operational constraints, and the operating window of the production system is expanded by optimizing the equipment set through the regulation strategy. The results indicated that the proposed method can effectively regulate the operating window of the methanol production system by maximizing the upper limit, minimizing the lower limit, and maximizing the range of operating window, and determine the optimal equipment combination and design scheme according to the application scenarios. These results are expected to provide guidance for flexibility improvement of methanol production system adapted to the fluctuations of renewable energy.

Key words: renewable energy, methanol production, operating window, equipment design, optimization

中图分类号:

TQ 021.8

孔昕山, 高鑫, 康丽霞, 刘永忠. 可再生甲醇生产系统操作窗口特性分析与调控[J]. 化工学报, DOI: 10.11949/0438-1157.20240553.

Xinshan KONG, Xin Gao, Lixia KANG, Yongzhong LIU. Analysis and regulation on operating window of renewable methanol production system[J]. CIESC Journal, DOI: 10.11949/0438-1157.20240553.

图/表 24

参考文献 33

1	Wang B, Wang Q, Wei Y-M, et al. Role of renewable energy in China's energy security and climate change mitigation: An index decomposition analysis[J]. Renewable and Sustainable Energy Reviews, 2018, 90(1): 187-194.
2	Zhu Q Y, Chen X F, Song M L, et al. Impacts of renewable electricity standard and Renewable Energy Certificates on renewable energy investments and carbon emissions[J]. Journal of Environmental Management, 2022, 306(1): 114495.
3	Gonzalez-Garay A, Frei M S, Al-Qahtani A, et al. Plant-to-planet analysis of CO2-based methanol processes[J]. Energy & Environmental Science, 2019, 12(12): 3425-3436.
4	Tabibian S S, Sharifzadeh M. Statistical and analytical investigation of methanol applications, production technologies, value-chain and economy with a special focus on renewable methanol[J]. Renewable and Sustainable Energy Reviews, 2023, 179(1): 113281.
5	Sun M, Zhao B, Chen F, et al. Thermally-assisted photocatalytic CO2 reduction to fuels[J]. Chemical Engineering Journal, 2021, 408(1): 127280.
6	李鑫, 曾少娟, 彭奎霖. CO2电催化还原制合成气研究进展及趋势[J]. 化工学报, 2023, 74(1): 313-329.
	Li X, Zeng S J, Peng K L. Research progress and tendency of CO2 electrocatalytic reduction to syngas[J]. CIESC Journal, 2023, 74(1): 313-329.
7	Navarro-Jaen S, Virginie M, Bonin J, et al. Highlights and challenges in the selective reduction of carbon dioxide to methanol[J]. Nat Rev Chem, 2021, 5(8): 564-579.
8	Wei H, Su C, Dai J, et al. Towards a sustainable, and economic production future: Proposing a new process for methanol production based on renewable hydrogen[J]. Journal of Cleaner Production, 2023, 389(1): 135976.
9	Bos M J, Kersten S R A, Brilman D W F. Wind power to methanol: Renewable methanol production using electricity, electrolysis of water and CO2 air capture[J]. Applied Energy, 2020, 264(1): 114672.
10	孟文亮, 李贵贤, 周怀荣. 绿氢重构的粉煤气化煤制甲醇近零碳排放工艺研究[J]. 化工学报, 2022, 73(4): 1714-1723.
	Meng W L, Li G X, Zhou H R. A novel coal to methanol process with near zero CO2 emission by pulverized coal gasification integrated green hydrogen[J]. CIESC Journal, 2022, 73(4): 1714-1723.
11	Gu Y, Wang D, Chen Q, et al. Techno-economic analysis of green methanol plant with optimal design of renewable hydrogen production: A case study in China[J]. International Journal of Hydrogen Energy, 2022, 47(8): 5085-5100.
12	Svitnic T, Sundmacher K. Renewable methanol production: Optimization-based design, scheduling and waste-heat utilization with the FluxMax approach[J]. Applied Energy, 2022, 326(1): 120017.
13	Han Y, Shi K, Qian Y, et al. Design and operational optimization of a methanol-integrated wind-solar power generation system[J]. Journal of Environmental Chemical Engineering, 2023, 11(3): 109992.
14	Fu K, Li M, Li P, et al. Designing CO2 reduction microreactor systems under fluctuating renewable H2 supply by multi-objective stochastic optimization[J]. Applied Energy, 2024, 357(1): 122482.
15	Kojima H, Nagasawa K, Todoroki N, et al. Influence of renewable energy power fluctuations on water electrolysis for green hydrogen production[J]. International Journal of Hydrogen Energy, 2023, 48(12): 4572-4593.
16	孔昕山, 黄仁星,康丽霞,刘永忠. 甲醇模块化生产中分时储热系统的优化设计[J]. 化工学报, 2022, 73(2): 770-781.
	Kong X S, Huang R X, Kang L X, et al. Optimal design of time-sharing heat storage system for modular production of methanol[J]. CIESC Journal, 2022, 73(2): 770-781.
17	Herdem M S, Mazzeo D, Matera N, et al. Simulation and modeling of a combined biomass gasification-solar photovoltaic hydrogen production system for methanol synthesis via carbon dioxide hydrogenation[J]. Energy Conversion and Management, 2020, 219(1): 113045.
18	Decker M, Schorn F, Samsun R C, et al. Off-grid power-to-fuel systems for a market launch scenario - A techno-economic assessment[J]. Applied Energy, 2019, 250(1): 1099-1109.
19	Chen C, Yang A. Power-to-methanol: The role of process flexibility in the integration of variable renewable energy into chemical production[J]. Energy Conversion and Management, 2021, 228(1): 113673.
20	Tso W W, Demirhan C D, Heuberger C F, et al. A hierarchical clustering decomposition algorithm for optimizing renewable power systems with storage[J]. Applied Energy, 2020, 270(1): 115190.
21	Ahmed U. Techno-economic analysis of dual methanol and hydrogen production using energy mix systems with CO2 capture[J]. Energy Conversion and Management, 2021, 228(1): 113663.
22	Wang J, Kang L X, Liu Y Z. Optimal design of a cooperated energy storage system to balance intermittent renewable energy and fluctuating demands of hydrogen and oxygen in refineries[J]. Computers & Chemical Engineering, 2021, 155(1): 107543.
23	Shirazi A, Rahbari A, Asselineau C-A, et al. A solar fuel plant via supercritical water gasification integrated with Fischer–Tropsch synthesis: System-level dynamic simulation and optimisation[J]. Energy Conversion and Management, 2019, 192(1): 71-87.
24	Smith C, Torrente-Murciano L. The importance of dynamic operation and renewable energy source on the economic feasibility of green ammonia[J]. Joule, 2024, 8(1): 157-174.
25	Seifert T, Lesniak A K, Sievers S, et al. Capacity Flexibility of Chemical Plants[J]. Chemical Engineering & Technology, 2014, 37(2): 332-342.
26	Sudhoff D, Leimbrink M, Schleinitz M, et al. Modelling, design and flexibility analysis of rotating packed beds for distillation[J]. Chemical Engineering Research & Design, 2015, 94(1): 72-89.
27	Radatz H, Elischewski J M, Heitmann M, et al. Design of equipment modules for flexibility[J]. Chemical Engineering Science, 2017, 168(1): 271-288.
28	Bruns B, Di Pretoro A, Grünewald M, et al. Flexibility analysis for demand-side management in large-scale chemical processes: An ethylene oxide production case study[J]. Chemical Engineering Science, 2021, 243(1): 116779.
29	Huang R, Kang L, Liu Y. Renewable synthetic methanol system design based on modular production lines[J]. Renewable and Sustainable Energy Reviews, 2022, 161(1): 112379.
30	Van-Dal E S, Bouallou C. Design and simulation of a methanol production plant from CO2 hydrogenation[J]. Journal of Cleaner Production, 2013, 57(1): 38-45.
31	中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. 热交换器: [S]. 北京: 中国标准出版社, 2015.
	General Administration of Quality Supervision Inspection and Quarantine of the People's Republic of China,Standardization Administration of the People's Republic of China. Heat exchangers: [S]. Beijing: Standards Press of China, 2015.
32	孙兰义. 换热器工艺设计[M]. 北京: 中国石化出版社, 2015: 77-171.
	Sun L Y. Thermal Design of Heat Exchangers[M]. Beijing: China Petrochemical Press, 2015: 77-171.
33	Standards of the Tubular Exchanger Manufacturers Association,Tubular Exchanger Manufacturers Association,. TEMA-The 10th Edition [S]. USA: Tubular Exchanger Manufacturers Association, 2019.

设备单元	约束条件

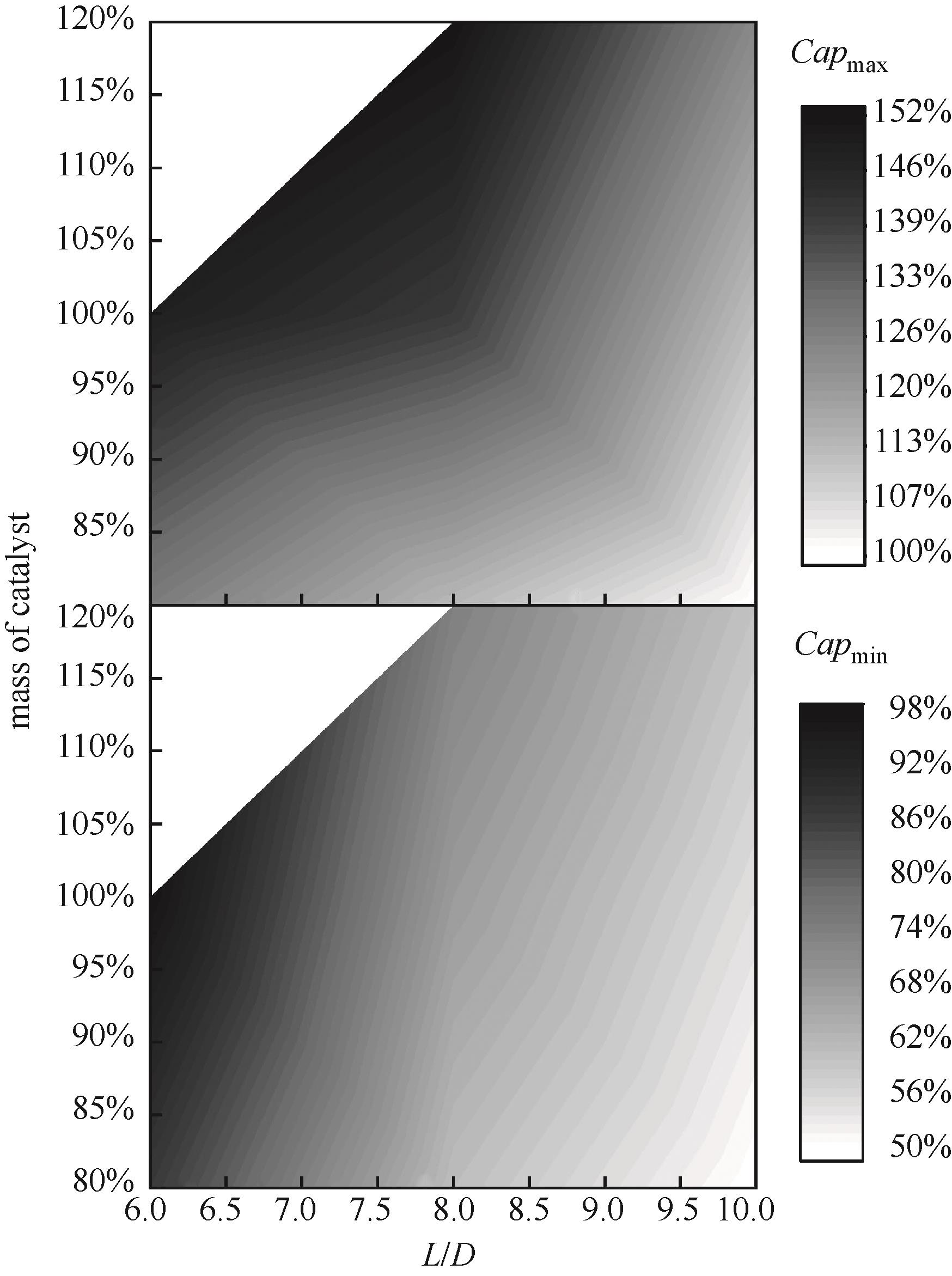

反应器	反应选择性、反应转化率、反应温度范围、压降

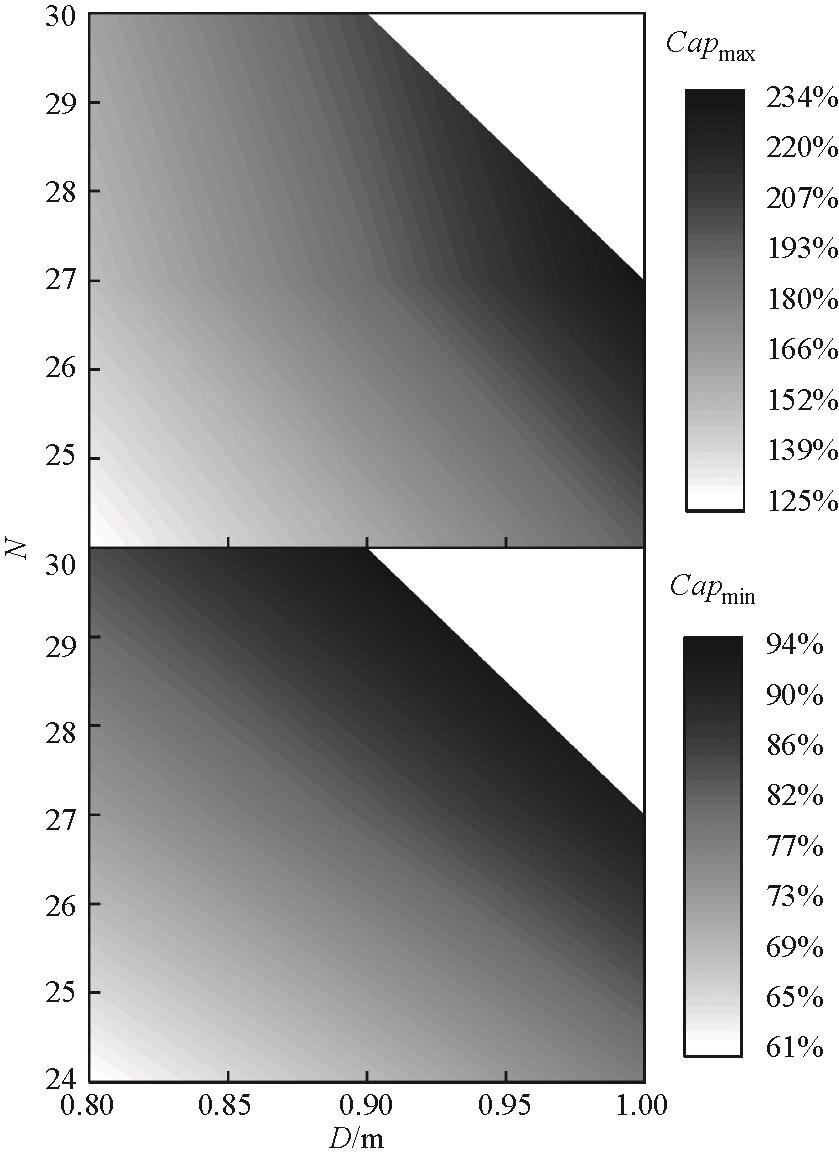

精馏塔	降液管液泛、雾沫夹带液泛、液相负荷上下限、漏液
换热器	换热面积余量、管程和壳程流速、管程和壳程压降、进出口ρv²

设备单元	约束条件
反应器	反应选择性、反应转化率、反应温度范围、压降
精馏塔	降液管液泛、雾沫夹带液泛、液相负荷上下限、漏液

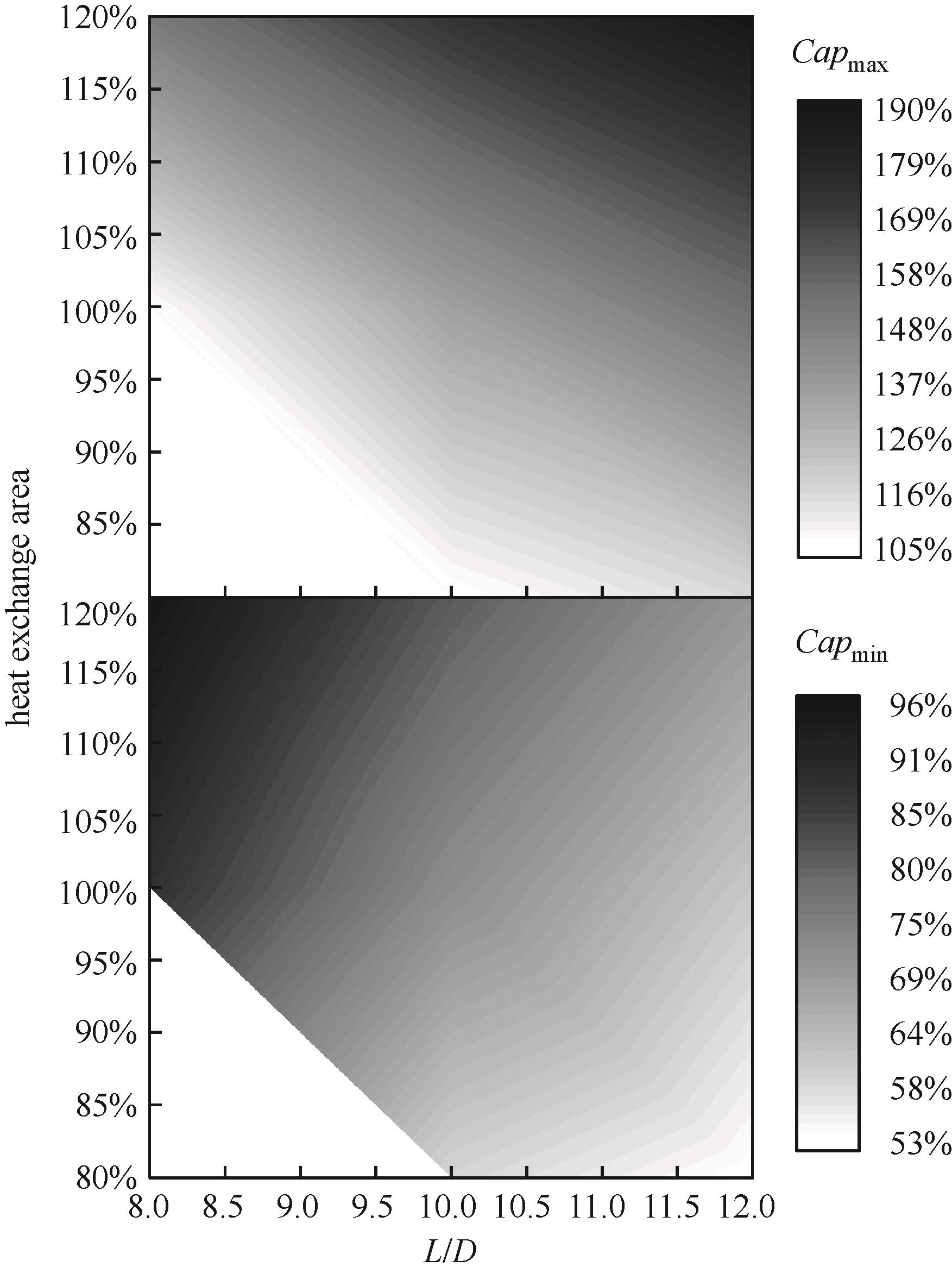

换热器	换热面积余量、管程和壳程流速、管程和壳程压降、进出口ρv²

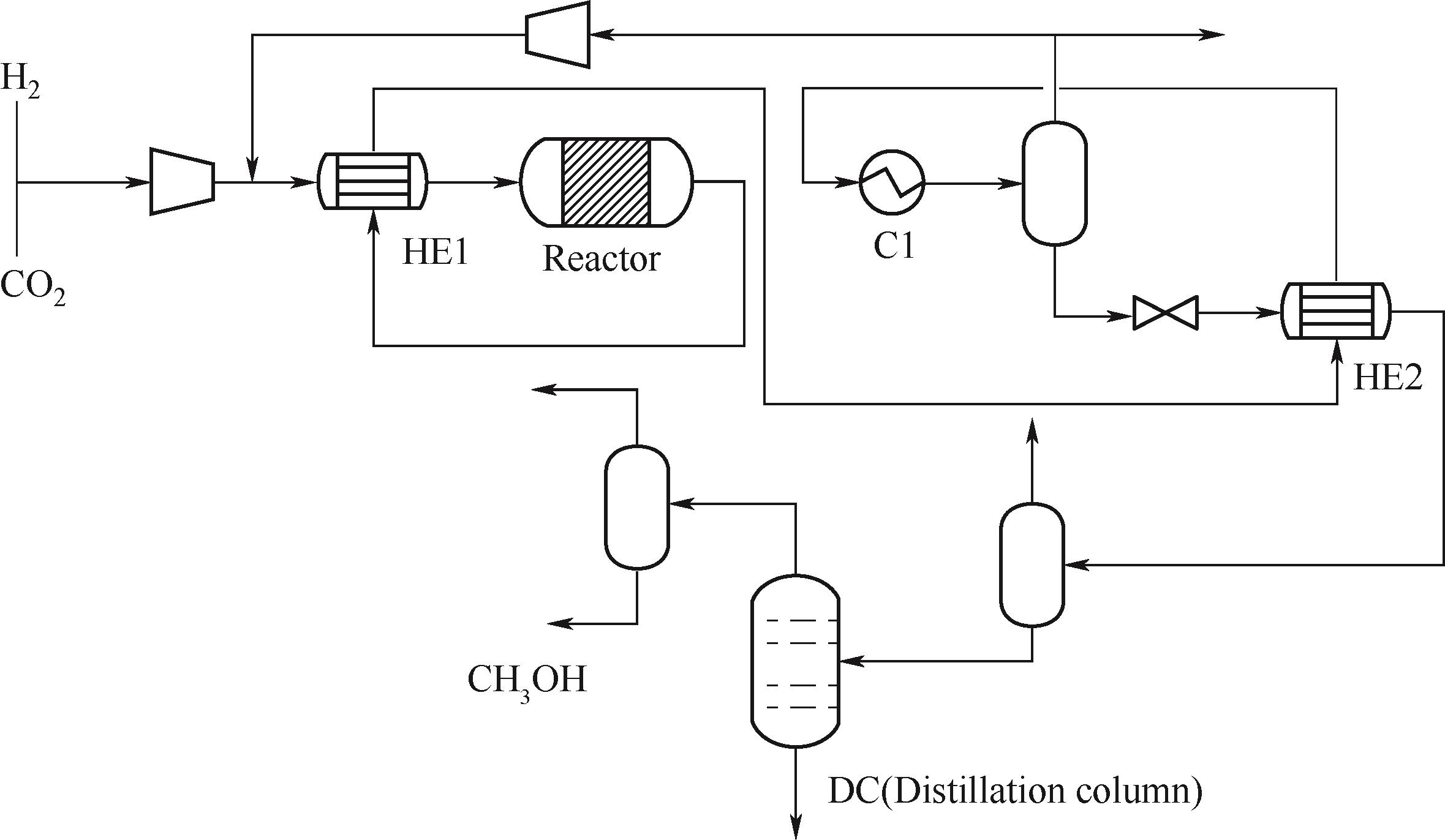

工艺参数	数值
进料摩尔比	CO₂/H₂=1/3
进料流量	H₂=0.22 t/h
产量和产品规格	7600 ton/a 98.5 wt%甲醇
循环摩尔比	4.8
单程转化率	29.01%
选择性	99%
吹扫排空气体	1%

工艺参数	数值
进料摩尔比	CO₂/H₂=1/3
进料流量	H₂=0.22 t/h
产量和产品规格	7600 ton/a 98.5 wt%甲醇
循环摩尔比	4.8
单程转化率	29.01%
选择性	99%
吹扫排空气体	1%

约束条件	操作下限	操作上限
转化率	28.5%	—
选择性	98.5%	—
压降(bar)	0.1	0.4
