基于二级双回流的变压吸附捕碳工艺研究

doi:10.11949/0438-1157.20240608

摘要/Abstract

摘要：

碳捕获、利用与封存是应对全球气候变化的关键技术，而火电厂烟气是工业碳排放主要来源之一。变压吸附是常用的烟气捕碳工艺之一，已有的研究表明常规真空变压吸附难以获得满足指标的二氧化碳产品，双回流变压吸附可获得两种高纯度和回收率的产品，但生产能力较低。对此，基于文献数据对组成为N₂/CO₂=85%/15%的烟气进行了二级耦合工艺的模拟，探究了进料位置，吸附时长，空塔气速和轻、重回流量对工艺的影响。结果表明，吸附压力为一级200 kPa，二级105 kPa，解吸压力为一级30 kPa，二级2 kPa，进料位置距塔底与塔高比0.4，吸附时长90 s，空塔气速0.07 m/s，轻回流量5.5×10^-3 mol/s，重回流量1.1×10^-2 mol/s时，能得到96.42%的CO₂和99.93%的N₂，回收率96.22%和99.47%。此外，与文献对比，提出的二级工艺具有高生产能力和较低能耗。

关键词: 双回流, 变压吸附, 二氧化碳捕集, 硅胶, 烟道气, 数值模拟

Abstract:

Carbon capture, utilization, and storage technology is a key technology for addressing global climate change, and flue gas from thermal power plants is one of the main sources of industrial carbon emissions. The pressure swing adsorption process is one of the commonly used flue gas carbon capture processes. Existing studies have shown that conventional vacuum pressure swing adsorption is difficult to obtain carbon dioxide products that meet the indicators. Double reflux pressure swing adsorption can obtain two products with high purity and recovery rate, but the production capacity is low. For this purpose, using silica gel as the adsorbent, a simulation study was conducted on a two-stage process coupling the dual reflux pressure adsorption process and conventional vacuum pressure swing adsorption process for flue gas with a feed composition of N₂/CO₂=85%/15% based on literature data. The effects of feed position, adsorption time, gas velocity, light component reflux rate, and heavy component reflux rate on performance were explored. The results showed that when the adsorption pressure was 200 kPa for the first stage and 105 kPa for the second stage, the desorption pressure was 30 kPa for the first stage and 2 kPa for the second stage, the feed position was 0.4 times higher than the bottom, the adsorption time was 90 s, the gas velocity was 0.07 m/s, the reflux flow rate of light components is 5.5×10^-3 mol/s and the reflux flow rate of heavy components is 1.1×10^-2 mol/s, 96.42% CO₂ and 99.93% N₂ can be obtained, with recovery rates of 96.22% and 99.47%, respectively. In addition, compared with existing research results in the literature, the proposed two-stage process has high productivity and low energy consumption.

Key words: dual-reflux, pressure swing adsorption, CO₂ capture, silica gel, flue gas, numerical simulation

中图分类号:

TQ 028.1

姚佳逸, 张东辉, 唐忠利, 李文彬. 基于二级双回流的变压吸附捕碳工艺研究[J]. 化工学报, 2025, 76(2): 744-754.

Jiayi YAO, Donghui ZHANG, Zhongli TANG, Wenbin LI. Research on carbon capture by pressure swing adsorption based on two-stage dual reflux[J]. CIESC Journal, 2025, 76(2): 744-754.

图/表 19

表1 二级双回流变压吸附时序

Table 1 The schedule of the two-stage dual-reflux PSA process

工艺		时间/s
工艺		90	10	45	90	10	45
一级	bed 1	AD	ED	VU	PU	ER	PR
一级	bed 2	PU	ER	PR	AD	ED	VU
二级	bed 3	AD	ED	VU	VU	ER	PR
二级	bed 4	VU	ER	PR	AD	ED	VU

图1 二级双回流变压吸附流程图

Fig.1 The diagram of the two-stage dual-reflux PSA process

表2 CO2、N2在硅胶上的扩展型Langmuir 2拟合参数［25］

Table 2 Fitting parameters of extended Langmuir 2 model for CO2/N2 adsorption on silica gel［25］

参数	N₂	CO₂
IP₁/(kmol/(kg·kPa))	6.77×10^-10	6.07×10^-9
IP₂/K	2034.0	2435.0
IP₃/kPa^-1	2.01×10^-7	1.32×10^-6
IP₄/K	2034.0	2034.0
ΔH/(kJ/mol)	-17.08	-23.14

表3 吸附塔及吸附剂相关参数

Table 3 Parameters for column and adsorbent

参数	数值
H_b1/m	1.00
H_b2/m	0.52
D_b1/m	0.060
D_b2/m	0.025
W_t/m	0.002
r_p/m	0.002
ρ_b/(kg/m³)	785
k_w/(W/(m·K))	17
k_s/(W/(m·K))	0.3
k_g/(W/(m·K))	0.242
c_p_w/(kJ/(kg·K))	0.502
c_p_s/(kJ/(kg·K))	0.902
h_amb/(W/(m²·K))	60
ε_b	0.3125
ε_p	0.1429
ρ_w/(kg/m³)	7800
T_amb/K	298.15

表4 二级双回流变压吸附数学模型

Table 4 Mathematical models of the two-stage dual-reflux PSA process

模型方程		数学表达
质量平衡		$- ε_{b} D_{a x, i} \frac{\partial^{2} c_{i}}{\partial z^{2}} + \frac{\partial (v_{g} c_{i})}{\partial z} + [ε_{b} + (1 - ε_{b}) ε_{p}] \frac{\partial c_{i}}{\partial t} + ρ_{s} (1 - ε_{b}) \frac{\partial q_{i}}{\partial t} = 0$ $D_{a x, i} = 0.73 D_{m, i} + \frac{v_{g} r_{p}}{ε_{b} (1 + 9.49 \frac{ε_{b} D_{m, i}}{2 v_{g} r_{p}})}$	(1) (2)
能量平衡	气相	$- k_{g} \frac{\partial^{2} T_{g}}{\partial z^{2}} + c_{v g} v_{g} ρ_{g} \frac{\partial T_{g}}{\partial z} + ε_{b} c_{v g} ρ_{g} \frac{\partial T_{g}}{\partial t} + P \frac{\partial v_{g}}{\partial z} + h_{f} (T_{g} - T_{s}) + \frac{4 h_{w}}{D_{b}} (T_{g} - T_{0}) = 0$	(3)
	固相	$- k_{s} \frac{\partial^{2} T_{s}}{\partial z^{2}} + c_{p s} ρ_{s} \frac{\partial T_{s}}{\partial t} + ρ_{s} \sum_{i = 1}^{n} (c_{p a, i} q_{i}) \frac{\partial T_{s}}{\partial t} + ρ_{s} \sum_{i = 1}^{n} (Δ H_{i} \frac{\partial q_{i}}{\partial t}) - h_{f} (T_{g} - T_{s}) = 0$	(4)
	塔壁	$k_{w} \frac{\partial^{2} T_{w}}{\partial z^{2}} + c_{p w} ρ_{w} \frac{\partial T_{w}}{\partial z} - h_{w} \frac{4 D_{b}}{(D_{b} + W_{t})^{2} - D_{b}^{2}} (T_{g} - T_{w}) + h_{a m b} \frac{4 (D_{b} + W_{t})^{2}}{(D_{b} + W_{t})^{2} - D_{b}^{2}} (T_{w} - T_{a m b}) = 0$	(5)
动量平衡		$- \frac{\partial P}{\partial z} = \frac{150 μ (1 - ε_{b})^{2}}{ε_{b}^{3} (2 r_{p} {ψ)}^{2}} + 1.75 M \frac{(1 - ε_{b}) ρ_{g}}{2 r_{p} ψ ε_{b}^{3}} \|v_{g}\| v_{g}$	(6)
吸附平衡		$q_{i}^{*} = \frac{q_{m, i} b_{i} P_{i}}{1 + \sum_{i = 1}^{n} b_{i} P_{i}}$ ， $b_{i} = b_{0 i} e x p (- Δ H_{i} / R_{g} T)$ ， $- Δ H_{i} = R_{g} T {(\frac{\partial l n P_{i}}{\partial T})}_{q}$	(7)
吸附速率		$\frac{\partial q_{i}}{\partial t} = k_{L D F, i} (q_{i}^{} - q_{i}) = \frac{15 D_{e, i}}{r_{p}^{2}} (q_{i}^{} - q_{i})$ ， $D_{e, i} = \frac{ε_{p}}{τ} \times \frac{D_{k, i} D_{m, i}}{D_{k, i} + D_{m, i}}$ ， $D_{k, i} = 97.0 r_{p} \sqrt[]{(\frac{T}{M_{i}})}$	(8)
纯度		$Y_{i} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, i} d t}{\int_{0}^{t_{c y c l e}} F_{o u t} d t}$	(9)
回收率		$R_{i} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, i} d t}{\int_{0}^{t_{c y c l e}} F_{i n} {y_{i n}}_{, i} d t}$	(10)
生产能力		$p_{C O_{2}} = 3600 \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, C O_{2}} d t}{t_{c y c l e} m_{a d s o r b e n t s}}$	(11)
电耗		$W = \frac{\int_{0}^{t_{c y c l e}} \frac{V_{i n} P_{o u t} γ}{η (γ + 1)} [{(P_{o u t} / P_{i n})}^{1 - (1 / γ)} - 1] d t}{\int_{0}^{t_{c y c l e}} V_{p r o d u c t} y_{p r o d u c t} d t}$	(12)
阀门		$F = C_{V} (P_{i n} - P_{o u t})$	(13)

表4 二级双回流变压吸附数学模型

Table 4 Mathematical models of the two-stage dual-reflux PSA process

模型方程		数学表达
质量平衡		$- ε_{b} D_{a x, i} \frac{\partial^{2} c_{i}}{\partial z^{2}} + \frac{\partial (v_{g} c_{i})}{\partial z} + [ε_{b} + (1 - ε_{b}) ε_{p}] \frac{\partial c_{i}}{\partial t} + ρ_{s} (1 - ε_{b}) \frac{\partial q_{i}}{\partial t} = 0$ $D_{a x, i} = 0.73 D_{m, i} + \frac{v_{g} r_{p}}{ε_{b} (1 + 9.49 \frac{ε_{b} D_{m, i}}{2 v_{g} r_{p}})}$	(1) (2)
能量平衡	气相	$- k_{g} \frac{\partial^{2} T_{g}}{\partial z^{2}} + c_{v g} v_{g} ρ_{g} \frac{\partial T_{g}}{\partial z} + ε_{b} c_{v g} ρ_{g} \frac{\partial T_{g}}{\partial t} + P \frac{\partial v_{g}}{\partial z} + h_{f} (T_{g} - T_{s}) + \frac{4 h_{w}}{D_{b}} (T_{g} - T_{0}) = 0$	(3)
	固相	$- k_{s} \frac{\partial^{2} T_{s}}{\partial z^{2}} + c_{p s} ρ_{s} \frac{\partial T_{s}}{\partial t} + ρ_{s} \sum_{i = 1}^{n} (c_{p a, i} q_{i}) \frac{\partial T_{s}}{\partial t} + ρ_{s} \sum_{i = 1}^{n} (Δ H_{i} \frac{\partial q_{i}}{\partial t}) - h_{f} (T_{g} - T_{s}) = 0$	(4)
	塔壁	$k_{w} \frac{\partial^{2} T_{w}}{\partial z^{2}} + c_{p w} ρ_{w} \frac{\partial T_{w}}{\partial z} - h_{w} \frac{4 D_{b}}{(D_{b} + W_{t})^{2} - D_{b}^{2}} (T_{g} - T_{w}) + h_{a m b} \frac{4 (D_{b} + W_{t})^{2}}{(D_{b} + W_{t})^{2} - D_{b}^{2}} (T_{w} - T_{a m b}) = 0$	(5)
动量平衡		$- \frac{\partial P}{\partial z} = \frac{150 μ (1 - ε_{b})^{2}}{ε_{b}^{3} (2 r_{p} {ψ)}^{2}} + 1.75 M \frac{(1 - ε_{b}) ρ_{g}}{2 r_{p} ψ ε_{b}^{3}} \|v_{g}\| v_{g}$	(6)
吸附平衡		$q_{i}^{*} = \frac{q_{m, i} b_{i} P_{i}}{1 + \sum_{i = 1}^{n} b_{i} P_{i}}$ ， $b_{i} = b_{0 i} e x p (- Δ H_{i} / R_{g} T)$ ， $- Δ H_{i} = R_{g} T {(\frac{\partial l n P_{i}}{\partial T})}_{q}$	(7)
吸附速率		$\frac{\partial q_{i}}{\partial t} = k_{L D F, i} (q_{i}^{} - q_{i}) = \frac{15 D_{e, i}}{r_{p}^{2}} (q_{i}^{} - q_{i})$ ， $D_{e, i} = \frac{ε_{p}}{τ} \times \frac{D_{k, i} D_{m, i}}{D_{k, i} + D_{m, i}}$ ， $D_{k, i} = 97.0 r_{p} \sqrt[]{(\frac{T}{M_{i}})}$	(8)
纯度		$Y_{i} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, i} d t}{\int_{0}^{t_{c y c l e}} F_{o u t} d t}$	(9)
回收率		$R_{i} = \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, i} d t}{\int_{0}^{t_{c y c l e}} F_{i n} {y_{i n}}_{, i} d t}$	(10)
生产能力		$p_{C O_{2}} = 3600 \frac{\int_{0}^{t_{c y c l e}} F_{o u t} y_{o u t, C O_{2}} d t}{t_{c y c l e} m_{a d s o r b e n t s}}$	(11)
电耗		$W = \frac{\int_{0}^{t_{c y c l e}} \frac{V_{i n} P_{o u t} γ}{η (γ + 1)} [{(P_{o u t} / P_{i n})}^{1 - (1 / γ)} - 1] d t}{\int_{0}^{t_{c y c l e}} V_{p r o d u c t} y_{p r o d u c t} d t}$	(12)
阀门		$F = C_{V} (P_{i n} - P_{o u t})$	(13)

图2 单周期内一级吸附塔压力变化

Fig.2 Pressure curves of the first stage for one cycle

图3 单周期内二级吸附塔压力变化

Fig.3 Pressure curves of the second stage for one cycle

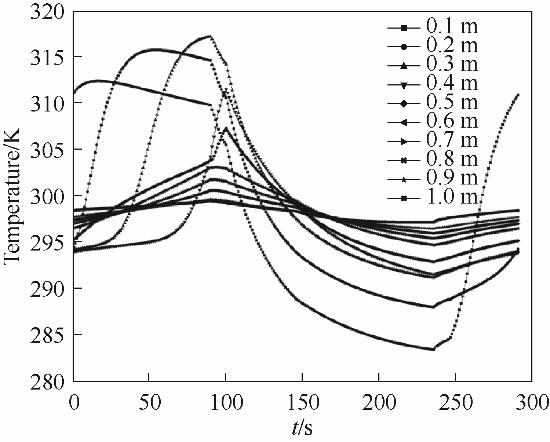

图4 一级吸附塔内温度随时间和轴向距离分布曲线

Fig.4 Temperature distribution curves of the first stage with time and axial distance

图5 二级吸附塔内温度随时间和轴向距离分布曲线

Fig.5 Temperature distribution curves of the second stage with time and axial distance

图6 一级CO2气相浓度分布

Fig.6 Concentration distribution of CO2 on gas phase of the first stage

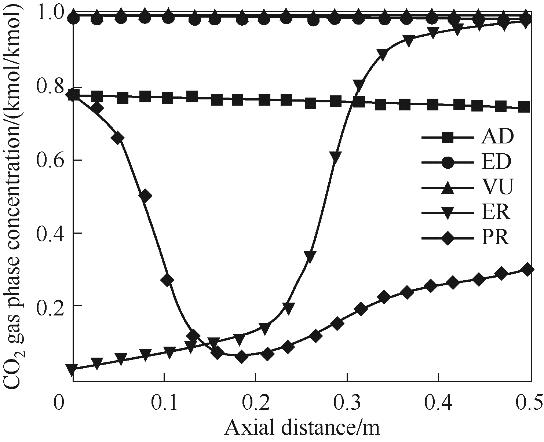

图7 二级CO2气相浓度分布

Fig.7 Concentration distribution of CO2 on gas phase of the second stage

图8 一级CO2固相浓度分布

Fig.8 Concentration distribution of CO2 on solid phase of the first stage

图9 二级CO2固相浓度分布

Fig.9 Concentration distribution of CO2 on solid phase of the second stage

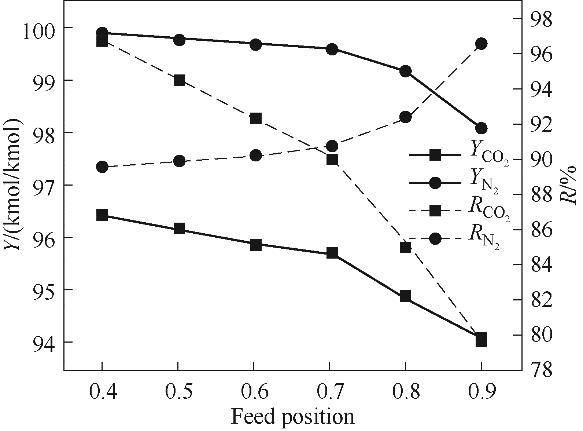

图10 进料位置对CO2、N2纯度和回收率的影响

Fig.10 Effect of feed position on purity and recovery of CO2 and N2

图11 吸附时间对CO2、N2纯度和回收率的影响

Fig.11 Effect of adsorption time on purity and recovery of CO2 and N2

图12 气体流速对CO2、N2纯度和回收率影响

Fig.12 Effect of gas velocity on purity and recovery of CO2 and N2

图13 轻组分回流量对CO2、N2纯度和回收率影响

Fig.13 Effect of light component reflux flow on purity and recovery of CO2 and N2

图14 重组分回流量对CO2、N2纯度和回收率影响

Fig.14 Effect of heavy component reflux flow on purity and recovery of CO2 and N2

表5 不同PSA捕碳工艺对比

Table 5 Comparison of different PSA processes for carbon capture

工艺	CO₂纯度/%	CO₂回收率/%	N₂纯度/%	N₂回收率/%	生产能力/( $m o l_{C O_{2}}$ /(h·kg_吸附剂))	能耗/（ $G J / t_{C O_{2}}$ ）
二级DR-PSA	96.42	96.22	99.93	99.47	1.05	1.69
二床六步DR-PSA^[25]	95.6	96.8	>98	>98	0.32	2.5
二床六步DR-PSA^[29]	95.55	96.81	—	—	0.89	2.5
三床七步VPSA^[30]	80.94	90.61	—	—	0.52	1.0

表5 不同PSA捕碳工艺对比

Table 5 Comparison of different PSA processes for carbon capture

工艺	CO₂纯度/%	CO₂回收率/%	N₂纯度/%	N₂回收率/%	生产能力/( $m o l_{C O_{2}}$ /(h·kg_吸附剂))	能耗/（ $G J / t_{C O_{2}}$ ）
二级DR-PSA	96.42	96.22	99.93	99.47	1.05	1.69
二床六步DR-PSA^[25]	95.6	96.8	>98	>98	0.32	2.5
二床六步DR-PSA^[29]	95.55	96.81	—	—	0.89	2.5
三床七步VPSA^[30]	80.94	90.61	—	—	0.52	1.0

参考文献 30

1	Liu X L, He Y X. Notice of retraction: a decomposition analysis on influencing factors of energy-related CO₂ emissions in China[C]//2010 IEEE International Conference on Advanced Management Science(ICAMS 2010). IEEE, 2010: 354-359.
2	刘冰, 孙伟娜, 安亚雄, 等. 带循环的二阶变压吸附碳捕集工艺模拟、实验及分析[J]. 化工学报, 2018, 69(11): 4788-4797.
	Liu B, Sun W N, An Y X, et al. Simulation, experimentation and analyzation of two stage pressure swing adsorption process for CO₂ capture[J]. CIESC Journal, 2018, 69(11): 4788-4797.
3	杨R T.吸附法气体分离[M]. 王树森, 译. 北京: 化学工业出版社, 1991: 244.
	Yang R T. Gas Separation by Adsorption Processes[M]. Wang S S, trans. Beijing: Chemical Industry Press, 1991: 244.
4	汪亚燕, 田彩霞, 丁兆阳, 等. 基于双回流变压吸附工艺的空气分离模拟及分析[J]. 化工学报, 2019, 70(10): 4002-4011.
	Wang Y Y, Tian C X, Ding Z Y, et al. Simulation and analysis of dual-reflux pressure swing adsorption for air separation[J]. CIESC Journal, 2019, 70(10): 4002-4011.
5	沈圆辉. 真空变压吸附沼气升级及二氧化碳捕集过程研究[D]. 天津: 天津大学, 2020.
	Shen Y H. Study on upgrading of biogas and carbon dioxide capture process by vacuum pressure swing adsorption[D]. Tianjin: Tianjin University, 2020.
6	孔德齐, 张莹莹, 武文玲, 等. 六塔变压吸附制氧工艺的模拟与分析[J]. 化工学报, 2023, 74(12): 4934-4944.
	Kong D Q, Zhang Y Y, Wu W L, et al. Simulation and analysis of oxygen production process by six-bed pressure swing adsorption process[J]. CIESC Journal, 2023, 74(12): 4934-4944.
7	Gutierrez-Ortega A, Melis A, Nomen R, et al. Parameter screening of a VPSA cycle with automated breakthrough control for carbon capture[J]. Fuel, 2023, 339: 127298.
8	Chen X, Wang J, Ren T S, et al. Novel exchanger type vacuum temperature swing adsorption for post-combustion CO₂ capture: process design and plant demonstration[J]. Separation and Purification Technology, 2023, 308: 122837.
9	Yu X X, Liu B, Shen Y H, et al. Design and experiment of high-productivity two-stage vacuum pressure swing adsorption process for carbon capturing from dry flue gas[J]. Chinese Journal of Chemical Engineering, 2022, 43: 378-391.
10	Wilkes M D, Brown S. Flexible CO₂ capture for open-cycle gas turbines via vacuum-pressure swing adsorption: a model-based assessment[J]. Energy, 2022, 250: 123805.
11	Cheng C Y, Kuo C C, Yang M W, et al. CO₂ capture from flue gas of a coal-fired power plant using three-bed PSA process[J]. Energies, 2021, 14(12): 3582.
12	Jaschik M, Tanczyk M, Jaschik J, et al. The performance of a hybrid VSA-membrane process for the capture of CO₂ from flue gas[J]. International Journal of Greenhouse Gas Control, 2020, 97: 103037.
13	Alibolandi M, Sadrameli S M, Rezaee F, et al. Separation of CO₂/N₂ mixture by vacuum pressure swing adsorption (VPSA) using zeolite 13X type and carbon molecular sieve adsorbents[J]. Heat and Mass Transfer, 2020, 56(6): 1985-1994.
14	Cui Y K, Xing Y, Tian J L, et al. Insights into the adsorption performance and separation mechanisms for CO₂ and CO on NaX and CaA zeolites by experiments and simulation[J]. Fuel, 2023, 337: 127179.
15	Kakiuchi T, Yajima T, Shigaki N, et al. Modeling and optimal design of multicomponent vacuum pressure swing adsorber for simultaneous separation of carbon dioxide and hydrogen from industrial waste gas[J]. Adsorption, 2023, 29(1): 9-27.
16	汪亚燕. 双回流变压吸附空气分离工艺的设计模拟[D]. 天津: 天津大学, 2020.
	Wang Y Y. Design and simulation of double reflux pressure swing adsorption air separation process[D]. Tianjin: Tianjin University, 2020.
17	田彩霞. 制氧吸附剂的合成与双回流变压吸附空气分离模拟实验研究[D]. 天津: 天津大学, 2018.
	Tian C X. Study on synthesis of oxygen-making adsorbent and simulation experiment of air separation by double reflux pressure swing adsorption[D]. Tianjin: Tianjin University, 2018.
18	鲁东东. 制氧吸附剂的合成与双回流真空变压吸附空分模拟[D]. 天津: 天津大学, 2014.
	Lu D D. Synthesis of oxygen-making adsorbent and air separation simulation of double reflux vacuum pressure swing adsorption[D]. Tianjin: Tianjin University, 2014.
19	May E F, Zhang Y, Saleman T L H, et al. Demonstration and optimisation of the four dual-reflux pressure swing adsorption configurations[J]. Separation and Purification Technology, 2017, 177: 161-175.
20	Tian C X, Fu Q, Ding Z Y, et al. Experiment and simulation study of a dual-reflux pressure swing adsorption process for separating N₂/O₂ [J]. Separation and Purification Technology, 2017, 189: 54-65.
21	Weh R, Xiao G K, Sadeghi Pouya E, et al. Helium recovery and purification by dual reflux pressure swing adsorption[J]. Separation and Purification Technology, 2022, 288: 120603.
22	Guo Y L, Gu X W, Hu G P, et al. Enrichment of low-grade methane by dual reflux vacuum swing adsorption[J]. Separation and Purification Technology, 2022, 301: 121907.
23	Lei Q H, Tang T, Xiong Y F, et al. Experimental verification of hydrogen isotope enrichment process by dual-column pressure swing and temperature swing adsorption[J]. Fusion Engineering and Design, 2021, 172: 112726.
24	Wakasugi R, Kodama A, Goto M, et al. Dual reflux PSA process applied to VOC recovery as liquid condensate[J]. Adsorption, 2005, 11(1): 561-566.
25	李冬冬. 双回流真空变压吸附分离CO₂/N₂实验和模拟研究[D]. 天津: 天津大学, 2017.
	Li D D. Experimental and simulation study on separation of CO₂/N₂ by double reflux vacuum pressure swing adsorption[D]. Tianjin: Tianjin University, 2017.
26	Khurana M, Farooq S. Simulation and optimization of a 6-step dual-reflux VSA cycle for post-combustion CO₂ capture[J]. Chemical Engineering Science, 2016, 152: 507-515.
27	Wawrzyńczak D, Majchrzak-Kucęba I, Srokosz K, et al. The pilot dual-reflux vacuum pressure swing adsorption unit for CO₂ capture from flue gas[J]. Separation and Purification Technology, 2019, 209: 560-570.
28	Reynolds S P, Mehrotra A, Ebner A D, et al. Heavy reflux PSA cycles for CO₂ recovery from flue gas(partⅠ): Performance evaluation[J]. Adsorption, 2008, 14(2): 399-413.
29	Shen Y H, Zhou Y, Li D D, et al. Dual-reflux pressure swing adsorption process for carbon dioxide capture from dry flue gas[J]. International Journal of Greenhouse Gas Control, 2017, 65: 55-64.
30	Wang Z G, Shen Y H, Zhang D H, et al. A comparative study of multi-objective optimization with ANN-based VPSA model for CO₂ capture from dry flue gas[J]. Journal of Environmental Chemical Engineering, 2022, 10(3): 108031.
