PVA杂化膜中小分子吸附和扩散行为的分子模拟

doi:10.11949/0438-1157.20240632

摘要/Abstract

摘要：

无机粒子掺杂聚乙烯醇（PVA）改性膜材料在渗透汽化酯化体系脱水方面展现出良好工业应用前景，但还缺乏微观层面的机理探究和基础理论数据。采用分子模拟手段构建了ZSM-5和ZIF-67两种粒子分别与PVA混合后的杂化材料分子结构模型，得到了无机粒子在PVA链段间的分布情况；利用Monte Carlo（MC）方法模拟了乙酸乙酯、水在PVA杂化材料中的吸附行为，考察了掺杂比例和温度对吸附量、吸附等温线的影响；利用分子动力学（MD）方法模拟了乙酸乙酯、水在杂化材料中的扩散行为，计算了杂化材料内部的自由体积分数（FFV），考察了掺杂比例和温度对小分子在杂化材料中扩散系数的影响。结果表明，两种杂化材料对水的吸附量显著高于酯，且ZSM-5/PVA材料对水的吸附量高于ZIF-67/PVA材料；水在两种杂化材料中的扩散系数大于乙酸乙酯，且由于ZSM-5/PVA材料具有更大的FFV，小分子在ZSM-5/PVA中的扩散系数远大于在ZIF-67/PVA中的扩散系数。本研究为PVA材料改性及传质分离提供了理论指导。

关键词: 分子模拟, ZSM-5, ZIF-67, PVA杂化膜, 吸附, 扩散, 渗透汽化

Abstract:

The inorganic particle-doped modified polyvinyl alcohol (PVA) membrane materials have promising industrial application prospects in pervaporation dehydration from esterification system. However, it is still lack of mechanism exploration in microscopic view and fundamental theoretical data. In this study, the molecular structure models of two types hybrid PVA materials doped with ZSM-5 and ZIF-67 respectively were constructed using molecular simulation method to elucidate distribution of inorganic particles in PVA chains. The Monte Carlo (MC) method was used to simulate the adsorption behavior of ethyl acetate and water in PVA hybrid materials, and the effects of doping ratio and temperature on adsorption amount and adsorption isotherm were investigated. The diffusion behavior of ethyl acetate and water in the hybrid materials and the fraction of free volume (FFV) within the hybrid materials were simulated by molecular dynamics (MD) method, and the influence of doping ratio and temperature on the diffusion coefficients of small molecules through the hybrid materials were investigated. The results showed that the adsorption of water in the two hybrid materials was significantly higher than that of ethyl acetate, and the adsorption of water in the ZSM-5/PVA was higher than that in ZIF-67/PVA. The diffusion coefficient of water in the two hybrid materials was significantly higher than that of ethyl acetate, and moreover, the diffusion coefficients of small molecules in ZSM-5/PVA were higher than those in ZIF-67/PVA because ZSM-5/PVA has higherFFV. It provides theoretical guidance for the modification of PVA materials and the mechanism of mass transfer separation.

Key words: molecular simulation, ZSM-5, ZIF-67, PVA hybrid membrane, adsorption, diffusion, pervaporation

中图分类号:

TQ 028.8

付敏, 陈子健, 汤帅, 钱锡亮, 危增曦, 邹昀, 童张法. PVA杂化膜中小分子吸附和扩散行为的分子模拟[J]. 化工学报, 2024, 75(11): 4152-4161.

Min FU, Zijian CHEN, Shuai TANG, Xiliang QIAN, Zengxi WEI, Yun ZOU, Zhangfa TONG. Molecular simulation of small molecule adsorption and diffusion behavior in PVA hybrid membranes[J]. CIESC Journal, 2024, 75(11): 4152-4161.

图/表 12

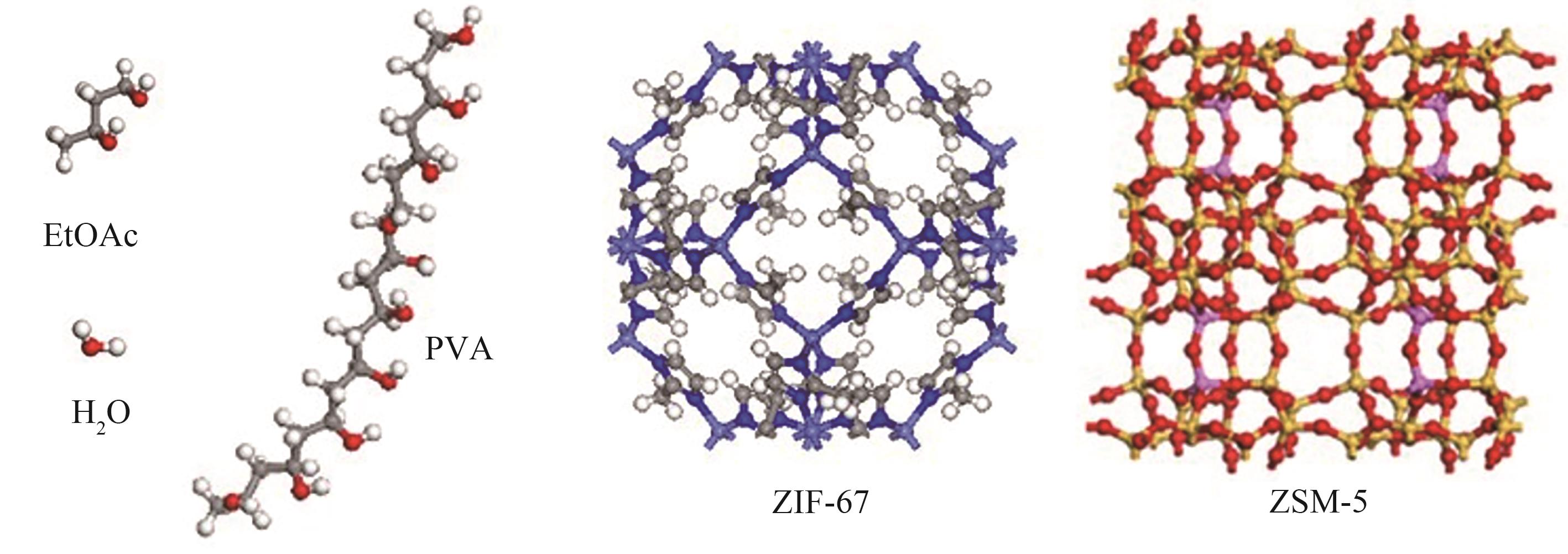

图1 小分子及PVA杂化体系的分子结构模型

Fig.1 Molecular structure models of small molecules and PVA hybrid systems

表1 用于吸附模拟的不同杂化比例的无机粒子/PVA体系

Table 1 Inorganic particle/PVA system with different hybridization ratios for adsorption simulation

项目	ZSM-5/PVA				ZIF-67/PVA
项目	0%ZSM-5/PVA	3%ZSM-5/PVA	6%ZSM-5/PVA	9%ZSM-5/PVA	0%ZIF-67/PVA	3%ZIF-67/PVA	6%ZIF-67/PVA	9%ZIF-67/PVA
PVA链段数	150	150	150	150	50	50	50	50
无机粒子个数	0	1	2	3	0	1	2	3

图2 ZSM-5/PVA和ZIF-67/PVA模型结构

Fig.2 Model structure of ZSM-5/PVA和ZIF-67/PVA

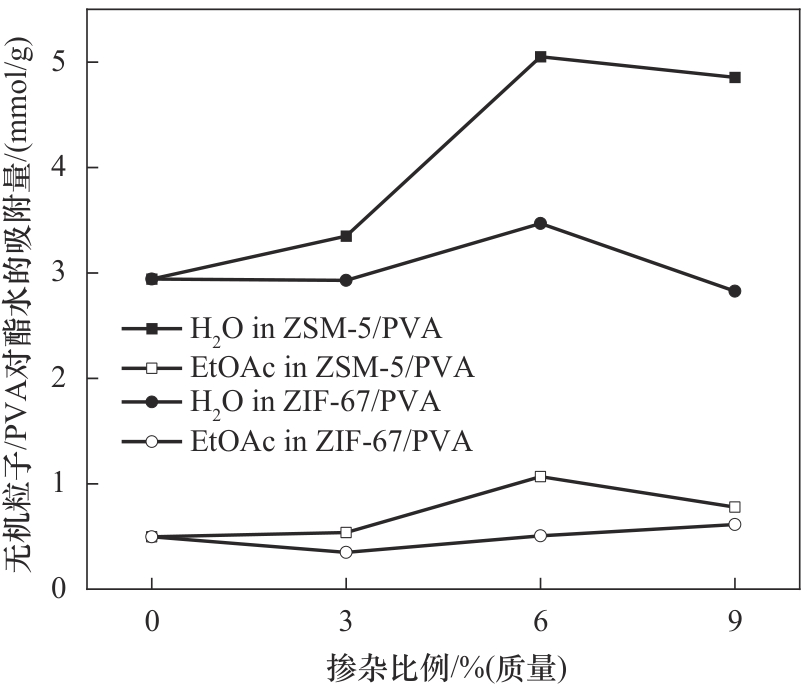

图3 ZSM-5/PVA和ZIF-6/PVA对乙酸乙酯/水分子的吸附量

Fig.3 Adsorption of EtOAc/H2O by ZSM-5/PVA and ZIF-6/PVA

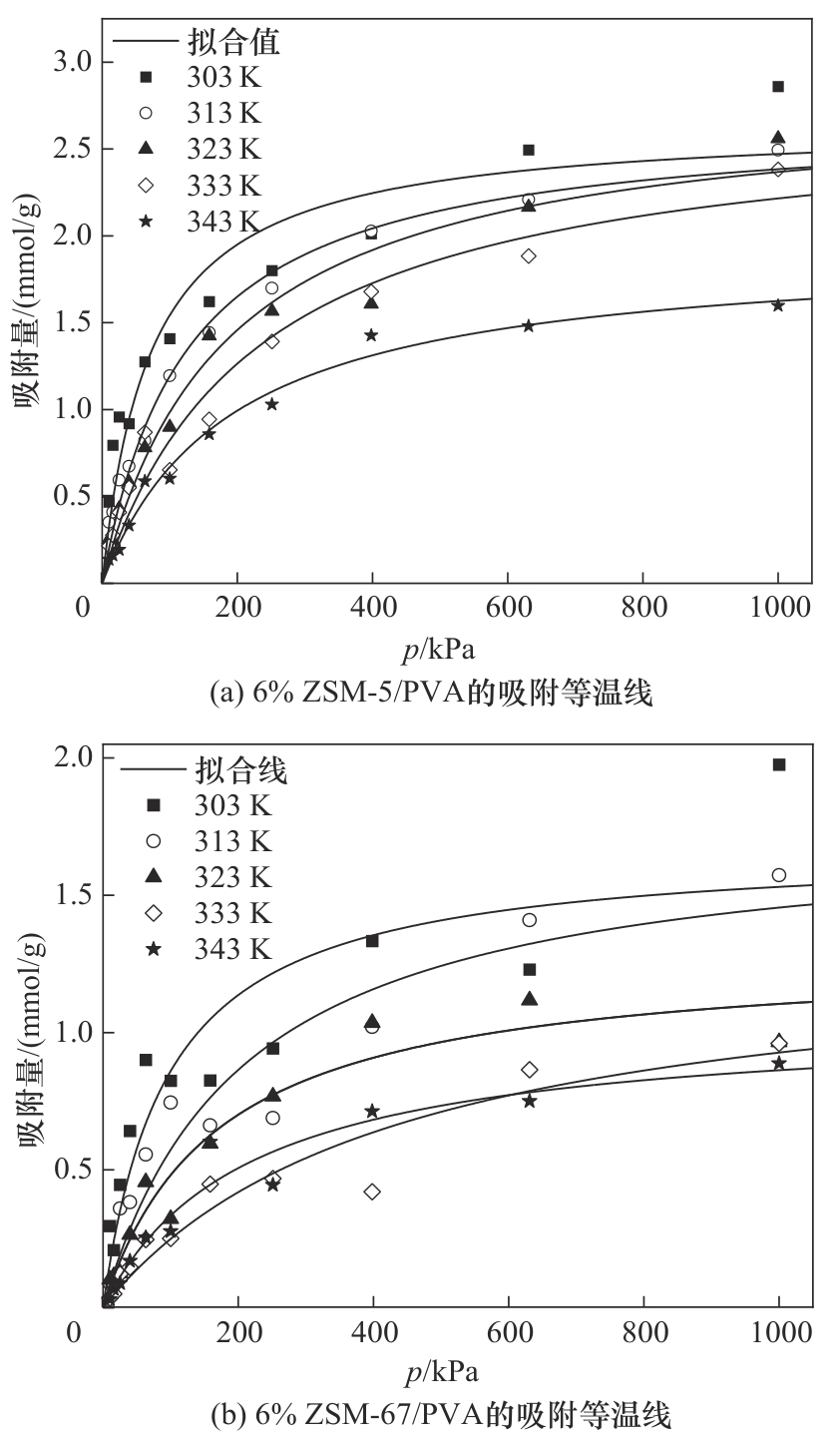

图4 不同温度下ZSM-5/PVA以及ZIF-67/PVA对水分子的吸附等温线

Fig.4 Adsorption isotherms of H2O on ZSM-5/PVA and ZIF-67/PVA at different temperatures

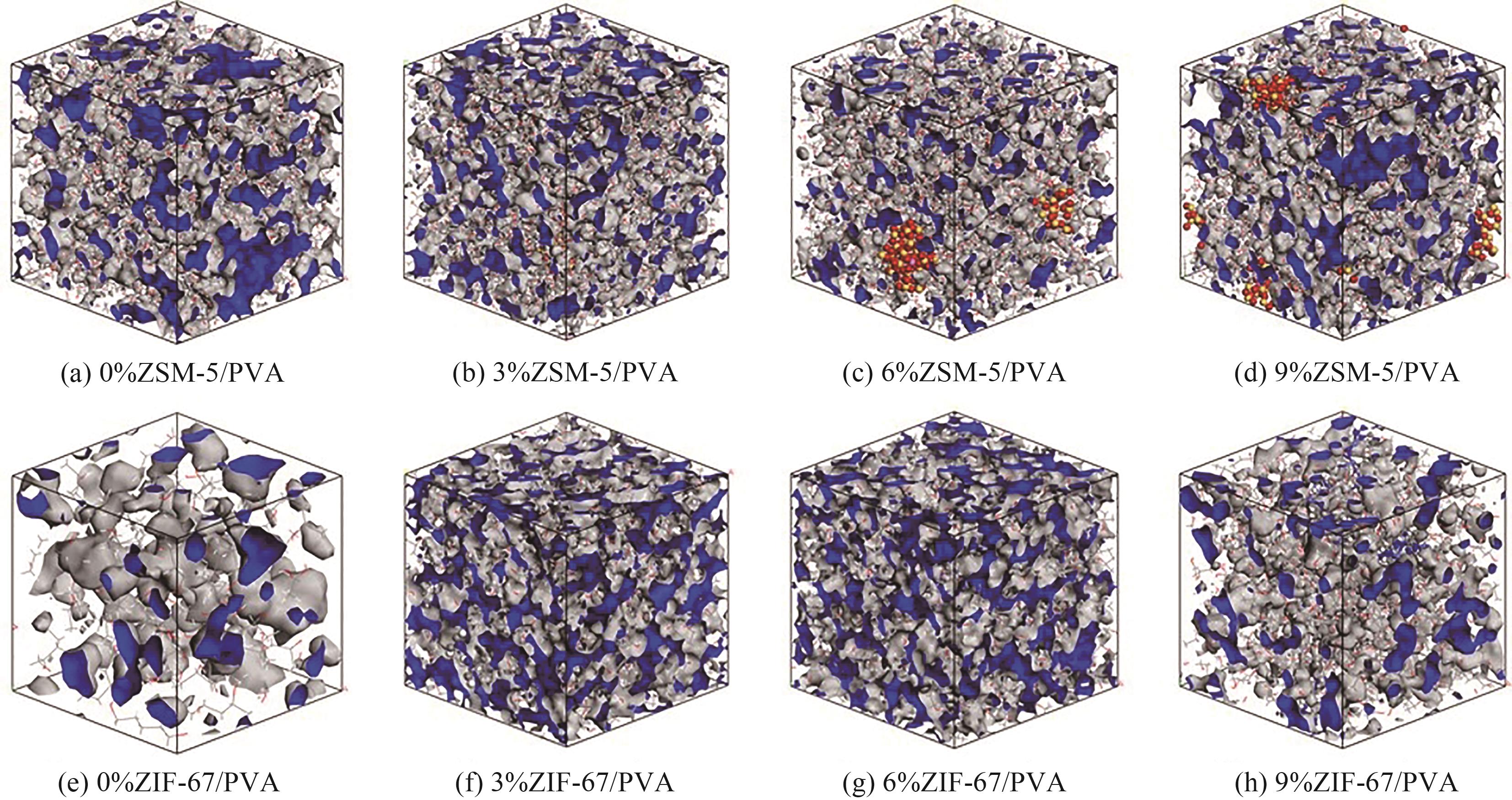

图5 不同分子结构模型内的自由体积

Fig.5 Free volume within different molecular structure models

表2 ZSM-5/PVA以及ZIF-67/PVA中的自由体积分数

Table 2 FFV in ZSM-5/PVA and ZIF-67/PVA

无机粒子掺杂比例/%(质量)	FFV/%
无机粒子掺杂比例/%(质量)	ZSM-5/PVA	ZIF-67/PVA
0	15.21	25.44
3	35.46	27.13
6	35.76	30.34
9	16.80	28.43

图6 ZSM-5/PVA、ZIF-67/PVA中的水、乙酸乙酯分子的运动轨迹

Fig.6 Trajectory of H2O and EtOAc in ZSM-5/PVA and ZIF-67/PVA

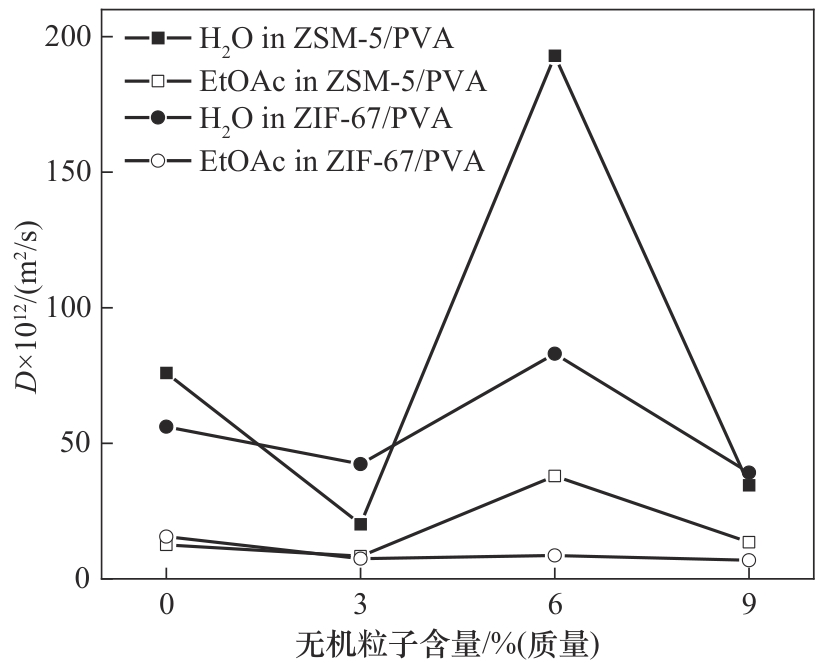

图7 无机粒子含量对纯酯、水分子在ZSM-5/PVA、ZIF-67/PVA中的扩散系数的影响

Fig.7 Effect of inorganic particle content on diffusion coefficient of pure ester and water molecules in ZSM-5/PVA and ZIF-67/PVA

表3 纯PVA中水分子的扩散系数D

Table 3 Diffusion coefficient D of water molecules in pure PVA

体系	水分子的扩散系数D×10¹²/(m²/s)
体系	模拟结果	实验结果^[35]
纯PVA	10~300	480~12670

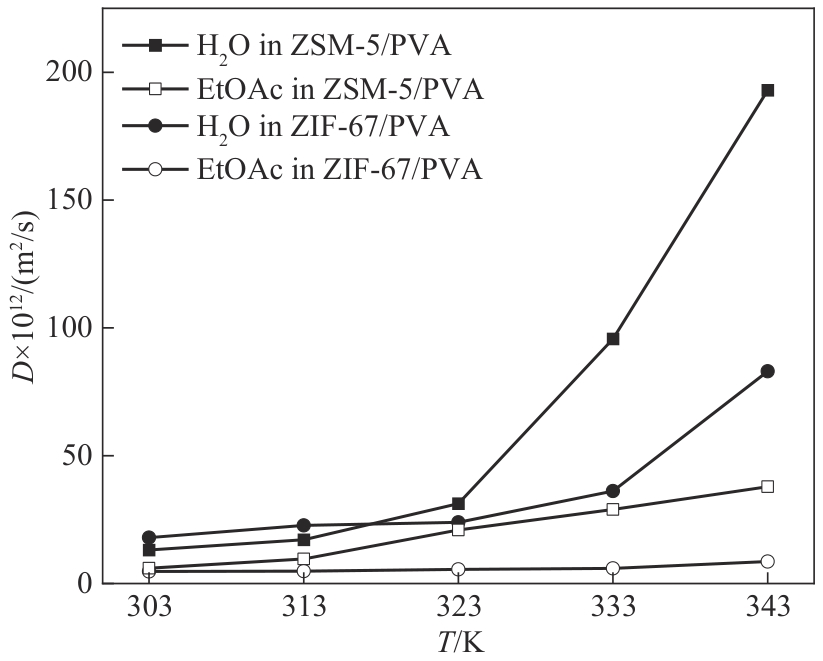

图8 温度对纯酯、水分子在ZSM-5/PVA、ZIF-67/PVA中的扩散系数的影响

Fig.8 Effect of temperature on diffusion coefficient of pure ester and water molecules in ZSM-5/PVA and ZIF-67/PVA

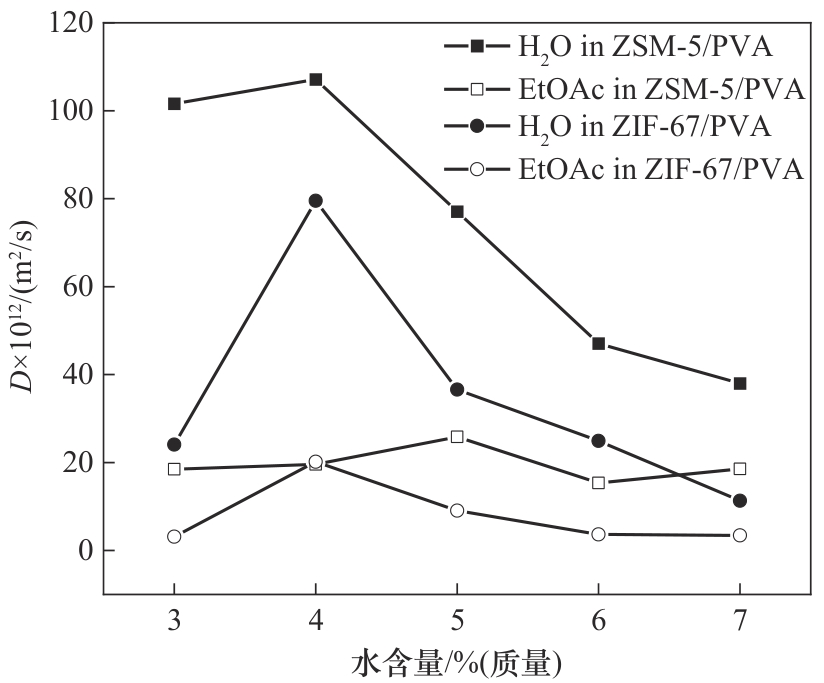

图9 不同组成酯水二元体系在ZSM-5/PVA、ZIF-67/PVA中的扩散系数

Fig.9 Diffusion coefficients of ester and water binary system in ZSM-5/PVA and ZIF-67/PVA at different concentration

参考文献 37

1	刘燕青, 胡听听, 鲁落义, 等. PDMS/ZSM-5膜的制备及渗透汽化分离水中乙酸正丁酯和乙酸乙酯[J]. 化工学报, 2020, 71(2): 843-853.
	Liu Y Q, Hu T T, Lu L Y, et al. Preparation of PDMS/ZSM-5 membranes and pervaporation separation of n-butyl acetate and ethyl acetate from aqueous media[J]. CIESC Journal, 2020, 71(2): 843-853.
2	Xia S S, Dong X L, Zhu Y X, et al. Dehydration of ethyl acetate-water mixtures using PVA/ceramic composite pervaporation membrane[J]. Separation and Purification Technology, 2011, 77(1): 53-59.
3	董颜箔, 何瑞宁, 牟春霞, 等. 离子液体催化反应精馏合成乙酸乙酯工艺模拟[J]. 化工进展, 2018, 37(2): 468-474.
	Dong Y B, He R N, Mu C X, et al. Process simulation of synthesis of ethyl acetate by reactive distillation catalyzed by ionic liquid[J]. Chemical Industry and Engineering Progress, 2018, 37(2): 468-474.
4	邹昀, 童张法, 刘琨, 等.间歇反应器内醋酸丁酯酯化反应与渗透汽化集成过程的模型计算[J]. 催化学报, 2010, 31(8): 999-1005.
	Zou Y, Tong Z F, Liu K, et al. Modeling of esterification in a batch reactor coupled with pervaporation for production of n-butyl acetate[J]. Chinese Journal of Catalysis, 2010, 31(8): 999-1005.
5	Alamaria A M, Nawawi M G M, Zamrud Z. Sago/PVA blend membranes for the recovery of ethyl acetate from water[J]. Arabian Journal of Chemistry, 2019, 12(8): 2183-2191.
6	Wu Q, Sun Y, Wang W, et al. Block copolymer pervaporation membranes with microphase separated structures for ethyl acetate separation[J]. Separation and Purification Technology, 2022, 298: 121654.
7	Ramaiah K P, Satyasri D, Sridhar S, et al. Removal of hazardous chlorinated VOCs from aqueous solutions using novel ZSM-5 loaded PDMS/PVDF composite membrane consisting of three hydrophobic layers[J]. Journal of Hazardous Materials, 2013, 261: 362-371.
8	Liu G P, Xiangli F J, Wei W, et al. Improved performance of PDMS/ceramic composite pervaporation membranes by ZSM-5 homogeneously dispersed in PDMS via a surface graft/coating approach[J]. Chemical Engineering Journal, 2011, 174(2/3): 495-503.
9	王维, 姜雪迎, 李悦, 等. 亲水型ZSM-5分子筛填充PVA膜及分离乙酸乙酯/水的应用[J]. 化工学报, 2020, 71(8): 3807-3818.
	Wang W, Jiang X Y, Li Y, et al. Application of PVA membrane filled with hydrophilic ZSM-5 molecular sieve on separation of water from ethyl acetate[J]. CIESC Journal, 2020, 71(8): 3807-3818.
10	Shi Q, Chen Z F, Song Z W, et al. Synthesis of ZIF-8 and ZIF-67 by steam-assisted conversion and an investigation of their tribological behaviors[J]. Angewandte Chemie International Edition, 2011, 50(3): 672-675.
11	Xu X, Nikolaeva D, Hartanto Y, et al. MOF-based membranes for pervaporation[J]. Separation and Purification Technology, 2021, 278: 119233.
12	鲁落义, 胡听听, 王维, 等. ZIF-67/PEBA杂化膜分离水中乙酸乙酯[J]. 高校化学工程学报, 2021, 35(2): 259-266.
	Lu L Y, Hu T T, Wang W, et al. ZIF-67/PEBA Hybrid membranes for ethyl acetate separation from aqueous solutions[J]. Journal of Chemical Engineering of Chinese Universities, 2021, 35(2): 259-266.
13	Sun H, Wang F K, Li X T, et al. Facile fabrication of a continuous ZIF-67 membrane for efficient azeotropic organic solvent mixture separation[J]. Angewandte Chemie International Edition, 2023, 62(15): e202300262.
14	Zhao Z J, Ding L, Hinterding R, et al. MXene assisted preparation of well-intergrown ZIF-67 membrane for helium separation[J]. Journal of Membrane Science, 2022, 652: 120432.
15	Contreras R, Muñoz-Espinoza J, Sánchez B. Theoretical models of solubility for organic solvents. A conceptual density functional theory approach[J]. Journal of Molecular Liquids, 2024, 403: 124736.
16	Zou Y, Liu Y Q, Muhammad Y, et al. Experimental and modelling studies of pervaporative removal of odorous diacetyl and S-methylthiobutanoate from aqueous solutions using PEBA membrane[J]. Separation and Purification Technology, 2018, 200: 1-10.
17	Liu Y Q, Hu T T, Zhao J H, et al. Synthesis and application of PDMS/OP-POSS membrane for the pervaporative recovery of n-butyl acetate and ethyl acetate from aqueous media[J]. Journal of Membrane Science, 2019, 591: 117324.
18	Gubbins K E, Liu Y-C, Moore J D, et al. The role of molecular modeling in confined systems: impact and prospects[J]. Physical Chemistry Chemical Physics, 2011, 13(1): 58-85.
19	Tamai Y, Tanaka H, Nakanishi K. Molecular simulation of permeation of small penetrants through membranes. 1. Diffusion coefficients[J]. Macromolecules, 1994, 27(16): 4498-4508.
20	朱宇, 陆小华, 丁皓, 等.分子模拟在化工应用中的若干问题及思考[J].化工学报, 2004, 55(8):1213-1223.
	Zhu Y, Lu X H, Ding H, et al. Molecular simulation in chemical engineering[J]. Journal of Chemical Industry and Engineering (China), 2004, 55(8):1213-1223.
21	吴凡, 彭旭东, 江锦波, 等. 分子动力学模拟预测天然气密度和黏度的可行性研究[J].化工学报, 2024, 75(2): 450-462.
	Wu F, Peng X D, Jiang J B, et al. Study on adaptability of molecular dynamics in predicting density and viscosity of natural gas[J]. CIESC Journal, 2024, 75(2): 450-462.
22	胡建波, 刘洪超, 胡齐, 等. 有机笼跨细胞膜易位行为的分子动力学模拟研究[J].化工学报, 2023, 74(9): 3756-3765.
	Hu J B, Liu H C, Hu Q, et al. Molecular dynamics simulation insight into translocation behavior of organic cage across the cellular membrane[J]. CIESC Journal, 2023, 74(9): 3756-3765.
23	Li X j, Lin B q, Xu H. Monte Carlo simulation of methane molecule adsorption on coal with adsorption potential[J]. International Journal of Mining Science and Technology, 2014, 24(1): 17-22.
24	Wang S, Feng Q H, Javadpour F, et al. Competitive adsorption of methane and ethane in montmorillonite nanopores of shale at supercritical conditions: a grand canonical Monte Carlo simulation study[J]. Chemical Engineering Journal, 2019, 355: 76-90.
25	王玉杰, 李申辉, 赵之平. M-MOF-74吸附分离H₂/He混合物的分子模拟研究[J].化工学报, 2022, 73(10): 4507-4517.
	Wang Y J, Li S H, Zhao Z P. Molecular simulation study on adsorption and separation of H₂/He mixtures by M-MOF-74[J]. CIESC Journal, 2022, 73(10): 4507-4517.
26	Pan F S, Peng F B, Jiang Z Y. Diffusion behavior of benzene/cyclohexane molecules in poly(vinyl alcohol)-graphite hybrid membranes by molecular dynamics simulation[J]. Chemical Engineering Science, 2007, 62(3): 703-710.
27	Pazirofteh M, Dehghani M, Niazi S, et al. Molecular dynamics simulation and Monte Carlo study of transport and structural properties of PEBA 1657 and 2533 membranes modified by functionalized POSS-PEG material[J]. Journal of Molecular Liquids, 2017, 241: 646-653.
28	Hou S Y, Tang Y L, Zhu T L, et al. The molecular simulation and experimental investigation of toluene and naphthalene adsorption on ordered porous silica[J]. Chemical Engineering Journal, 2022, 435: 134844.
29	Mozaffari Maid M, Kordzadeh-Kermani V, Ghalandari V, et al. Adsorption isotherm models: a comprehensive and systematic review (2010—2020) [J]. Science of The Total Environment, 2022, 812: 151334.
30	Cleeton C, de Oliveira F L, Neumann R F, et al. A process-level perspective of the impact of molecular force fields on the computational screening of MOFs for carbon capture[J]. Energy & Environmental Science, 2023, 16(9): 3899-3918.
31	周建海, 赵会玲, 胡军, 等. 氨基修饰微孔/介孔复合材料AM-5A-MCM-41对CO₂吸附分离的分子模拟[J]. 化工学报, 2014, 65(5): 1680-1687.
	Zhou J H, Zhao H L, Hu J, et al. Molecular simulation of CO₂ adsorption on amine modified micro/mesoporous composite of AM-5A-MCM-41[J]. CIESC Journal, 2014, 65(5): 1680-1687.
32	Jablonka K M, Ongari D, Smit B. Applicability of tail corrections in the molecular simulations of porous materials[J]. Journal of Chemical Theory and Computation, 2019, 15(10): 5635–5641.
33	Marry V, Ciccotti G. Trotter derived algorithms for molecular dynamics with constraints: velocity verlet revisited[J]. Journal of Computational Physics, 2007, 222(1): 428-440.
34	Yu P D, Schröter M, Sperl M. Velocity distribution of a homogeneously cooling granular gas[J]. Physical Review Letters, 2020, 124(20): 208007.
35	Tao L, He J L, Arbaugh T, et al. Machine learning prediction on the fractional free volume of polymer membranes[J]. Journal of Membrane Science, 2023, 665: 121131.
36	Zhang Q G, Liu Q L, Chen Y, et al. Microstructure dependent diffusion of water-ethanol in swollen poly(vinyl alcohol): a molecular dynamics simulation study[J]. Chemical Engineering Science, 2009, 64(2): 334-340.
37	Zhang Q G, Liu Q L, Jiang Z Y, et al. Anti-trade-off in dehydration of ethanol by novel PVA/APTEOS hybrid membranes[J]. Journal of Membrane Science, 2007, 287(2): 237-245.
