Construction and catalytic application of immobilized lipase microreactors based on cMOFs for the synthesis of mandelic acid

doi:10.11949/0438-1157.20240698

Abstract

Abstract:

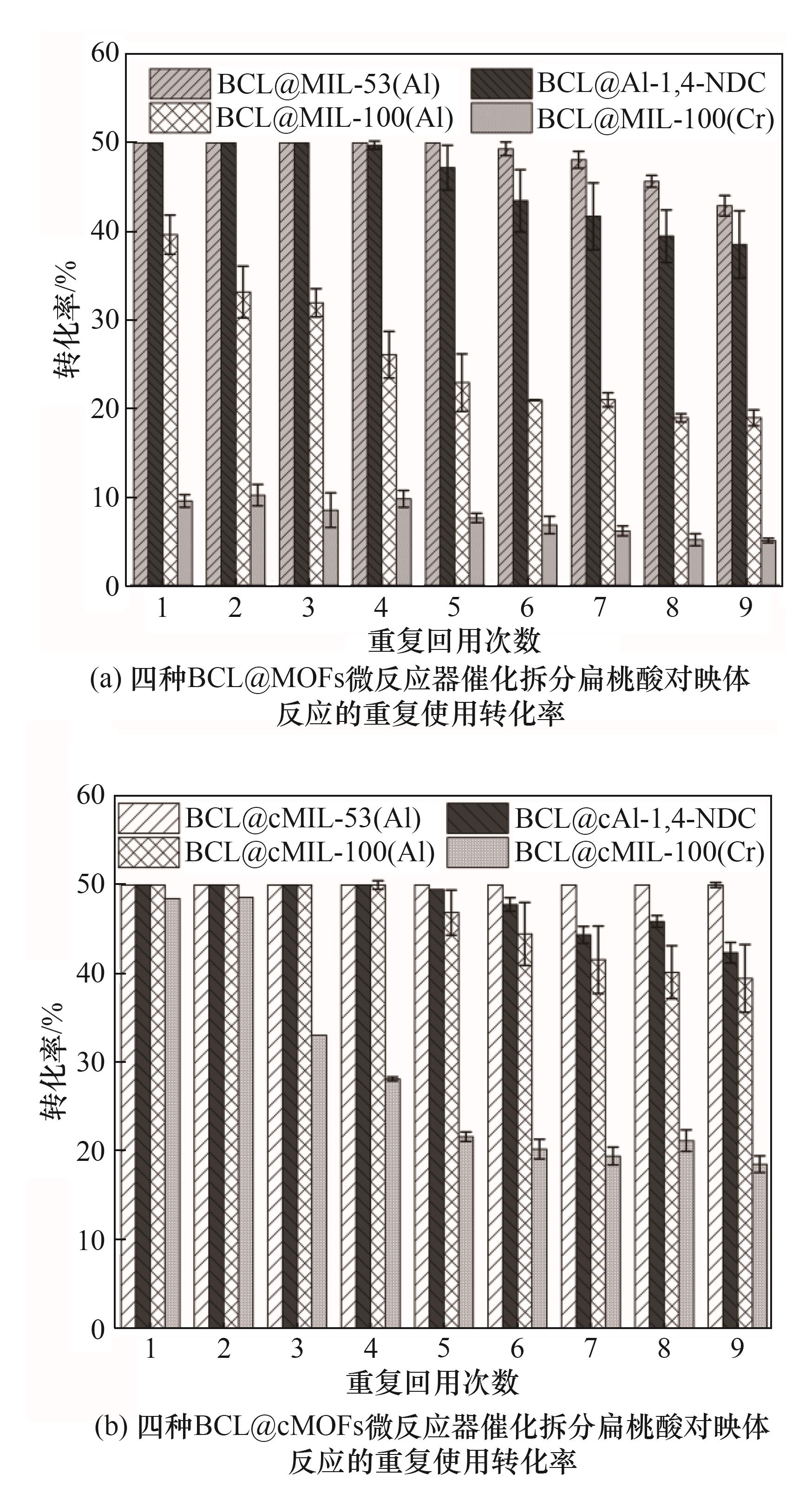

Different series of carbonized metal-organic frameworks (cMOFs) were prepared through high-temperature carbonization and applied for the fabrication of microreactors with Burkholderia cepacia lipase (BCL). The effects of pore structure and pore microenvironment on the immobilization performance of BCL were studied, and the performance of these microreactors in catalytic resolution of mandelic acid enantiomers was explored. The results indicated that the cMIL-53(Al) material from cMOFs exhibited the best immobilization performance for BCL, maintaining a (R)-mandelic acid conversion rate of 50% and an enantiomeric excess (ee_p) value over 99% in nine consecutive catalytic cycles, with an enzyme selectivity (E) value greater than 200. The high-temperature carbonized cMIL-53(Al) showed increased inter-pore structure, allowing BCL to effectively enter the cMOF structure and increase the spatial activity sites of BCL. Additionally, its surface is rich in carboxyl functional groups, enabling BCL to adsorb and immobilize through hydrogen bonding, significantly enhancing the catalytic efficiency. Compared to traditional organic base catalysis methods, the enzyme-immobilized microreactors proposed in this study have the advantages of reusability, short catalytic time, ease of product purification and separation, and lower environmental pollution. This provides a new strategy for the construction of novel enzyme-immobilized functional materials.

Key words: metal-organic framework, carbonization, composites, kinetics, microreactor, immobilized enzyme

摘要：

通过高温碳化制备不同系列碳化金属有机骨架（carbonized metal-organic frameworks，cMOFs），应用于制备洋葱伯克霍尔德菌脂解酶（BCL）微反应器，研究了孔结构和孔道微环境对BCL固定化性能的影响，探索了这些微反应器催化拆分扁桃酸对映体反应的性能。结果表明：cMOFs中的cMIL-53（Al）材料对BCL固定性能最佳，且在循环使用九次后，仍保持（R）-扁桃酸转化率（C）为50%，产物的对映体过剩量（ee_p）超过99%，酶选择因子（E）大于200。通过一系列表征发现，经高温碳化处理的cMIL-53（Al）孔间结构增大，有利于BCL进入cMOF微孔结构，增加BCL空间活性位点；同时煅烧使其表面羧酸官能团含量增加，有利于BCL通过氢键与其表面进行吸附固定，最终明显提高拆分催化性能。相较于传统的有机碱催化方法，本研究提出的酶固定化微反应器具有可重复使用、催化时间短、产物易于纯化分离以及环境污染较低等优点，为新型酶固定功能材料构建提供了新的策略。

关键词: 金属有机骨架材料, 碳化, 复合材料, 动力学, 微反应器, 固定化酶

CLC Number:

TB 333

Yuanhua LI, Siqi LING, Kejun FENG, Ying FENG, Yuching KUO, Shihhuan HSIEH. Construction and catalytic application of immobilized lipase microreactors based on cMOFs for the synthesis of mandelic acid[J]. CIESC Journal, 2025, 76(3): 1170-1179.

李远华, 凌思棋, 封科军, 冯颖, 郭于菁, 谢世桓. 基于cMOFs的固定化脂肪酶微反应器的构筑及其扁桃酸催化应用[J]. 化工学报, 2025, 76(3): 1170-1179.

Figures/Tables 12

References 30

1	Liu S, Bilal M, Rizwan K, et al. Smart chemistry of enzyme immobilization using various support matrices—a review[J]. International Journal of Biological Macromolecules, 2021, 190: 396-408.
2	朱浩天, 金美秀, 唐文思, 等. 过渡金属-联咪唑-Dawson型钨磷酸盐杂化化合物的酶固定化性能[J]. 高等学校化学学报, 2022, 43(11): 52-62.
	Zhu H T, Jin M X, Tang W S, et al. Properties of transition metal-biimidazole-Dawson-type tungstophosphate hybrid compounds as supports for enzyme immobilization[J]. Chemical Journal of Chinese Universities, 2022, 43(11): 52-62.
3	Zhang J, Li Y B, Zhang T, et al. Improving pesticide residue detection: immobilized enzyme microreactor embedded in microfluidic paper-based analytical devices[J]. Food Chemistry, 2024, 439: 138179.
4	Csuka P, Boros Z, Őrfi L, et al. Chemoenzymatic route to Tyrphostins involving lipase-catalyzed kinetic resolution of 1-phenylethanamine with alkyl cyanoacetates as novel acylating agents[J]. Tetrahedron: Asymmetry, 2015, 26(12/13): 644-649.
5	Bilal M, Rashid E U, Munawar J, et al. Magnetic metal-organic frameworks immobilized enzyme-based nano-biocatalytic systems for sustainable biotechnology[J]. International Journal of Biological Macromolecules, 2023, 237: 123968.
6	Alvarado-Ramírez L, Machorro-García G, López-Legarrea A, et al. Metal-organic frameworks for enzyme immobilization and nanozymes: a laccase-focused review[J]. Biotechnology Advances, 2024, 70: 108299.
7	范铮, 唐咸昌, 张旭, 等. 金属有机骨架材料载体用于酶固定化的研究进展[J]. 化工进展, 2019, 38(10): 4606-4613.
	Fan Z, Tang X C, Zhang X, et al. Progress of on enzyme immobilization with metal-organic frameworks[J]. Chemical Industry and Engineering Progress, 2019, 38(10): 4606-4613.
8	Cheong L Z, Wei Y Y, Wang H B, et al. Facile fabrication of a stable and recyclable lipase@amine-functionalized ZIF-8 nanoparticles for esters hydrolysis and transesterification[J]. Journal of Nanoparticle Research, 2017, 19(8): 280.
9	Chen X L, Xue S, Lin Y L, et al. Immobilization of porcine pancreatic lipase onto a metal-organic framework, PPL@MOF: a new platform for efficient ligand discovery from natural herbs[J]. Analytica Chimica Acta, 2020, 1099: 94-102.
10	张彦, 汪伟, 谢锐, 等. 负载酶@ZIF-8复合物的聚合物微颗粒可控制备[J]. 化工进展, 2022, 41(4): 2022-2028.
	Zhang Y, Wang W, Xie R, et al. Controllable fabrication of polymeric microparticles loaded with enzyme@ZIF-8[J]. Chemical Industry and Engineering Progress, 2022, 41(4): 2022-2028.
11	Naghdi E, Ahmadloo R, Shadi M, et al. Chiral purification by enantioselective extraction: principles and recent development[J]. Trends in Environmental Analytical Chemistry, 2023, 40: e00219.
12	Yang H, Yu H X, Stolarzewicz I A, et al. Enantioselective transformations in the synthesis of therapeutic agents[J]. Chemical Reviews, 2023, 123(15): 9397-9446.
13	Han Z S, Wang K Y, Min H, et al. Bifunctionalized metal-organic frameworks for pore-size-dependent enantioselective sensing[J]. Angewandte Chemie International Edition, 2022, 61(25): e202204066.
14	Liu L H, Shih Y H, Liu W L, et al. Enzyme immobilized on nanoporous carbon derived from metal-organic framework: a new support for biodiesel synthesis[J]. ChemSusChem, 2017, 10(7): 1364-1369.
15	Whitesell J K, Reynolds D. Resolution of chiral alcohols with mandelic acid[J]. The Journal of Organic Chemistry, 1983, 48(20): 3548-3551.
16	Dehghani Z, Akhond M, Hormozi Jangi S R, et al. Highly sensitive enantioselective spectrofluorimetric determination of R-/S-mandelic acid using l-tryptophan-modified amino-functional silica-coated N-doped carbon dots as novel high-throughput chiral nanoprobes[J]. Talanta, 2024, 266: 124977.
17	Cao Y, Wu S S, Li J H, et al. Highly efficient resolution of mandelic acid using lipase from Pseudomonas stutzeri LC2-8 and a molecular modeling approach to rationalize its enantioselectivity[J]. Journal of Molecular Catalysis B: Enzymatic, 2014, 99: 108-113.
18	Pan Y, Tang K W, He C Q, et al. Effect of alcohol chain length on the enzymatic resolution of racemic mandelic acid and kinetic study[J]. Biotechnology and Applied Biochemistry, 2014, 61(3): 274-279.
19	Yao C J, Cao Y, Wu S S, et al. An organic solvent and thermally stable lipase from burkholderia ambifaria YCJ01: purification, characteristics and application for chiral resolution of mandelic acid[J]. Journal of Molecular Catalysis B: Enzymatic, 2013, 85: 105-110.
20	Loiseau T, Serre C, Huguenard C, et al. A rationale for the large breathing of the porous aluminum terephthalate (MIL-53) upon hydration[J]. Chemistry-A European Journal, 2004, 10(6): 1373-1382.
21	Comotti A, Bracco S, Sozzani P, et al. Nanochannels of two distinct cross-sections in a porous Al-based coordination polymer[J]. Journal of the American Chemical Society, 2008, 130(41): 13664-13672.
22	García Márquez A, Demessence A, Platero-Prats A E, et al. Green microwave synthesis of MIL-100(Al, Cr, Fe) nanoparticles for thin-film elaboration[J]. European Journal of Inorganic Chemistry, 2012, (32): 5165-5174.
23	Hu H, Bhowmik P, Zhao B, et al. Determination of the acidic sites of purified single-walled carbon nanotubes by acid-base titration[J]. Chemical Physics Letters, 2001, 345(1/2): 25-28.
24	Chen S, Liu F Y, Zhang K, et al. An efficient enzymatic aminolysis for kinetic resolution of aromatic α-hydroxyl acid in non-aqueous media[J]. Tetrahedron Letters, 2016, 57(48): 5312-5314.
25	Ma X Y, Tan J Y, Li Z H, et al. Fabrication of stable MIL-53(Al) for excellent removal of rhodamine B[J]. Langmuir, 2022, 38(3): 1158-1169.
26	Kuo Y C, Pal S, Li F Y, et al. Polystyrene-supported core-shell beads with aluminium MOF coating for extraction of organic pollutants[J]. Chemistry-An Asian Journal, 2019, 14(20): 3675-3681.
27	Matus C, Baeza P, Serrano-Lotina A, et al. Removal of pharmaceuticals from an aqueous matrix by adsorption on metal-organic framework MIL-100(Cr)[J]. Water, Air, & Soil Pollution, 2023, 234(11): 718.
28	Dąbkowska K, Szewczyk K W. Influence of temperature on the activity and enantioselectivity of Burkholderia cepacia lipase in the kinetic resolution of mandelic acid enantiomers[J]. Biochemical Engineering Journal, 2009, 46(2): 147-153.
29	Kim K K, Song H K, Shin D H, et al. The crystal structure of a triacylglycerol lipase from Pseudomonas cepacia reveals a highly open conformation in the absence of a bound inhibitor[J]. Structure, 1997, 5(2): 173-185.
30	Cao S L, Huang Y M, Li X H, et al. Preparation and characterization of immobilized lipase from Pseudomonas cepacia onto magnetic cellulose nanocrystals[J]. Scientific Reports, 2016, 6: 20420.

反应温度/℃	C/%	ee_p/%	ee_s/%	E
25	38.7	>99	74.2	>200
50	50.0	>99	>99	>200

反应温度/℃	C/%	ee_p/%	ee_s/%	E
25	38.7	>99	74.2	>200
50	50.0	>99	>99	>200

BCL/mg	C/%	ee_p/%	ee_s/%	E
2	15.7	>99	21.4	>200
5	32.0	>99	54.2	>200
10	50.0	>99	>99	>200
15	40.3	>99	67.3	>200

BCL/mg	C/%	ee_p/%	ee_s/%	E
2	15.7	>99	21.4	>200
5	32.0	>99	54.2	>200
10	50.0	>99	>99	>200
15	40.3	>99	67.3	>200

反应时间/h	C/%	ee_p/%	ee_s/%	E
0.5	50.0	>99	>99	>200
2	50.0	>99	>99	>200
5	50.0	>99	>99	>200
