Vapor-liquid equilibrium study of R1150+R1234ze(E) binary system at 223.15—253.15 K

doi:10.11949/0438-1157.20241385

Abstract

Abstract:

R1150 exhibits high latent heat and evaporation pressure, whereas R1234ze(E) is environmentally friendly and boasts excellent thermal performance. Consequently, the binary mixture of R1150 and R1234ze(E) presents a potentially valuable working fluid pair. However, the limited data on its vapor-liquid equilibrium has hindered its practical engineering applications. To address this, this study investigates the vapor-liquid phase equilibrium of the R1150+R1234ze(E) binary mixture. A static analysis method was employed in the experimental system, achieving a temperature uncertainty of 4.2 mK and a pressure uncertainty of 0.001 MPa. The vapor-liquid equilibrium data for the R1150+R1234ze(E) binary mixture were measured within the temperature range of 223.15 K to 253.15 K and correlated using the PR-MHV1-NRTL and PR-WS-NRTL models. The results demonstrated good consistency when compared with experimental data.

Key words: phase equilibrium, vapor-liquid equilibrium, mixture, model, R1150, R1234ze(E)

摘要：

R1150具有较高的蒸发潜热和蒸发压力，R1234ze(E)具有环境友好性和完善的热力性能，因此，R1150与R1234ze(E)的二元混合物作为一种潜在的工质对，具有重要的应用价值。然而，由于相关汽液相平衡数据的缺乏，该混合工质在实际工程中的应用受到了限制。本文采用一套静态分析法的装置对二元混合工质R1150+R1234ze(E)在223.15~253.15 K温区的汽液相平衡进行了研究。并应用PR-MHV1-NRTL和PR-WS-NRTL两种模型对实验数据进行关联，结果显示模型与实验值具有良好的一致性。

关键词: 相平衡, 汽液平衡, 混合物, 模型, R1150, R1234ze(E)

CLC Number:

TK 123

Hao LIU, Lin WANG, Hao DING, Jiayi GENG. Vapor-liquid equilibrium study of R1150+R1234ze(E) binary system at 223.15—253.15 K[J]. CIESC Journal, 2025, 76(S1): 1-8.

刘豪, 王林, 丁昊, 耿嘉怡. R1150+R1234ze（E）二元体系223.15~253.15 K汽液相平衡研究[J]. 化工学报, 2025, 76(S1): 1-8.

Figures/Tables 8

References 30

1	Kitanovski A, Plaznik U, Tomc U, et al. Present and future caloric refrigeration and heat-pump technologies[J]. International Journal of Refrigeration, 2015, 57: 288-298.
2	Pan C, Dai Y D, Yi Y W, et al. Vapor-liquid equilibrium modeling for binary system of R152a/R1234ze(E)[J]. Chinese Journal of Chemical Engineering, 2023, 62: 124-131.
3	杨文娟, 张华, 郝文洋. 新型环保工质R1233zd(E)的研究进展[J]. 制冷技术, 2021, 41(6): 79-86.
	Yang W J, Zhang H, Hao W Y. Research progress of new environmentally friendly working fluid R1233zd(E)[J]. Chinese Journal of Refrigeration Technology, 2021, 41(6): 79-86.
4	卢天宇, 马国远, 李想, 等. 履约基加利修正案的家用空调制冷剂替代方案解析[J]. 制冷学报, 2024, 45(4): 14-20.
	Lu T Y, Ma G Y, Li X, et al. Analysis of refrigerant substitution scheme for household air conditioning under Kigali amendment[J]. Journal of Refrigeration, 2024, 45(4):14-20.
5	Zhao Y X, Gong M Q, Dong X Q, et al. (Vapor+liquid+liquid) equilibrium measurements and correlation for{1, 1, 2, 2-tetrafluoroethane (R134)+isobutane (R600a)} system[J]. The Journal of Chemical Thermodynamics, 2014, 78: 182-188.
6	Li X, Pang Q C, Liu J J, et al. Isothermal vapour-liquid equilibrium data for environmentally friendly binary system{R1234ze(E) + R245fa}[J]. The Journal of Chemical Thermodynamics, 2022, 175: 106894.
7	Sarbu I. A review on substitution strategy of non-ecological refrigerants from vapour compression-based refrigeration, air-conditioning and heat pump systems[J]. International Journal of Refrigeration, 2014, 46: 123-141.
8	Wang Y X, Wang X, Zhao Y X, et al. Binary mixture isothermal vapour-liquid equilibrium: trifluoromethane (R23) + octafluoropropane (R218) at the temperature from 223.150 K to 263.150 K[J]. The Journal of Chemical Thermodynamics, 2021, 162: 106567.
9	Wang X, Zhao Y X, Dong X Q, et al. The investigation on the vapor-liquid phase equilibrium of (trifluoromethane + difluoromethane) system at temperatures ranging from (223.150 to 273.150) K[J]. The Journal of Chemical Thermodynamics, 2020, 142: 105996.
10	Ramírez-Hernández H G, Morales-Fuentes A, Sánchez-Cruz F A, et al. Experimental study on the operating characteristics of a display refrigerator phasing out R134a to R1234ze(E) and its binary blends[J]. International Journal of Refrigeration, 2022, 138: 1-12.
11	Meng X Y, Hu X Z, Yang T, et al. Vapor liquid equilibria for binary mixtures of difluoromethane (R32) + fluoroethane (R161) and fluoroethane (R161) + trans-1,3,3,3-tetrafluoropropene (R1234ze(E))[J]. The Journal of Chemical Thermodynamics, 2018, 118: 43-50.
12	Mota-Babiloni A, Navarro-Esbrí J, Molés F, et al. A review of refrigerant R1234ze(E) recent investigations[J]. Applied Thermal Engineering, 2016, 95: 211-222.
13	Lai N A. Equations of state for HFO-1234ze(E) and their application in the study on refrigeration cycle[J]. International Journal of Refrigeration, 2014, 43: 194-202.
14	Liu Y, Valtz A, El Abbadi J, et al. Isothermal vapor-liquid equilibrium measurements for the (R1234ze(E) + ethane) system at temperatures from 272.27 to 347.52 K[J]. Journal of Chemical & Engineering Data, 2018, 63(11): 4185-4192.
15	Nawaz K, Shen B, Elatar A, et al. R1234yf and R1234ze(E) as low-GWP refrigerants for residential heat pump water heaters[J]. International Journal of Refrigeration, 2017, 82: 348-365.
16	Bellair R J, Hood L. Comprehensive evaluation of the flammability and ignitability of HFO-1234ze[J]. Process Safety and Environmental Protection, 2019, 132: 273-284.
17	Juntarachat N, Valtz A, Coquelet C, et al. Experimental measurements and correlation of vapor-liquid equilibrium and critical data for the CO₂ + R1234yf and CO₂ + R1234ze(E) binary mixtures[J]. International Journal of Refrigeration, 2014, 47: 141-152.
18	Longo G A, Zilio C, Righetti G, et al. Condensation of the low GWP refrigerant HFO1234ze(E) inside a brazed plate heat exchanger[J]. International Journal of Refrigeration, 2014, 38: 250-259.
19	Mota-Babiloni A, Navarro-Esbrí J, Barragán-Cervera Á, et al. Analysis based on EU Regulation No₅₁₇/2014 of new HFC/HFO mixtures as alternatives of high GWP refrigerants in refrigeration and HVAC systems[J]. International Journal of Refrigeration, 2015, 52: 21-31.
20	Yang Z Q, Valtz A, Coquelet C, et al. Experimental measurement and modelling of vapor-liquid equilibrium for 3, 3, 3- trifluoropropene (R1243zf) and trans-1, 3, 3, 3-tetrafluoropropene (R1234ze(E)) binary system[J]. International Journal of Refrigeration, 2020, 120: 137-149.
21	Liao Y, Dai Y D, Xu C P. Experimental investigation on vapor-liquid equilibrium for 1, 1-difluoroethane(R152a) +trans-1, 3, 3, 3-tetrafluoropropene (R1234ze(E)) binary systems[J]. The Journal of Chemical Thermodynamics, 2022, 175: 106899.
22	Yang W, He G G, Zhang Z H, et al. Vapor-liquid equilibrium for the binary mixed refrigerant{R1234ze(E) + R1336mzz(E)} at temperatures from 283.15 K to 313.15 K[J]. The Journal of Chemical Thermodynamics, 2023, 185: 107095.
23	Dong X Q, Gong M Q, Shen J, et al. Experimental measurement of vapor–liquid equilibrium for (trans-1, 3, 3, 3-tetrafluoropropene (R1234ze(E)) +propane (R290))[J]. International Journal of Refrigeration, 2011, 34(5): 1238-1243.
24	Dong X Q, Gong M Q, Shen J, et al. Vapor-liquid equilibria of the trans-1, 3, 3, 3-tetrafluoropropene (R1234ze(E)) + isobutane (R600a) system at various temperatures from (258.150 to 288.150) K[J]. Journal of Chemical & Engineering Data, 2012, 57(2): 541-544.
25	Zhang Z H, He G G, Yang W, et al. Measurement of vapor-liquid equilibrium for the binary system propene (R1270) + trans-1, 3, 3, 3-tetrafluoropropene (R1234ze(E)) at temperatures from 288.18 K to 318.18 K[J]. The Journal of Chemical Thermodynamics, 2023, 182: 107051.
26	Peng D Y, Robinson D B. A new two-constant equation of state[J]. Industrial & Engineering Chemistry Fundamentals, 1976, 15(1): 59-64.
27	Michelsen M L. A modified Huron-Vidal mixing rule for cubic equations of state[J]. Fluid Phase Equilibria, 1990, 60(1/2): 213-219.
28	Huron M J, Vidal J. New mixing rules in simple equations of state for representing vapour-liquid equilibria of strongly non-ideal mixtures[J]. Fluid Phase Equilibria, 1979, 3(4): 255-271.
29	Wong D S H, Sandler S I. A theoretically correct mixing rule for cubic equations of state[J]. AIChE Journal, 1992, 38(5): 671-680.
30	Renon H, Prausnitz J M. Local compositions in thermodynamic excess functions for liquid mixtures[J]. AIChE Journal, 1968, 14(1): 135-144.

测量温度/K	p_exp/MPa	p_ref/MPa	\|δp\|/MPa	\|δp/p_exp\|/%
253.15	2.5283	2.5284	0.0001	0.00
243.15	1.9367	1.9366	0.0001	0.01
233.15	1.4526	1.4521	0.0005	0.03
223.15	1.0624	1.0619	0.0005	0.05
213.15	0.7546	0.7541	0.0005	0.07

测量温度/K	p_exp/MPa	p_ref/MPa	\|δp\|/MPa	\|δp/p_exp\|/%
253.15	2.5283	2.5284	0.0001	0.00
243.15	1.9367	1.9366	0.0001	0.01
233.15	1.4526	1.4521	0.0005	0.03
223.15	1.0624	1.0619	0.0005	0.05
213.15	0.7546	0.7541	0.0005	0.07

测量温度/K	p_exp/MPa	p_ref/MPa	\|δp\|/MPa	\|δp/p_exp\|/%
273.15	0.2163	0.2166	0.0003	0.14
263.15	0.1475	0.1474	0.0001	0.07
253.15	0.0973	0.0969	0.0004	0.41
243.15	0.0616	0.0611	0.0005	0.82
233.15	0.0370	0.0367	0.0003	0.82
223.15	0.0213	0.0209	0.0004	1.91
213.15	0.0116	0.0111	0.0005	4.31

测量温度/K	p_exp/MPa	p_ref/MPa	\|δp\|/MPa	\|δp/p_exp\|/%
273.15	0.2163	0.2166	0.0003	0.14
263.15	0.1475	0.1474	0.0001	0.07
253.15	0.0973	0.0969	0.0004	0.41
243.15	0.0616	0.0611	0.0005	0.82
233.15	0.0370	0.0367	0.0003	0.82
223.15	0.0213	0.0209	0.0004	1.91
213.15	0.0116	0.0111	0.0005	4.31

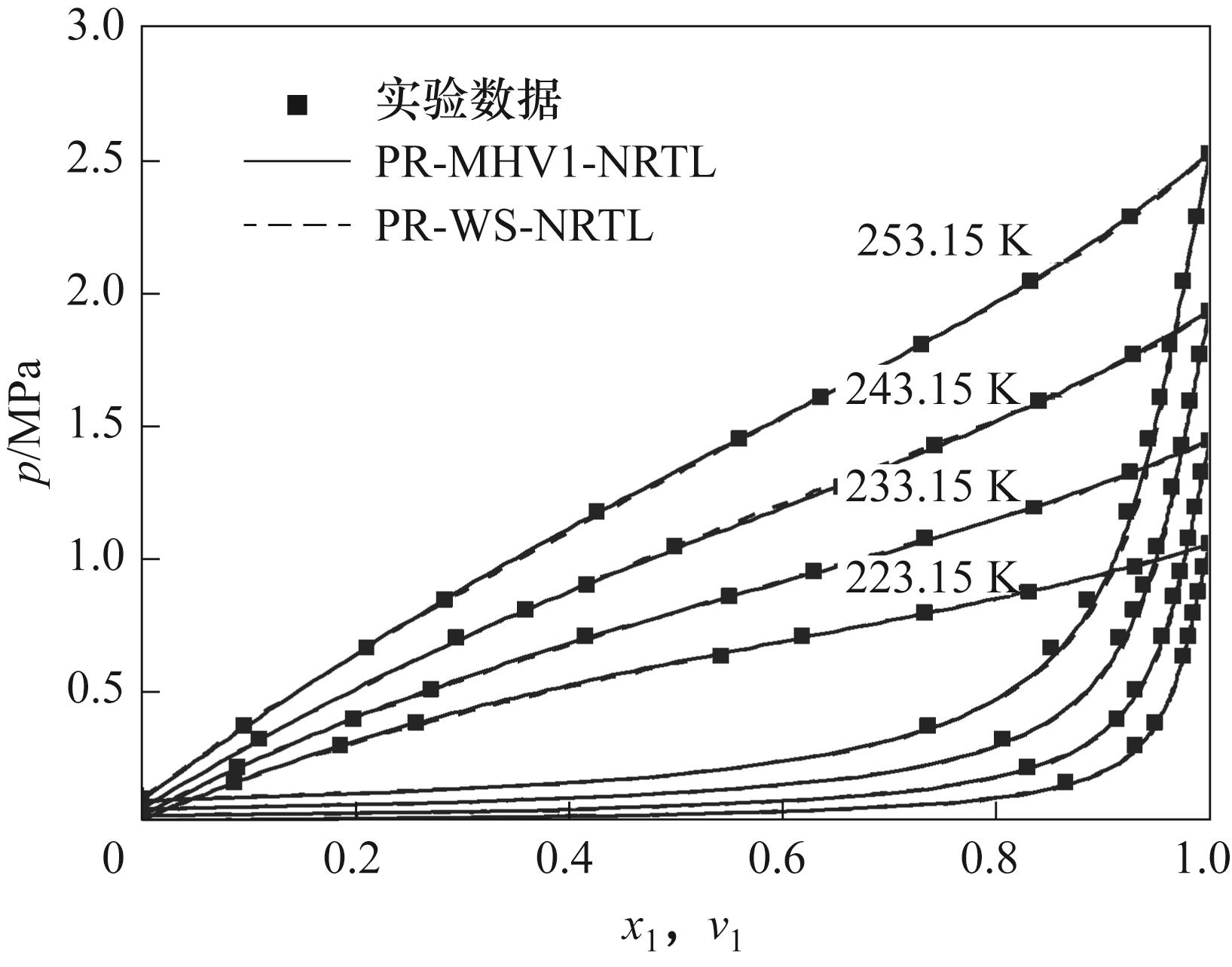

实验数据			模型计算值(PR-MHV1-NRTL)				模型计算值(PR-WS-NRTL)
x_1,exp	y_1,exp	p_exp/MPa	p_cal/MPa	y_1,cal	\|δp/p_exp\|/%	\|y_1,exp-y_1,cal\|	p_cal/MPa	y_1,cal	\|δp/p_exp\|/%	\|y_1,exp-y_1,cal\|
T=223.15 K
0	0	0.0213	0.0212	0	0.70	0	0.0212	0	0.70	0
0.0872	0.8656	0.1636	0.1640	0.8739	0.23	0.0083	0.1636	0.8743	0	0.0087
0.1859	0.9298	0.3012	0.3013	0.9341	0	0.0043	0.2968	0.9338	1.49	0.0040
0.2573	0.9489	0.3897	0.3867	0.9504	0.76	0.0015	0.3798	0.9502	2.54	0.0013
0.5427	0.9751	0.6404	0.6501	0.9758	1.50	0.0007	0.6478	0.9763	1.14	0.0012
0.6190	0.9795	0.7096	0.7096	0.9796	0	0.0001	0.7096	0.9801	0	0.0006
0.7337	0.9843	0.8007	0.8000	0.9850	0.10	0.0007	0.8006	0.9851	0.02	0.0008
0.8311	0.9890	0.8813	0.8834	0.9897	0.24	0.0007	0.8814	0.9894	0.02	0.0004
0.9297	0.9943	0.9760	0.9807	0.9953	0.48	0.0010	0.9765	0.9947	0.05	0.0004
1.0000	1.0000	1.0623	1.0617	1.0000	0.06	0	1.0617	1.0000	0.06	0
T=233.15 K
0	0	0.0371	0.0370	0	0.19	0	0.0370	0	0.19	0
0.0901	0.8299	0.2199	0.2171	0.8329	1.28	0.0030	0.2200	0.8358	0	0.0059
0.1980	0.9131	0.4006	0.4037	0.9134	0.75	0.0003	0.4015	0.9140	0.20	0.0009
0.2708	0.9305	0.5142	0.5142	0.9341	0	0.0036	0.5091	0.9346	0.99	0.0041
0.4157	0.9543	0.7102	0.7061	0.9558	0.58	0.0015	0.7020	0.9566	1.17	0.0023
0.5501	0.9663	0.8619	0.8630	0.9675	0.12	0.0012	0.8653	0.9686	0.39	0.0023
0.6293	0.9728	0.9550	0.9521	0.9731	0.31	0.0003	0.9574	0.9740	0.25	0.0012
0.7335	0.9793	1.0838	1.0723	0.9799	1.07	0.0006	1.0773	0.9802	0.61	0.0009
0.8353	0.9854	1.1997	1.2004	0.9868	0.05	0.0014	1.1998	0.9863	0	0.0009
0.9259	0.9927	1.3305	1.3305	0.9936	0	0.0009	1.3252	0.9927	0.40	0
1.0000	1.0000	1.4525	1.4535	1.0000	0.06	0	1.4535	1.0000	0.06	0
T=243.15 K
0	0	0.0616	0.0613	0	0.53	0	0.0613	0	0.53	0
0.1096	0.8069	0.3222	0.3222	0.8133	0	0.0064	0.3222	0.8151	0	0.0082
0.2950	0.9147	0.7061	0.6983	0.9191	1.10	0.0044	0.6959	0.9210	1.45	0.0063
0.3601	0.9282	0.8142	0.8142	0.9327	0	0.0045	0.8142	0.9349	0	0.0067
0.4174	0.9385	0.9082	0.9109	0.9417	0.29	0.0032	0.9144	0.9441	0.68	0.0056
0.4989	0.9508	1.0516	1.0420	0.9518	0.92	0.0010	1.0516	0.9543	0	0.0035
0.6554	0.9647	1.2761	1.2852	0.9667	0.72	0.0020	1.3016	0.9684	2.00	0.0037
0.7423	0.9731	1.4337	1.4249	0.9741	0.61	0.0010	1.4375	0.9749	0.27	0.0018
0.8406	0.9814	1.6012	1.5974	0.9828	0.24	0.0014	1.5992	0.9823	0.13	0.0009
0.9294	0.9905	1.7747	1.7761	0.9917	0.08	0.0012	1.7695	0.9906	0.29	0.0001
1.0000	1.0000	1.9372	1.9414	1.0000	0.22	0	1.9414	1.0000	0.22	0
T=253.15 K
0	0	0.0970	0.0968	0	0.16	0	0.0968	0	0.16	0
0.0956	0.7370	0.3768	0.3690	0.7396	2.07	0.0026	0.3768	0.7462	0	0.0092
0.2106	0.8509	0.6707	0.6732	0.8608	0.38	0.0099	0.6721	0.8627	0.20	0.0118
0.2833	0.8855	0.8524	0.8524	0.8925	0	0.0070	0.8448	0.8939	0.89	0.0084
0.4262	0.9227	1.1801	1.1778	0.9268	0.20	0.0041	1.1670	0.9287	1.11	0.0060
0.5597	0.9434	1.4537	1.4587	0.9459	0.34	0.0025	1.4552	0.9482	0.10	0.0048
0.6349	0.9528	1.6135	1.6135	0.9545	0	0.0017	1.6143	0.9566	0.05	0.0038
T=253.15 K
0.7295	0.9631	1.8147	1.8131	0.9646	0.09	0.0015	1.8147	0.9660	0	0.0029
0.8321	0.9748	2.0518	2.0492	0.9759	0.13	0.0011	2.0435	0.9760	0.40	0.0012
0.9262	0.9870	2.2968	2.3013	0.9880	0.20	0.0010	2.2892	0.9871	0.33	0.0001
1.0000	1.0000	2.5283	2.5386	1.0000	0.41	0	2.5386	1.0000	0.41	0
