Effect of preparation conditions on low-temperature co-removal of COS and CS2 from modified calcium carbide slag

doi:10.11949/0438-1157.20241329

Abstract

Abstract:

Carbonyl sulfide (COS) and carbon disulfide (CS₂) often coexist in sulfur-containing pollutants in the iron and steel industry, and their joint removal is of great significance to the development of the industry and environmental protection. Different metal-and alkali-modified calcium carbide slags were prepared by ultrasound-assisted impregnation for the simultaneous removal of COS and CS₂ at low temperatures. The effects of different active components, calcination temperatures, and the content of the active components on the simultaneous removal of COS and CS₂ from the modified calcium carbide slag were investigated. The slags were characterized by XRD, N₂-BET, XPS, FTIR and TG-DTA to explore their removal mechanism. The results showed that the modified carbide slag prepared at a roasting temperature of 750℃ and an active component of 6.25%(mass) KOH has the best catalytic hydrolysis effect, and the total sulfur capacity reaches 180.68 mg/g. In the process of the modified calcium carbide slag in the co-degradation of COS and CS₂, the loaded KOH provided the —OH group for the catalytic hydrolysis, and a portion of the hydrolysis product, part of the hydrolysis product hydrogen sulfide (H₂S) further undergoes oxidation reaction, and part of it combines with metal ions and eventually generates sulfate and metal sulfide to achieve sulfur fixation. In summary, this study provides theoretical support for the high value-added resource utilization of calcium carbide slag and the development of efficient catalytic hydrolysis agents for COS and CS₂.

Key words: preparation, carbide slag, carbonyl sulfide, carbon disulfide, catalysis, hydrolysis

摘要：

羰基硫（COS）和二硫化碳（CS₂）常共存于钢铁行业的含硫污染物中。通过超声辅助浸渍法制备不同改性电石渣用于低温下共脱除COS和CS₂，研究不同活性组分、组分含量及煅烧温度对改性电石渣共脱除COS和CS₂的影响，借助XRD、N₂-BET、XPS、FTIR和TG-DTA等方法进行表征，以探究其脱除机理。结果表明，当焙烧温度为750℃、活性组分为6.25%（质量分数）KOH时制备的改性电石渣催化水解效果最佳，总硫容达到180.68 mg/g；在共脱除COS和CS₂的过程中，负载的KOH为催化水解提供—OH基团，水解产物硫化氢（H₂S）一部分进一步发生氧化反应，一部分与金属离子结合，并最终生成硫酸盐和金属硫化物达到固硫作用。本文可为电石渣的高附加值资源化利用、COS和CS₂高效催化水解剂的开发提供理论支撑。

关键词: 制备, 电石渣, 羰基硫, 二硫化碳, 催化, 水解

CLC Number:

X 781.2

Yinxiang TANG, Feng ZHU, Yingying FAN, Yuxin LONG, Yong DAI, Chunling DENG, Xiaofeng HUANG. Effect of preparation conditions on low-temperature co-removal of COS and CS₂ from modified calcium carbide slag[J]. CIESC Journal, 2025, 76(7): 3639-3650.

唐银香, 朱风, 范莹莹, 龙雨欣, 代雍, 邓春玲, 黄小凤. 制备条件对改性电石渣低温共脱除COS和CS₂的影响[J]. 化工学报, 2025, 76(7): 3639-3650.

Figures/Tables 19

Fig.1 Main flow of modified calcium carbide slag preparation

Fig.2 Flow chart of the experimental setup

Table 1 Chemical composition of calcium carbide slag

化学组成	质量分数/%
CaO	84.825
SiO₂	3.079
Al₂O₃	1.904
Cl^-	0.655
SO₃	0.567
Na₂O	0.142
Fe₂O₃	0.130

Fig.3 XRD pattern of calcium carbide slag

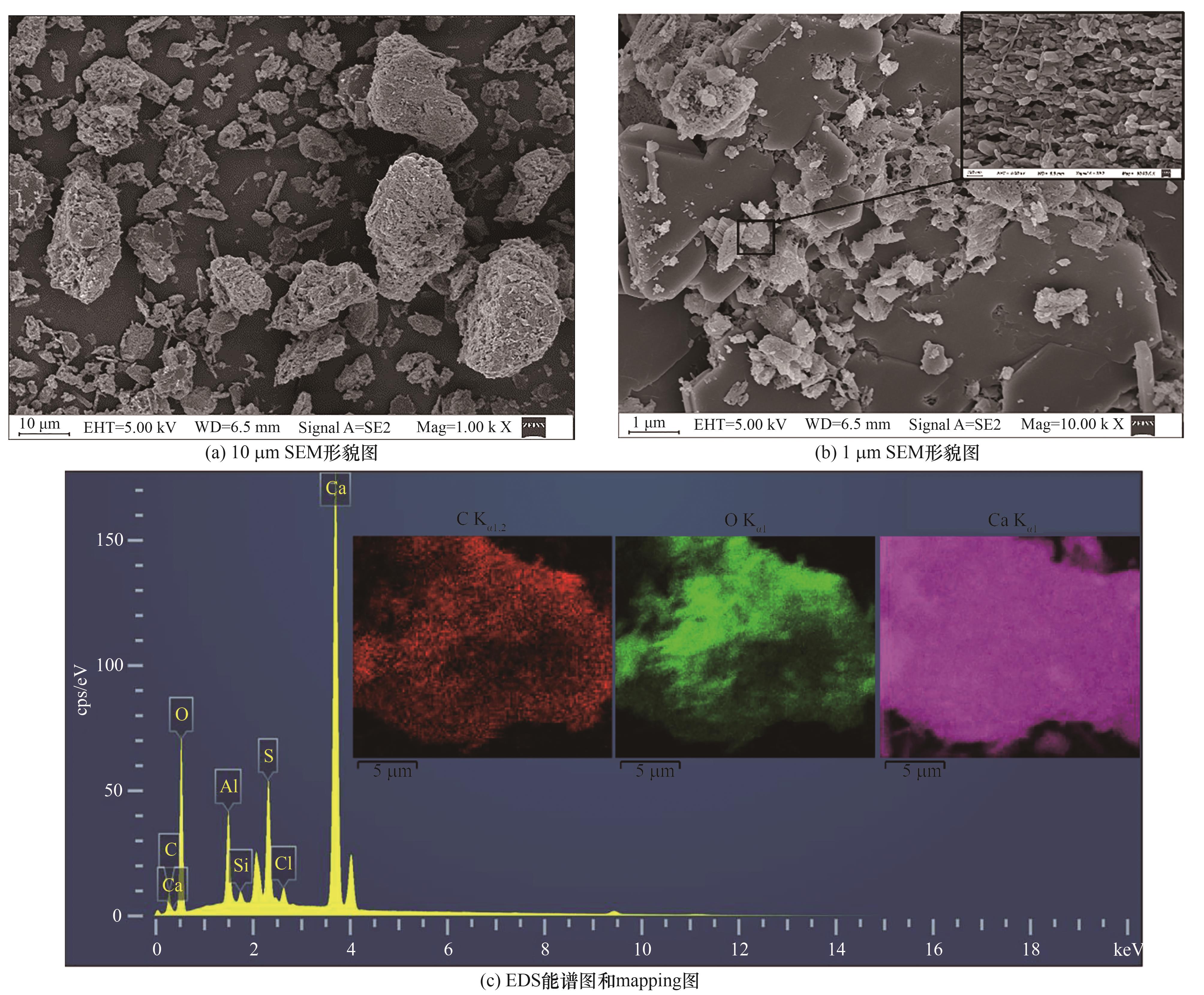

Fig.4 SEM-EDS surface scanning analysis of calcium carbide slag

Fig.5 TG-DTA curve of calcium carbide slag

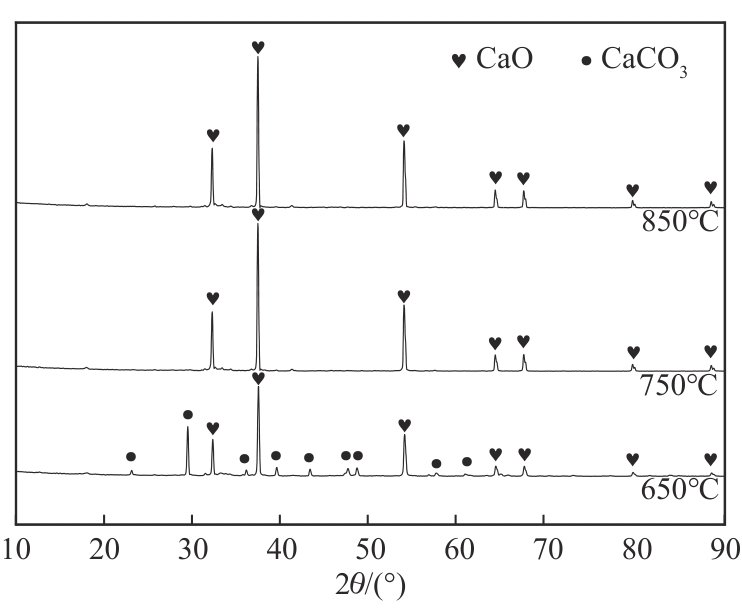

Fig.6 XRD patterns of calcium carbide slag at different roasting temperatures

Fig.7 Simultaneous removal of COS and CS2 by KOH-modified roasted and unroasted calcium carbide slag

Table 2 Penetration time and penetration sulfur capacity of modified calcium carbide slag for simultaneous removal of COS and CS2

样品	COS穿透时间/min	CS₂穿透时间/min	COS穿透硫容/(mg/g)	CS₂穿透硫容/(mg/g)	总硫容/(mg/g)
改性未焙烧电石渣	636	31	41.96	0.19	42.15
改性焙烧电石渣	1744	56	180.18	0.50	180.68

Fig.8 Simultaneous removal of COS and CS2 and H2S export from modified calcium carbide slag with different metal species

Fig.9 Simultaneous removal of COS and CS2 by NaOH and KOH modified calcium carbide slag

Table 3 Penetration time and penetration sulfur capacity of NaOH and KOH modified calcium carbide slag for simultaneous removal of COS and CS2

样品	COS穿透时间/min	CS₂穿透时间/min	COS穿透硫容/(mg/g)	CS₂穿透硫容/(mg/g)	总硫容/(mg/g)
NaOH改性电石渣	60	12	6.44	0.12	6.56
KOH改性电石渣	1744	56	180.18	0.50	180.68

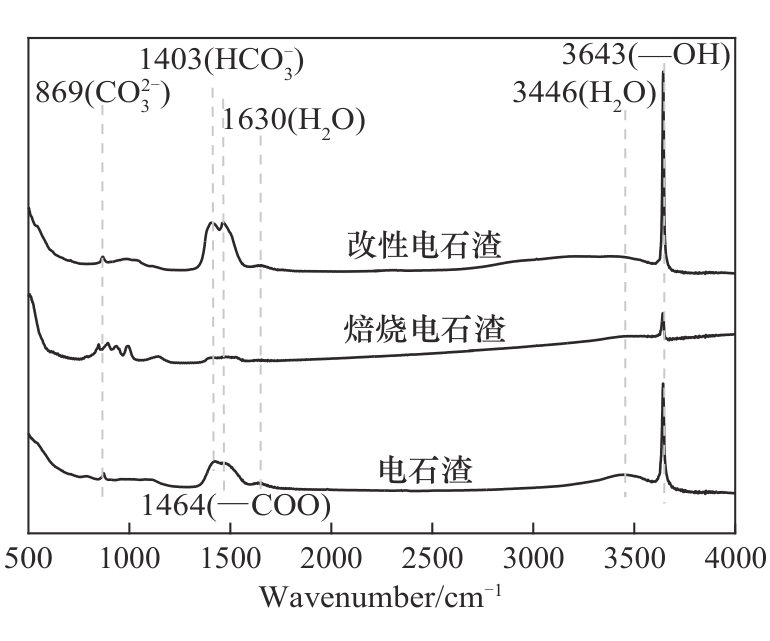

Fig.10 Infrared spectra of calcium carbide slag, roasted calcium carbide slag, and modified calcium carbide slag

Fig.11 Simultaneous removal of COS and CS2 by modified calcium carbide slag with different KOH contents

Table 4 Penetration time and penetration sulfur capacity for simultaneous removal of COS and CS2 from modified calcium carbide slag with different KOH contents

KOH含量/%（质量分数）	COS穿透时间/min	CS₂穿透时间/min	COS穿透硫容/(mg/g)	CS₂穿透硫容/(mg/g)
0	2	5	0.10	0.02
2.50	540	25	70.51	0.33
3.75	600	26	80.53	0.34
6.25	1744	56	180.18	0.50
8.75	640	151	89.21	2.07

Fig.12 Effect of KOH content on sulfur capacity

Table 5 Specific surface area of modified calcium carbide slag with different KOH content

KOH含量/%（质量分数）	比表面积/(m²/g)
0	1.68
2.50	4.87
3.75	4.53
6.25	4.27
8.75	3.19

Fig.13 Nitrogen adsorption isotherms and pore size distribution curves for roasted and modified calcium carbide slag

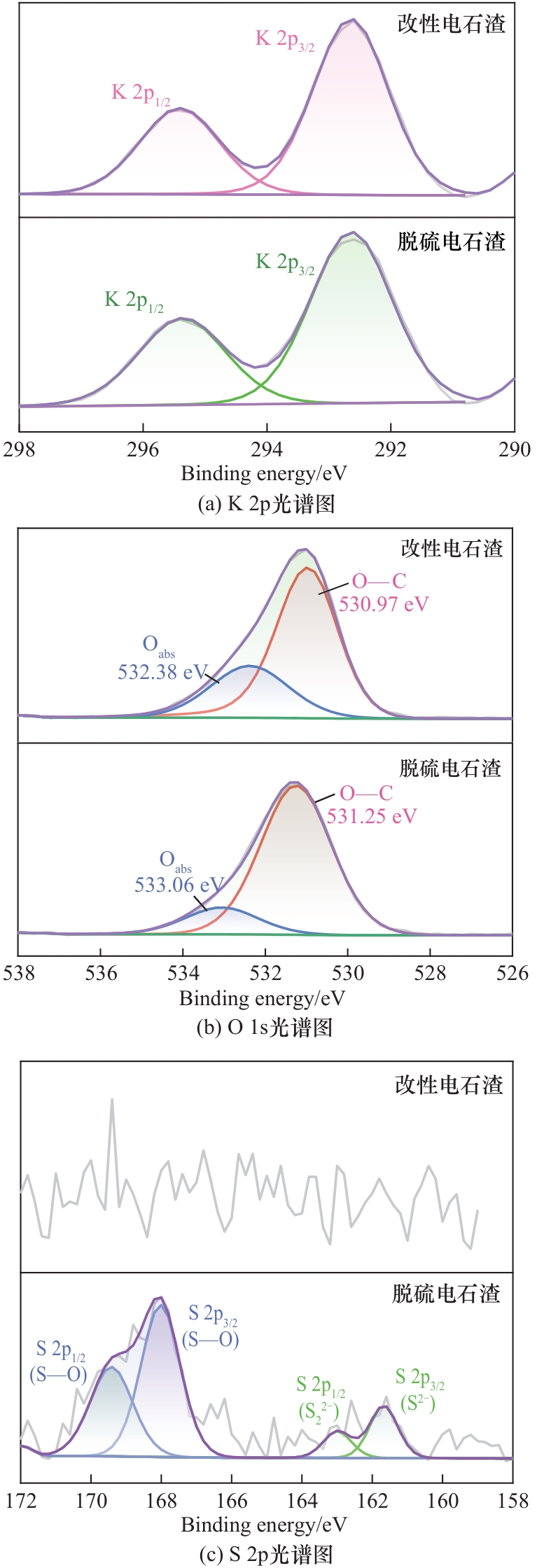

Fig.14 K 2p, O 1s and S 2p spectra of modified calcium carbide slag before and after its use for desulfurization

References 38

[1]	Xiong Y X, Wang H X, Ren J, et al. Carbide slag recycling to fabricate shape-stable phase change composites for thermal energy storage[J]. Journal of Energy Storage, 2023, 60: 106694.
[2]	张亚斌, 苏杨, 张慧荣, 等. 钢渣、电石渣增强硫化砷渣稳定化/固化机制[J]. 化工学报, 2024, 75(7): 2656-2669.
	Zhang Y B, Su Y, Zhang H R, et al. Mechanism of enhanced arsenic sulfide stabilization/solidification by using steel slag and carbide slag[J]. CIESC Journal, 2024, 75(7): 2656-2669.
[3]	高文英. 含碱工业废弃物脱硫性能实验研究[D]. 济南: 山东大学, 2007.
	Gao W Y. Experimental study on the desulphurization characteristics of the alkaliferous industry wastes[D]. Jinan: Shandong University, 2007.
[4]	Wang F, Li H, Gao J Y, et al. Treating waste with waste: facile KHCO 3 - modified calcium carbide slag for simultaneous removal of NO and SO₂ [J]. Fuel, 2023, 351: 128967.
[5]	朱风, 陈凯琳, 黄小凤, 等. KOH改性电石渣脱除羰基硫的性能研究[J]. 化工学报, 2023, 74(6): 2668-2679.
	Zhu F, Chen K L, Huang X F, et al. Performance study of KOH modified carbide slag for removal of carbonyl sulfide[J]. CIESC Journal, 2023, 74(6): 2668-2679.
[6]	González Fá A J, Orazi V, Jasen P, et al. Adsorption of carbonyl sulfide on Pt-doped vacancy-defected SWCNT: a DFT study[J]. Applied Surface Science, 2020, 525: 146331.
[7]	刘娜, 宁平, 李凯, 等. HCN、COS和CS₂催化水解及其水解产物协同净化的研究进展[J]. 化工进展, 2018, 37(1): 301-310.
	Liu N, Ning P, Li K, et al. Research progress in catalytic hydrolysis of HCN, COS and CS₂ and synergetic purification of hydrolysates[J]. Chemical Industry and Engineering Progress, 2018, 37(1): 301-310.
[8]	梁键星, 李咸伟, 刘道清, 等. 协同催化水解羰基硫和二硫化碳的低温催化剂的研究进展[J]. 材料导报, 2021, 35(21): 21028-21036.
	Liang J X, Li X W, Liu D Q, et al. A review of catalysts with activities for simultaneous hydrolyses of carbonyl sulfide and carbon disulfide at low temperatures[J]. Materials Reports, 2021, 35(21): 21028-21036.
[9]	Gu J N, Liang J X, Hu S J, et al. Enhanced removal of COS from blast furnace gas via catalytic hydrolysis over Al₂O₃-based catalysts: insight into the role of alkali metal hydroxide[J]. Separation and Purification Technology, 2022, 295: 121356.
[10]	Wang F, Chen H Y, Sun X, et al. Single atom Fe in favor of carbon disulfide (CS₂) adsorption and thus the removal efficiency[J]. Separation and Purification Technology, 2021, 258(P2): 118086.
[11]	Zhang J L, Li B C, Zhang W L, et al. Preparation of copper-based catalysts by ultrasonic co-impregnation to catalyze the hydrogenation of sec-butyl acetate[J]. Journal of Dispersion Science and Technology, 2020, 41(3): 338-347.
[12]	唐兆吉, 姜艳, 杨占林, 等. 浸渍方式对Mo-Ni/γ-Al₂O₃加氢处理催化剂性能的影响[J]. 现代化工, 2017, 37(7): 105-108, 110.
	Tang Z G, Jiang Y, Yang Z L, et al. Influence of impregnation method on the performance of Mo-Ni/γ-Al₂O₃ hydrotreating catalyst[J]. Modern Chemical Industry, 2017, 37(7): 105-108, 110.
[13]	Bandosz T J. Effect of pore structure and surface chemistry of virgin activated carbons on removal of hydrogen sulfide[J]. Carbon, 1999, 37(3): 483-491.
[14]	Ma W P, Zhu G Y, Li H Q, et al. Carbon emission free preparation of calcium hydroxide with calcium carbide slag (CCS) through micro-bubble impurities removal[J]. Journal of Cleaner Production, 2023, 423: 138669.
[15]	董永刚, 曹建新, 刘飞, 等. 电石渣理化性质的分析与表征[J]. 环境科学与技术, 2008, 31(9): 95-98.
	Dong Y G, Cao J X, Liu F, et al. Analysis and characterization of physiochemical property of carbide slag[J]. Environmental Science & Technology, 2008, 31(9): 95-98.
[16]	Ishizuka T, Tsuchiai H, Murayama T, et al. Preparation of active absorbent for dry-type flue gas desulfurization from calcium oxide, coal fly ash, and gypsum[J]. Industrial & Engineering Chemistry Research, 2000, 39(5): 1390-1396.
[17]	Guo F S, Li S R, Hou Y D, et al. Metalated carbon nitrides as base catalysts for efficient catalytic hydrolysis of carbonyl sulfide[J]. Chemical Communications, 2019, 55(75): 11259-11262.
[18]	Zhao S Z, Kang D J, Liu Y P, et al. Spontaneous formation of asymmetric oxygen vacancies in transition-metal-doped CeO₂ nanorods with improved activity for carbonyl sulfide hydrolysis[J]. ACS Catalysis, 2020, 10(20): 11739-11750.
[19]	Rodríguez J, Remesal E, Ramírez P, et al. Water-gas shift reaction on K/Cu(111) and Cu/K/TiO₂(110) surfaces: alkali promotion of water dissociation and production of H₂ [J]. ACS Catalysis, 2019, 9(12): 10751-10760.
[20]	Wang B N, Wang X Z, Yang S, et al. Research progress on catalysts for organic sulfur hydrolysis: review of activity and stability[J]. Chinese Journal of Chemical Engineering, 2024, 71: 203-216.
[21]	赖君玲, 赖晓晨, 柳叶, 等. 干水和碱性干碱的制备及催化水解COS的研究[J]. 石油化工高等学校学报, 2017, 30(5): 12-16.
	Lai J L, Lai X C, Liu Y, et al. Preparation of dry water and dry bases for catalytic hydrolysis of carbonyl sulfide[J]. Journal of Petrochemical Universities, 2017, 30(5): 12-16.
[22]	何贞泉, 田森林, 张秋林, 等. 前驱体对Cu/Al₂O₃的HCN催化水解性能的影响[J]. 环境工程学报, 2016, 10(9): 5044-5050.
	He Z Q, Tian S L, Zhang Q L, et al. Influence of precursors on catalytic hydrolysis performance of Cu/Al₂O₃ catalyst toward HCN[J]. Chinese Journal of Environmental Engineering, 2016, 10(9): 5044-5050.
[23]	Yi H H, He D, Tang X L, et al. Effects of preparation conditions for active carbon-based catalyst on catalytic hydrolysis of carbon disulfide[J]. Fuel, 2012, 97: 337-343.
[24]	Li K L, Wang C, Ning P, et al. Surface characterization of metal oxides-supported activated carbon fiber catalysts for simultaneous catalytic hydrolysis of carbonyl sulfide and carbon disulfide[J]. Journal of Environmental Sciences, 2020, 96: 44-54.
[25]	Li X, Wang X Q, Wang L L, et al. Efficient removal of carbonyl sulfur and hydrogen sulfide from blast furnace gas by one-step catalytic process with modified activated carbon[J]. Applied Surface Science, 2022, 579: 152189.
[26]	翁诗甫. 傅里叶变换红外光谱分析[M]. 2版. 北京: 化学工业出版社, 2010.
	Weng S F. Fourier Transform Infrared Spectrum Analysis[M]. 2nd ed. Beijing: Chemical Industry Press, 2010.
[27]	Tanpure S, Ghanwat V, Shinde B, et al. The eggshell waste transformed green and efficient synthesis of K-Ca(OH)₂ catalyst for room temperature synthesis of chalcones[J]. Polycyclic Aromatic Compounds, 2022, 42(4): 1322-1340.
[28]	马铭宇, 王超, 李运甲, 等. 高炉煤气中羰基硫水解吸附催化剂的制备及性能研究[J]. 化工学报, 2022, 73(1): 275-283.
	Ma M Y, Wang C, Li Y J, et al. Preparation and performance study of catalyst for COS hydrolysis and adsorption in blast furnace gas[J]. CIESC Journal, 2022, 73(1): 275-283.
[29]	刘霜, 齐天勤机, 张永春. KOH改性活性炭及其对微量乙烷的吸附性能[J]. 现代化工, 2019, 39(3): 176-180.
	Liu S, Qi T Q J, Zhang Y C. KOH modified activated carbon and its adsorption performance to trace ethane[J]. Modern Chemical Industry, 2019, 39(3): 176-180.
[30]	Song X, Li K, Wang C, et al. Regeneration performance and mechanism of modified walnut shell biochar catalyst for low temperature catalytic hydrolysis of organic sulfur[J]. Chemical Engineering Journal, 2017, 330: 727-735.
[31]	Wang X, Li Y J, Zhang W, et al. Simultaneous SO₂ and NO removal by pellets made of carbide slag and coal char in a bubbling fluidized-bed reactor[J]. Process Safety and Environmental Protection, 2020, 134: 83-94.
[32]	元宁, 李嘉, 张晋玲, 等. 煤气化灰渣制备活性炭及其CO₂吸附分离研究[J/OL]. 洁净煤技术, .
	Yuan N, Li J, Zhang J L, et al. Preparation of activated carbon from coal gasification slag and its CO₂ adsorption and separation performance[J/OL]. Clean Coal Technology, .
[33]	Yamada T, Okigawa Y, Hasegawa M. Potassium-doped n-type bilayer graphene[J]. Applied Physics Letters, 2018, 112(4): 043105.
[34]	Liang J X, Xue Y X, Gu J N, et al. Sustainably recycling spent lithium-ion batteries to prepare magnetically separable cobalt ferrite for catalytic degradation of bisphenol A via peroxymonosulfate activation[J]. Journal of Hazardous Materials, 2022, 427: 127910.
[35]	Pan Y K, Chen M Q, Su Z, et al. Two-dimensional CaO/carbon heterostructures with unprecedented catalytic performance in room-temperature H₂S oxidization[J]. Applied Catalysis B: Environmental, 2021, 280: 119444.
[36]	黄俊, 刘羿良, 吴鹏, 等. TiAl基羰基硫水解催化剂的中毒机制与抗氧性能研究[J]. 化工学报, 2022, 73(10): 4461-4471.
	Huang J, Liu Y L, Wu P, et al. Poisoning mechanism and antioxidant performance of TiAl-based carbonyl sulfur hydrolysis catalyst[J]. CIESC Journal, 2022, 73(10): 4461-4471.
[37]	王广建, 田爱秀, 陈晓婷, 等. COS水解催化剂及其脱硫机理研究进展[J]. 炼油技术与工程, 2017, 47(9): 37-40.
	Wang G J, Tian A X, Chen X T, et al. Study on COS hydrolysis catalyst and its desulfurization mechanisms[J]. Petroleum Refinery Engineering, 2017, 47(9): 37-40.
[38]	Wang Y, Zhang G J, Shi X, et al. New insights in the hydrolysis mechanism of carbon disulfide (CS₂): a density functional study[J]. Structural Chemistry, 2023, 34(1): 71-82.
