滴状冷凝的液滴分布特性

doi:10.11949/0438-1157.20240552

摘要/Abstract

摘要：

作为一种高效的传热形式，蒸汽冷凝有效应用于石油化工、火电核电、海水淡化及热能管理等工业领域，具有广泛的应用背景，其中研究液滴分布特性是分析液滴演变及传热过程的关键。基于成核、生长、脱落等液滴行为演变构建了滴状冷凝全过程演变及传热数学模型，总结演变进程中最大液滴的位置分布规律和不同尺寸液滴的数量分布规律，展示了竖直及弯曲疏水壁面上的液滴分布特性，为冷凝强化换热提供相应的理论依据。

关键词: 滴状冷凝, 液滴分布, 最大液滴, 传热, 凝结, 数值模拟

Abstract:

As a highly efficient form of heat transfer, steam condensation is effectively used in a wide range of applications in industrial fields such as petrochemical, thermal and nuclear power, desalination and thermal energy management, and has a wide range of application backgrounds. Among them, the study of droplet distribution characteristics is the key to analyze the droplet evolution and heat transfer process. In this paper, based on the evolution of droplet behavior such as nucleation, growth, shedding, etc., a mathematical model of the whole process of droplet condensation evolution and heat transfer is constructed, and the positional distribution law of the largest droplet and the number distribution law of droplets of different sizes in the process of evolution are summarized to show the characteristics of the distribution of droplets on the vertical and curved hydrophobic wall, which provides corresponding theoretical basis for the enhancement of heat transfer in condensation.

Key words: dropwise condensation, droplet distribution, maximum droplet, heat transfer, condensate, numerical simulation

中图分类号:

TK 124

赵亮, 张梦妍, 果正龙, 郭亚丽, 龚路远, 沈胜强. 滴状冷凝的液滴分布特性[J]. 化工学报, 2024, 75(12): 4490-4500.

Liang ZHAO, Mengyan ZHANG, Zhenglong GUO, Yali GUO, Luyuan GONG, Shengqiang SHEN. Droplet distribution characteristics of dropwise condensation[J]. CIESC Journal, 2024, 75(12): 4490-4500.

图/表 13

图1 不同疏水壁面上的滴状冷凝

Fig.1 Drop condensation on different hydrophobic wall surfaces

图2 液滴合并判断示意图

Fig.2 Schematic diagram of droplet merging judgment

图3 液滴脱落及清扫示意图

Fig.3 Droplet shedding and cleaning diagram

表1 模拟的基础参数

Table 1 Basic parameters of simulation

冷凝工况及表面性质	数值
表面过冷度ΔT/K	1
水蒸气饱和温度T_sat/K	359.08
表面张力系数σ/(N·m^-1)	0.0616
冷凝水密度ρ/(kg·m^-3)	968
冷凝水潜热H_fg/(J·kg^-1)	2.293×10⁶
疏水涂层厚度δ/mm	0.01
水热导率k_w/(W·m^-1·K^-1)	0.6707
气液界面传热系数h_i/(W·m^-2·K^-1)	106
疏水膜热导率k_δ/(W·m^-1·K^-1)	1000

图4 数值模拟与理论模型的液滴尺寸分布对比

Fig.4 Comparison of droplet size distribution between numerical simulation and theoretical model

图5 数值模拟与实验的最大液滴尺寸对比

Fig.5 Comparison of maximum droplet size between numerical simulation and experiment

图6 滴状冷凝演变进程中液滴尺寸与壁面换热对照

Fig.6 Comparison of droplet size and wall heat transfer in evolution process of dropwise condensation

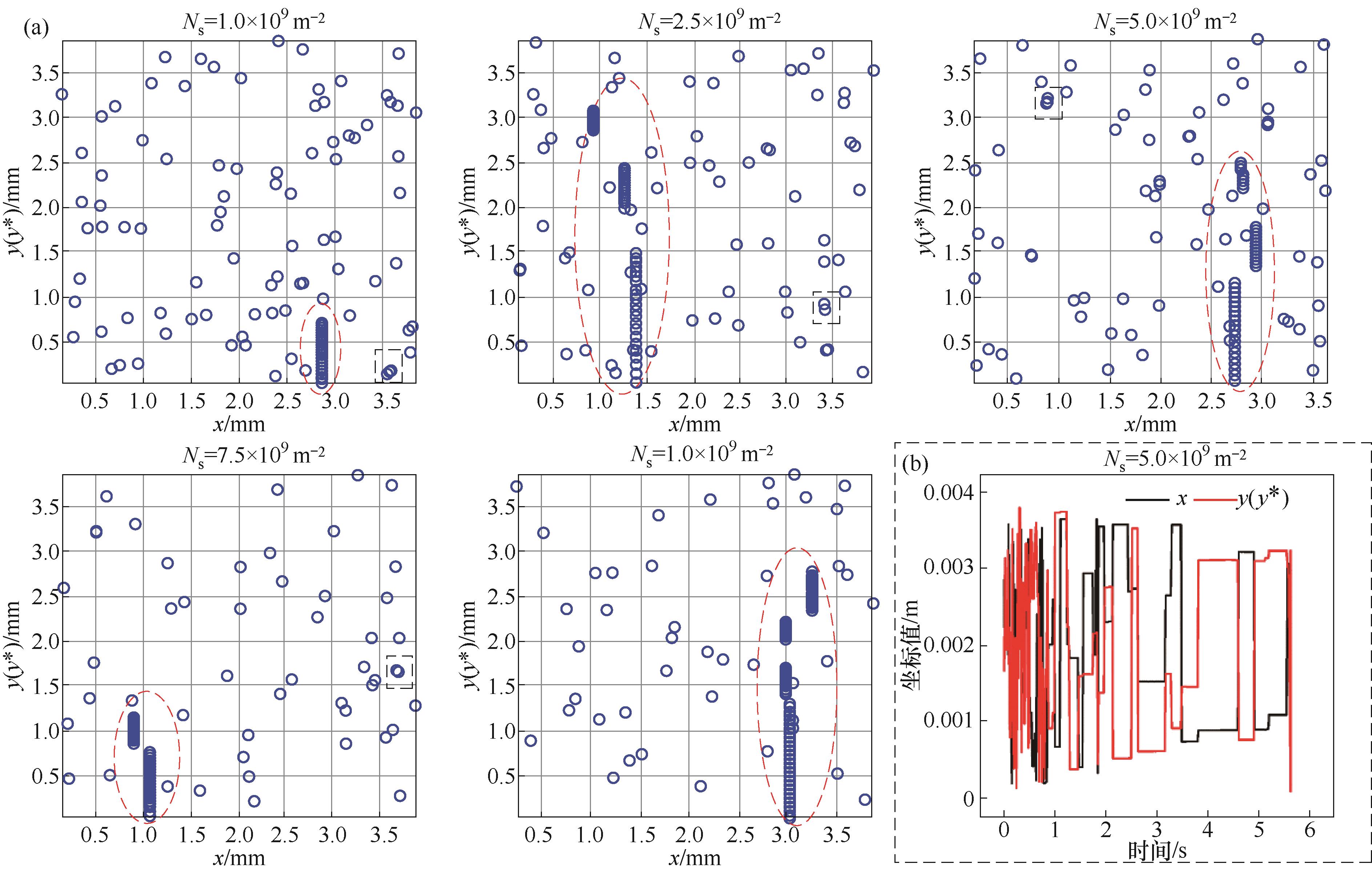

图7 不同凝结核密度滴状冷凝演变进程中的最大液滴位置分布(a)和坐标变化(b)

Fig.7 Maximum droplet positional distribution during evolution of dropwise condensation with different condensation nuclei densities (a) and coordinate change (b)

图8 不同尺寸液滴的传热效果及模拟区域内凝结液滴的理想数量

Fig.8 Heat transfer effect of droplets and ideal number in simulation region with different sizes

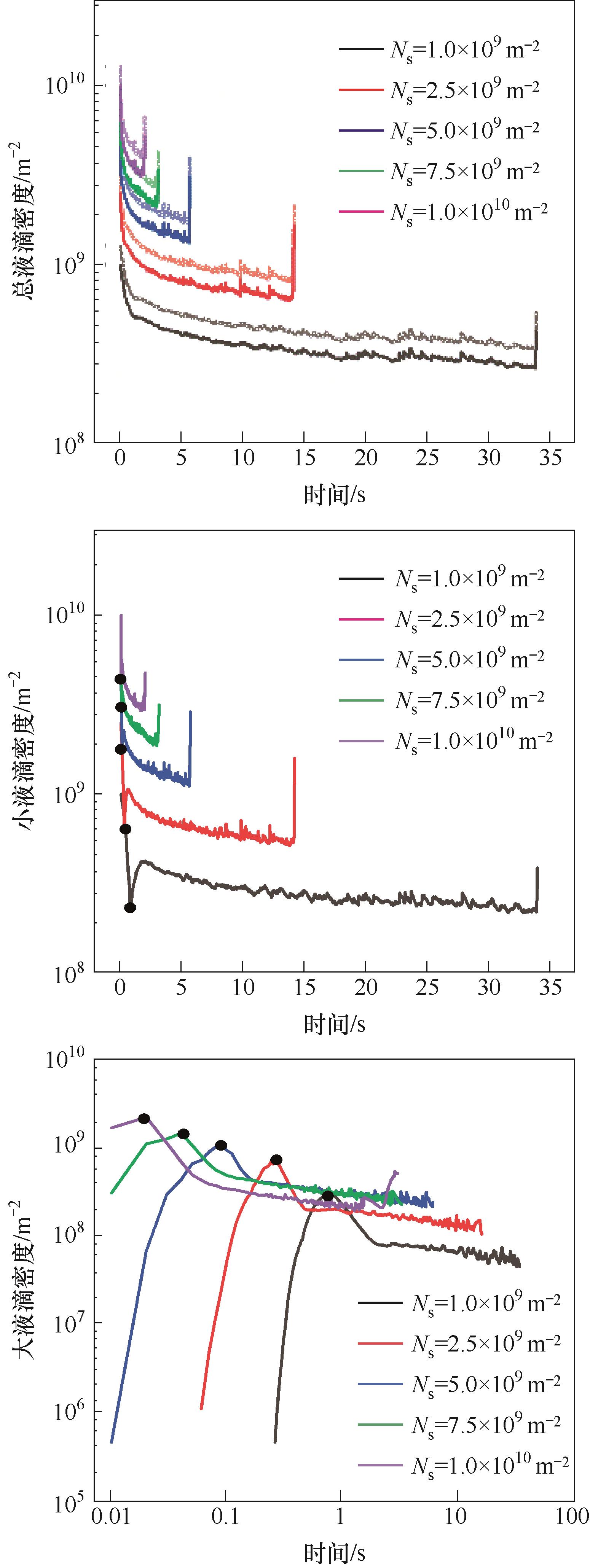

图9 不同凝结核密度滴状冷凝演变进程中的不同尺寸液滴密度对比

Fig.9 Density comparison of sub-size droplets in evolution process of dropwise condensation with different condensation nuclei density

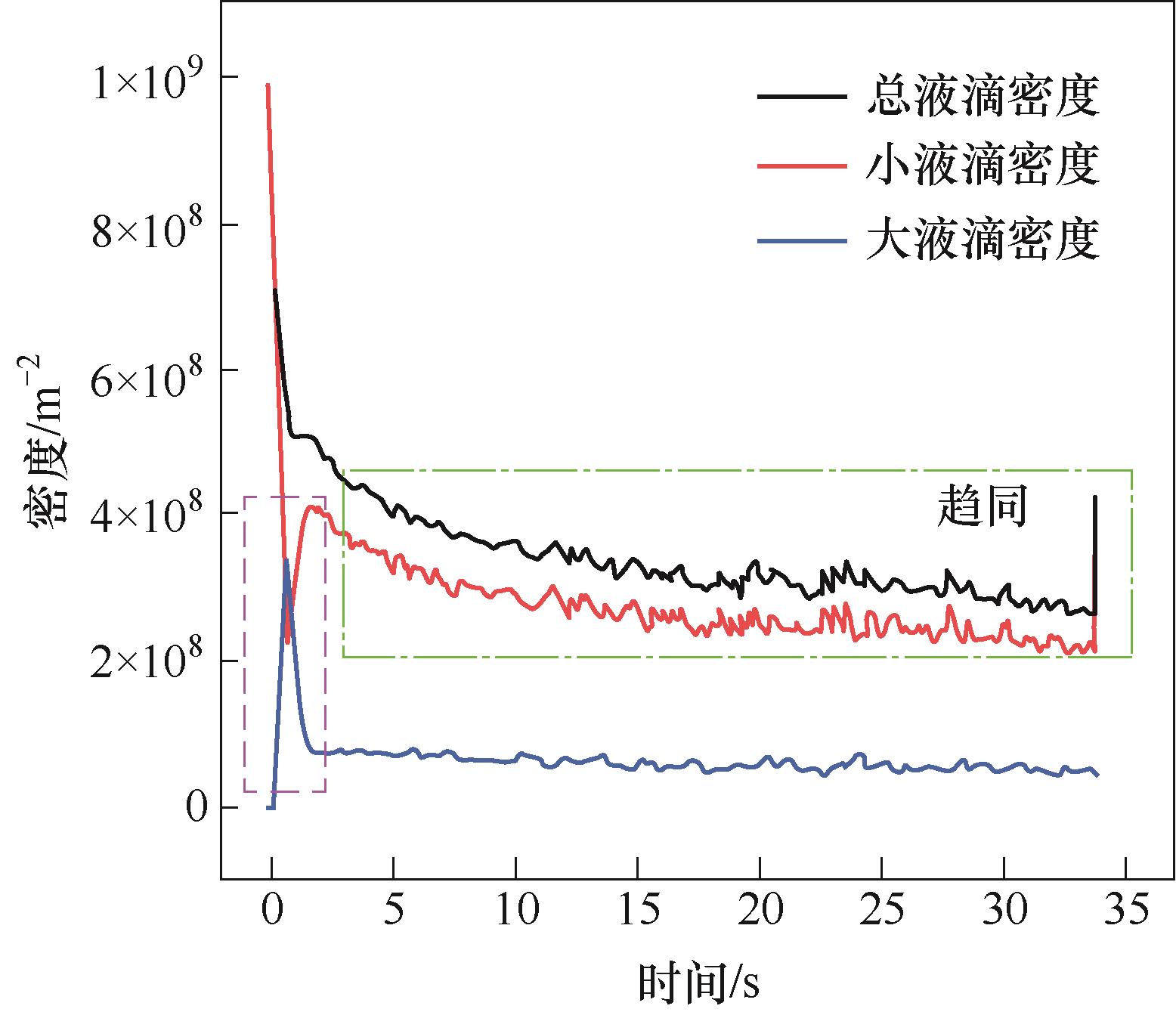

图10 滴状冷凝演变进程中不同尺寸液滴的密度变化

Fig.10 Density change of sub-size droplets during evolution of dropwise condensation

图11 不同壁面滴状冷凝演变进程中最大液滴的空间分布、尺寸变化和传热特性

Fig.11 Spatial distribution, size change and heat transfer characteristics of the largest droplet during the evolution of dropwise condensation on different walls

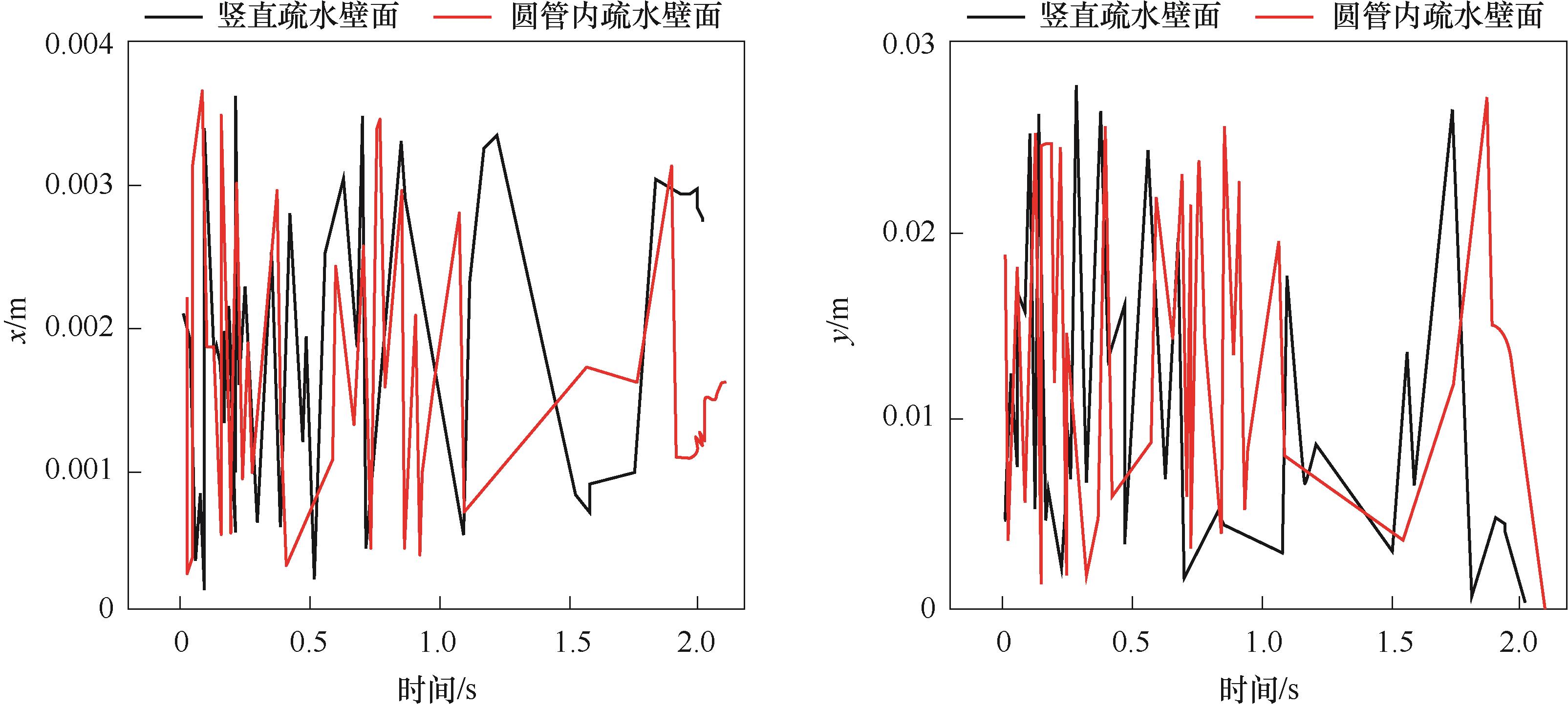

图12 不同壁面上滴状冷凝演变进程中的最大液滴位置的坐标变化

Fig.12 Coordinate change of maximum droplet position during evolution of dropwise condensation on different walls

参考文献 31

1	唐桂华, 胡浩威, 牛东, 等. 蒸汽珠状冷凝传热的研究进展[J]. 科学通报, 2020, 65(17): 1653-1676.
	Tang G H, Hu H W, Niu D, et al. Advances in vapor dropwise condensation heat transfer[J]. Chinese Science Bulletin, 2020, 65(17): 1653-1676.
2	Rose J W. Dropwise condensation theory and experiment: a review[J]. Proceedings of the Institution of Mechanical Engineers, Part A: Journal of Power and Energy, 2002, 216(2): 115-128.
3	陈宁光, 甘云华. 基于格子Boltzmann方法的荷电液滴蒸发及传热研究[J]. 化工学报, 2023, 74(12): 4829-4839.
	Chen N G, Gan Y H. Study on evaporation and heat transfer of charged sessile droplet based on lattice Boltzmann method[J]. CIESC Journal, 2023, 74(12): 4829-4839.
4	Lo C W, Wang C C, Lu M C. Spatial control of heterogeneous nucleation on the superhydrophobic nanowire array[J]. Advanced Functional Materials, 2014, 24(9): 1211-1217.
5	周兴东, 马学虎, 兰忠, 等. 滴状冷凝强化含不凝气的蒸气冷凝传热机制[J]. 化工学报, 2007, 58(7): 1619-1625.
	Zhou X D, Ma X H, Lan Z, et al. Mechanism of dropwise condensation heat transfer enhancement in presence of non-condensable gas[J]. Journal of Chemical Industry and Engineering(China), 2007, 58(7): 1619-1625.
6	Ma X H, Rose J W, Xu D Q, et al. Advances in dropwise condensation heat transfer: Chinese research[J]. Chemical Engineering Journal, 2000, 78(2/3): 87-93.
7	Schmidt E, Schurig W, Sellschopp W. Versuche über die kondensation von wasserdampf in film- und tropfenform[J]. Technische mechanik und thermodynamik, 1930, 1: 53–63.
8	Gose E E, Mucciardi A N, Baer E. Model for dropwise condensation on randomly distributed sites[J]. International Journal of Heat and Mass Transfer, 1967, 10(1): 15-22.
9	Chen J C. Surface contact—its significance for multiphase heat transfer: diverse examples[J]. Journal of Heat Transfer, 2003, 125(4): 549-566.
10	Rose J W, Glicksman L R. Dropwise condensation—the distribution of drop sizes[J]. International Journal of Heat and Mass Transfer, 1973, 16(2): 411-425.
11	Tanaka H. A theoretical study of dropwise condensation[J]. Journal of Heat Transfer, 1975, 97(1): 72-78.
12	Kim S, Kim K J. Dropwise condensation modeling suitable for superhydrophobic surfaces[J]. Journal of Heat Transfer, 2011, 133(8): 081502.
13	Graham C, Griffith P. Drop size distributions and heat transfer in dropwise condensation[J]. International Journal of Heat and Mass Transfer, 1973, 16(2): 337-346.
14	Xie J, Xu J L, Shang W, et al. Dropwise condensation on superhydrophobic nanostructure surface, part Ⅱ: Mathematical model[J]. International Journal of Heat and Mass Transfer, 2018, 127: 1170-1187.
15	Grooten M H M, van der Geld C W M. Surface property effects on dropwise condensation heat transfer from flowing air-steam mixtures to promote drainage[J]. International Journal of Thermal Sciences, 2012, 54: 220-229.
16	赵崇岩, 颜笑, 黄志勇, 等. 滴状凝结全过程液滴尺寸分布数值模拟[J]. 工程热物理学报, 2020, 41(6): 1485-1490.
	Zhao C Y, Yan X, Huang Z Y, et al. Numerical simulation of droplet size distribution in the whole process of dropwise condensation[J]. Journal of Engineering Thermophysics, 2020, 41(6): 1485-1490.
17	Peng B L, Ma X H, Lan Z, et al. Analysis of condensation heat transfer enhancement with dropwise-filmwise hybrid surface: droplet sizes effect[J]. International Journal of Heat and Mass Transfer, 2014, 77: 785-794.
18	Peng B L, Ma X H, Lan Z, et al. Experimental investigation on steam condensation heat transfer enhancement with vertically patterned hydrophobic-hydrophilic hybrid surfaces[J]. International Journal of Heat and Mass Transfer, 2015, 83: 27-38.
19	刘天庆, 穆春丰, 夏松柏, 等. 滴状冷凝初始液滴的形成机理[J]. 化工学报, 2007, 58(4): 821-828.
	Liu T Q, Mu C F, Xia S B, et al. Mechanism of initial droplet formation in dropwise condensation[J]. Journal of Chemical Industry and Engineering(China), 2007, 58(4): 821-828.
20	Glicksman L R, Hunt A W. Numerical simulation of dropwise condensation[J]. International Journal of Heat and Mass Transfer, 1972, 15(11): 2251-2269.
21	赵崇岩, 陈凤, 闫贺, 等. 超疏水表面弹跳凝结液滴尺寸分布模拟[J]. 工程热物理学报, 2020, 41(11): 2782-2787.
	Zhao C Y, Chen F, Yan H, et al. Numerical simulation of droplet size distribution for jumping condensation on the superhydrophobic surface[J]. Journal of Engineering Thermophysics, 2020, 41(11): 2782-2787.
22	Miljkovic N, Enright R, Wang E N. Modeling and optimization of superhydrophobic condensation[J]. Journal of Heat Transfer, 2013, 135(11): 111004.
23	Shang Y H, Hou Y M, Yu M, et al. Modeling and optimization of condensation heat transfer at biphilic interface[J]. International Journal of Heat and Mass Transfer, 2018, 122: 117-127.
24	Abu-Orabi M. Modeling of heat transfer in dropwise condensation[J]. International Journal of Heat and Mass Transfer, 1998, 41(1): 81-87.
25	Farokhirad S, Morris J F, Lee T. Coalescence-induced jumping of droplet: inertia and viscosity effects[J]. Physics of Fluids, 2015, 27(10): 102102.
26	Xu W, Lan Z, Liu Q C, et al. Droplet size distributions in dropwise condensation heat transfer: consideration of droplet overlapping and multiple re-nucleation[J]. International Journal of Heat and Mass Transfer, 2018, 127: 44-54.
27	Sikarwar B S, Khandekar S, Agrawal S, et al. Dropwise condensation studies on multiple scales[J]. Heat Transfer Engineering, 2012, 33(4/5): 301-341.
28	Burnside B M, Hadi H A. Digital computer simulation of dropwise condensation from equilibrium droplet to detectable size[J]. International Journal of Heat and Mass Transfer, 1999, 42(16): 3137-3146.
29	Cassie A B D, Baxter S. Wettability of porous surfaces[J]. Transactions of the Faraday Society, 1944, 40: 546-551.
30	齐宝金, 张莉, 徐宏, 等. 引入接触角的滴状冷凝分形传热功当量模型[J]. 高校化学工程学报, 2011, 25(5): 751-758.
	Qi B J, Zhang L, Xu H, et al. Contact angle affected fractal model of dropwise condensation heat transfer[J]. Journal of Chemical Engineering of Chinese Universities, 2011, 25(5): 751-758.
31	Bahal S, Sharma C S. Modeling dropwise condensation on hydrophobic microgrooved surface[J]. Langmuir, 2023, 39(50): 18486-18498.
